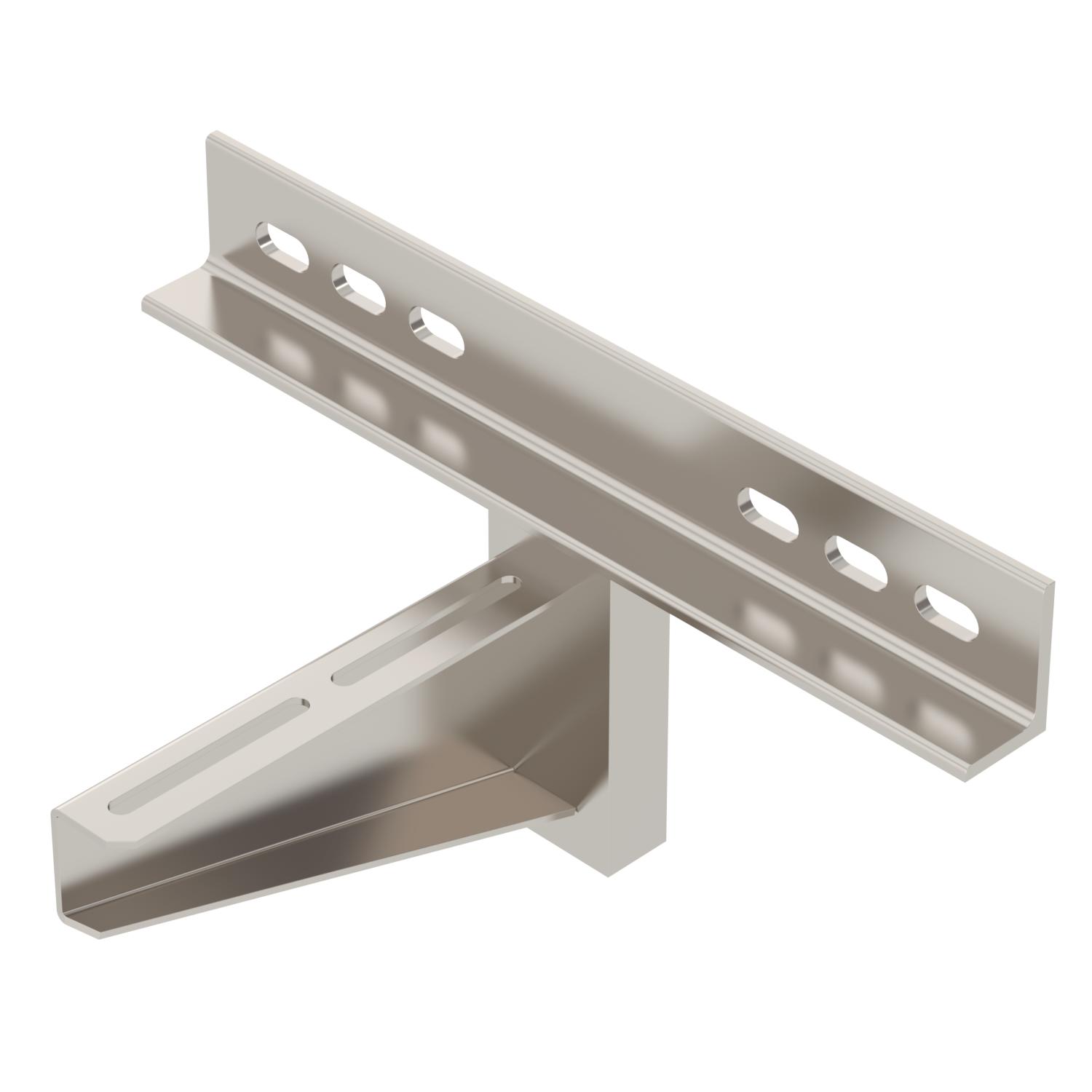

AWSS A4 wall and clamping bracket
Item no. 6417971 | EAN 4012196803934
- Product description
-
Product description
Wall bracket, heavy-duty.
-
- Technical data
-
Technical data
Dimension B210mm Dimension A 400 mm Dimension B 210 mm Dimension b 160 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 200 mm F in kN 10 kN Height 200 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled no Surface Bright, treated Version for Wall brackets Width 210 mm Technical data
Load diagram, bracket type AWSS
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A4
FRSB 6x12 A4 6406142 100 piece - Downloads
-
Data sheet AWSS 21 A4 / 6417971 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity AWSS 21 A4 / 6417971 , 0.13MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
