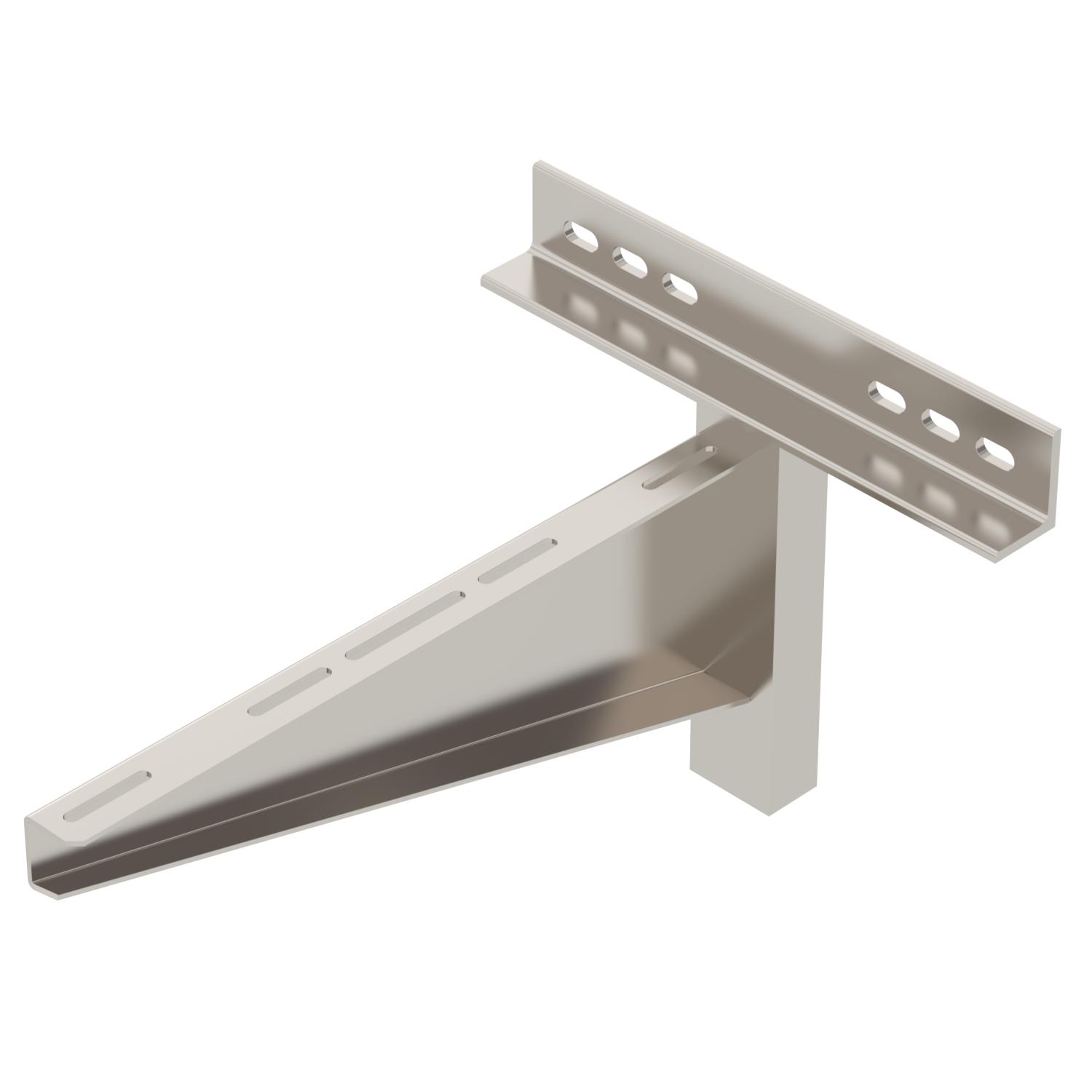

AWSS A4 wall and clamping bracket

Item no. 6417977 | EAN 4012196803965

10 kN
Product description
Product description
Wall bracket, heavy-duty.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wall and support brackets
Technical data

Technical data

Colour stainless steel
Dimension B510mm
Dimension A 400 mm
Dimension b 160 mm
Dimension B 510 mm
Dimension b1 240 mm
Dimension b2 320 mm
Dimension H 335 mm
F in kN 10 kN
Height 335 mm
Hole diameter 14 mm
Length 400 mm
Maintain electrical functions no
Material Stainless steel
Rustproof steel, pickled no
Surface Bright, treated
Version for Wall brackets
Width 510 mm

Technical data

Load diagram, bracket type AWSS

Load diagram, bracket type AWSS
  • Bending of the bracket tip at permitted bracket load Bending of the bracket tip at permitted bracket load
  • Permitted bracket load in kN without man load Permitted bracket load in kN without man load
  • Load curve with bracket lengths in mm Load curve with bracket lengths in mm
All types

All types

Types Width F in kN Item no. Quantity SSU
AWSS 21 A4 210 mm 10 kN 6417971
1 piece
AWSS 31 A4 310 mm 10 kN 6417973
1 piece
AWSS 41 A4 410 mm 10 kN 6417975
1 piece
AWSS 51 A4 510 mm 10 kN 6417977
1 piece
AWSS 61 A4 610 mm 10 kN 6417979
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A4 Truss-head bolt with flange nut A4 FRSB 6x12 A4 6406142
100 piece
Downloads

Download

EU declaration of conformity AWSS 51 A4 / 6417977 , 0.13MB , pdf
Download

Download

Download

AWSS 51 A4 / 6417977
