AZ small duct 200 A2
Item no. 6075355 | EAN 4012195811206
- Product description
-

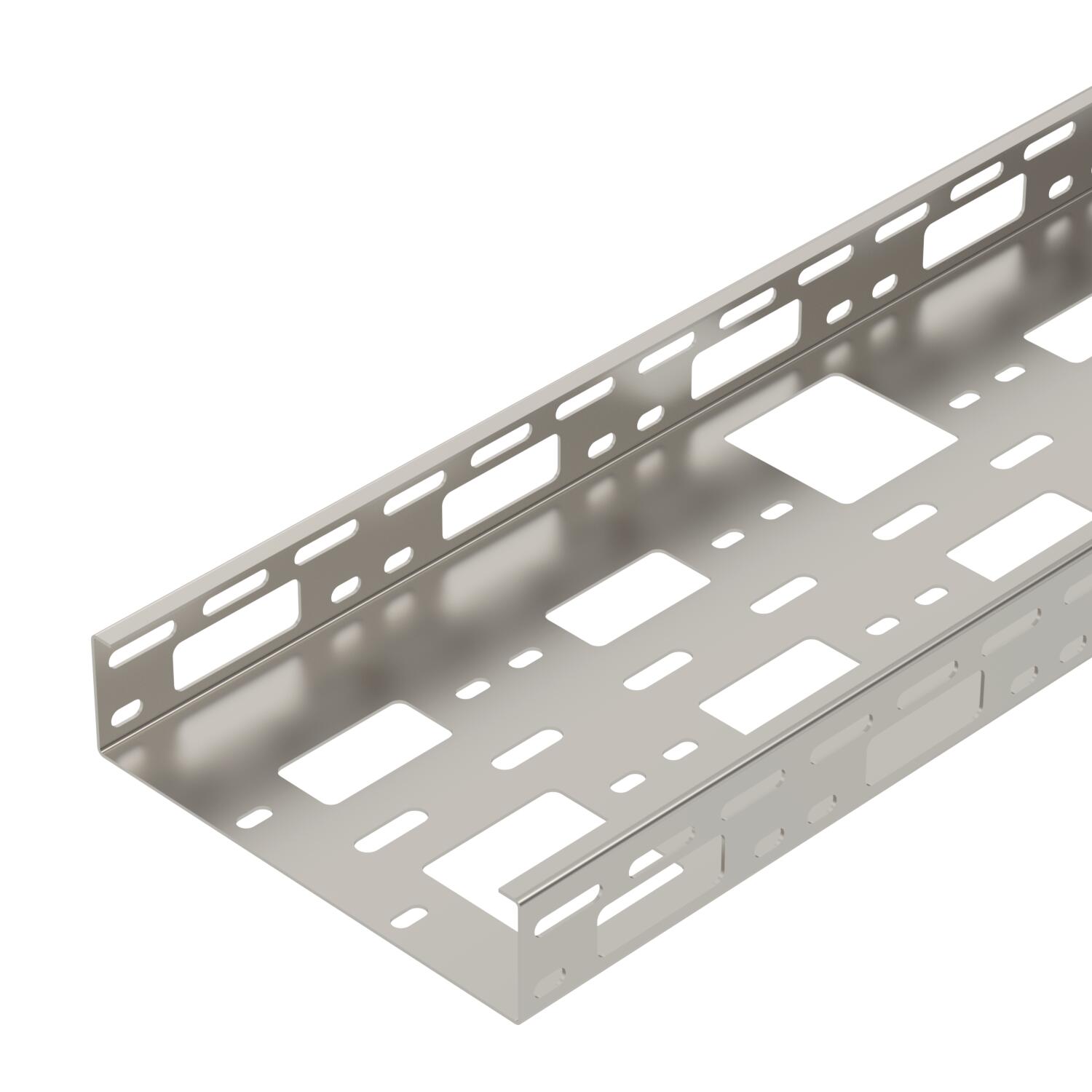

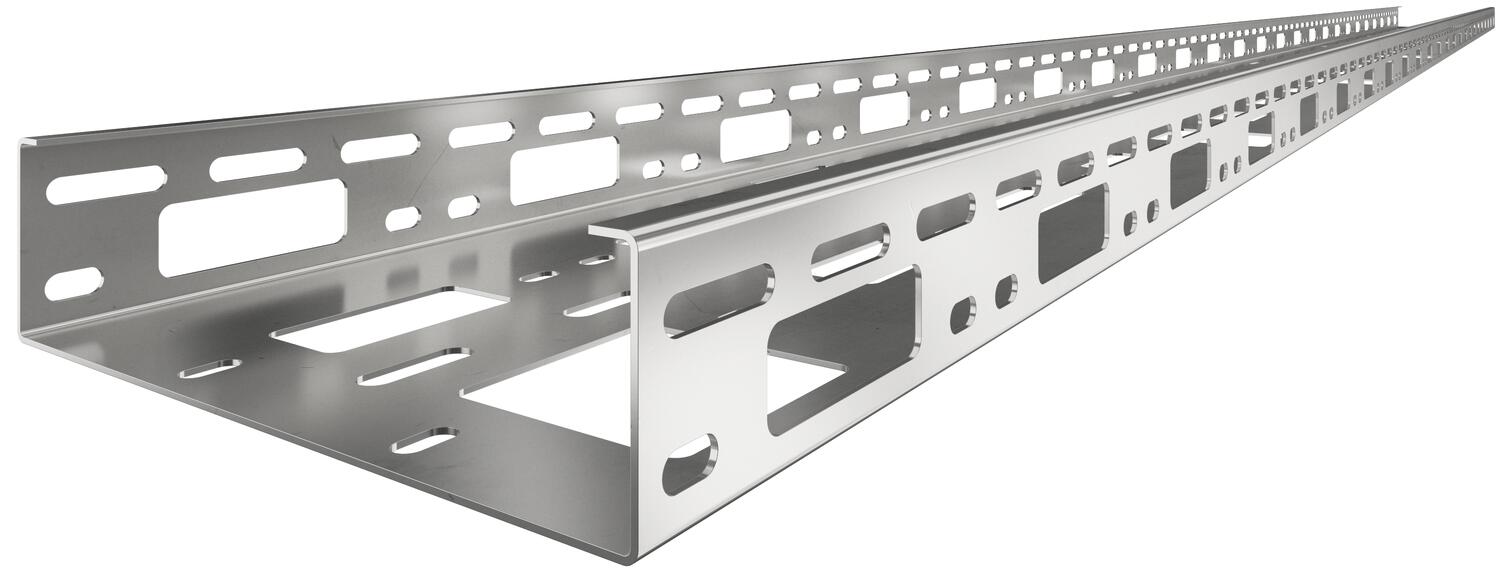

Product descriptionAZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

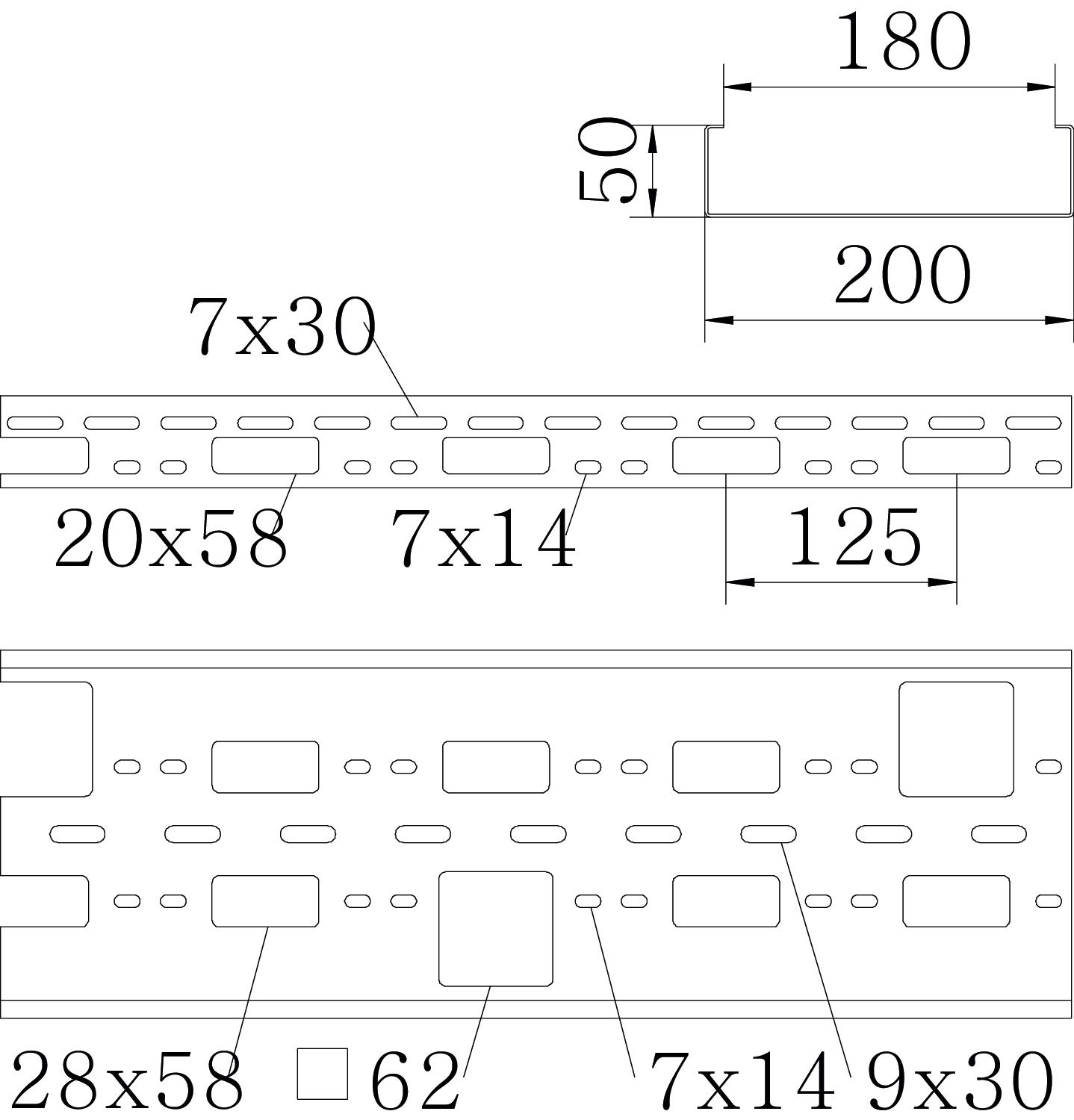

Colour stainless steel Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 17,911 kg CO₂e / 1 Meter Dimension 50x200x1,5 Dimension 50x200x3000 Dimension B 200 mm Height 50 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 2,5 kN/m Support spacing 1.5 m 1,9 kN/m Support spacing 2.0 m 1,3 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,3 kN/m Surface Bright, treated Usable cross-section 10000 mm² Usable cross-section 100 cm² Wide-span version no Width 200 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight and angle connector A2
VF AZK A2 6066569 10 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece
Cover with turn buckle A2
AZDMD 200 A2 6080895 3 m - Downloads
-
