AZ small duct 300 FT
Item no. 6075375 | EAN 4012195811251
- Product description
-

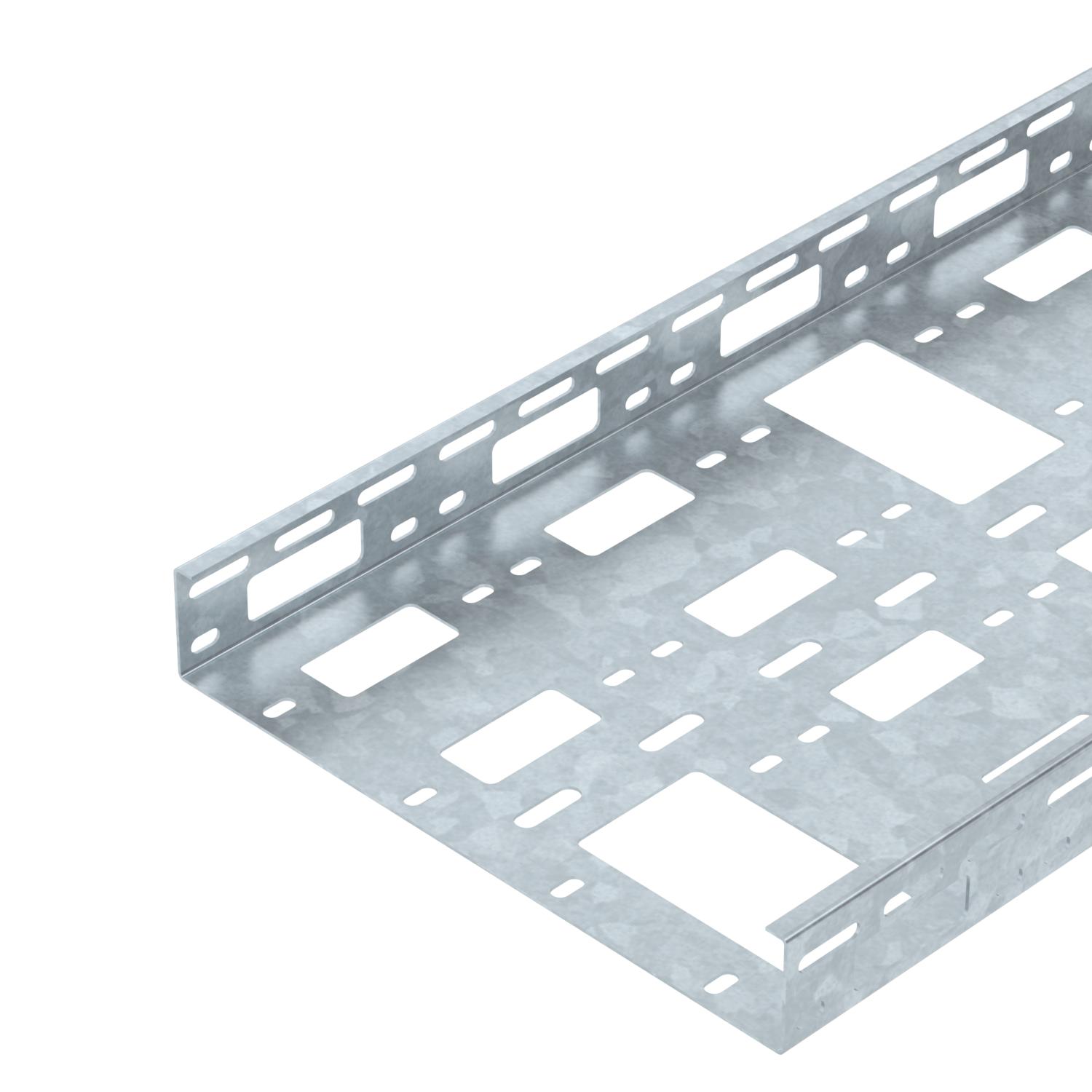

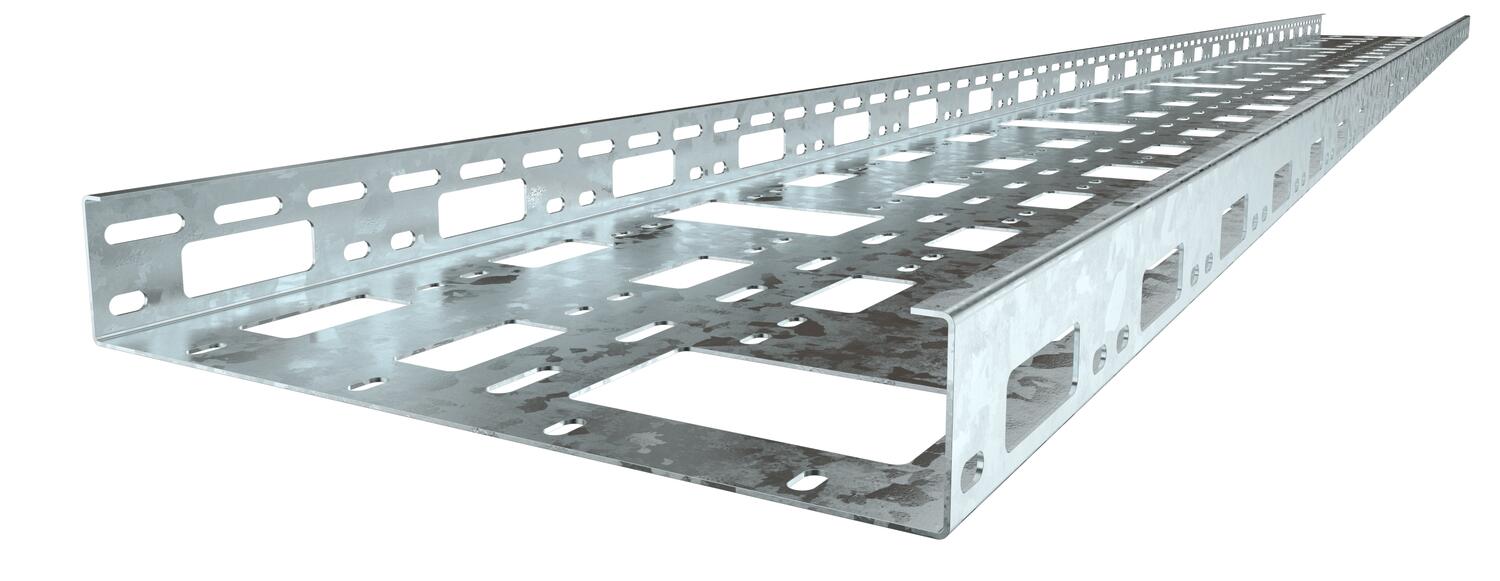

Product descriptionAZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

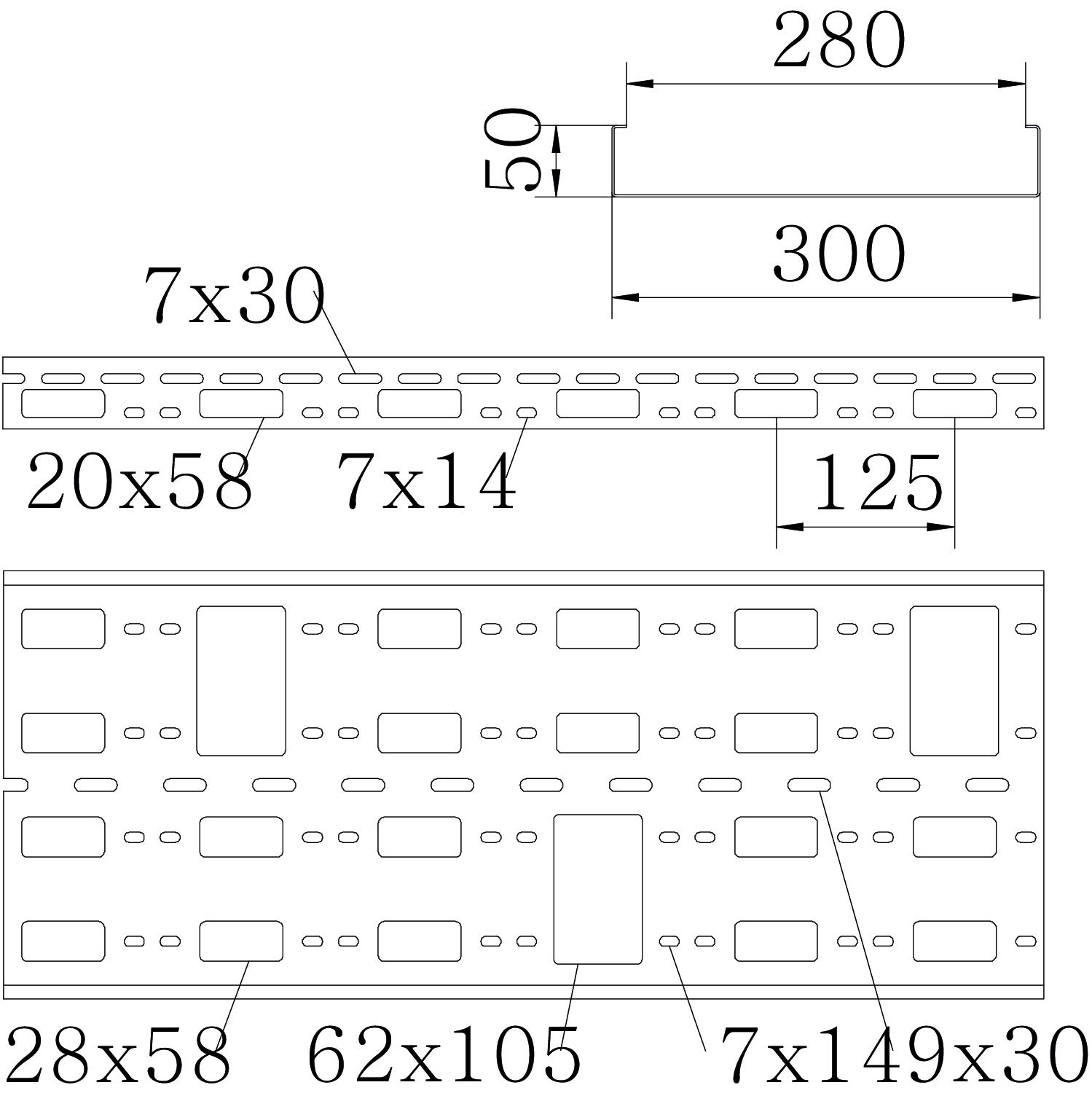

Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 10,415 kg CO₂e / 1 Meter Dimension 50x300x3000 Dimension 50x300x1,5 Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,9 kN/m Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 1,2 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,3 kN/m Surface Hot-dip galvanised Usable cross-section 15000 mm² Usable cross-section 150 cm² Wide-span version no Width 300 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight and angle connector 50 FT
VF AZK FT 6066550 25 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece
Cover with turn buckle FT
AZDMD 300 FT 6080915 3 m - Downloads
-
Data sheet AZK 300 FT / 6075375 , 0.33MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AZK 300 FT / 6075375 , 0.13MB , pdfREACH Declaration of conformity AZK 300 FT / 6075375 , 0.12MB , pdfRoHS Declaration of conformity AZK 300 FT / 6075375 , 0.12MB , pdfLabel approval UL certificate AZ small duct , 0.26MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions Modular systems , 0.05MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
