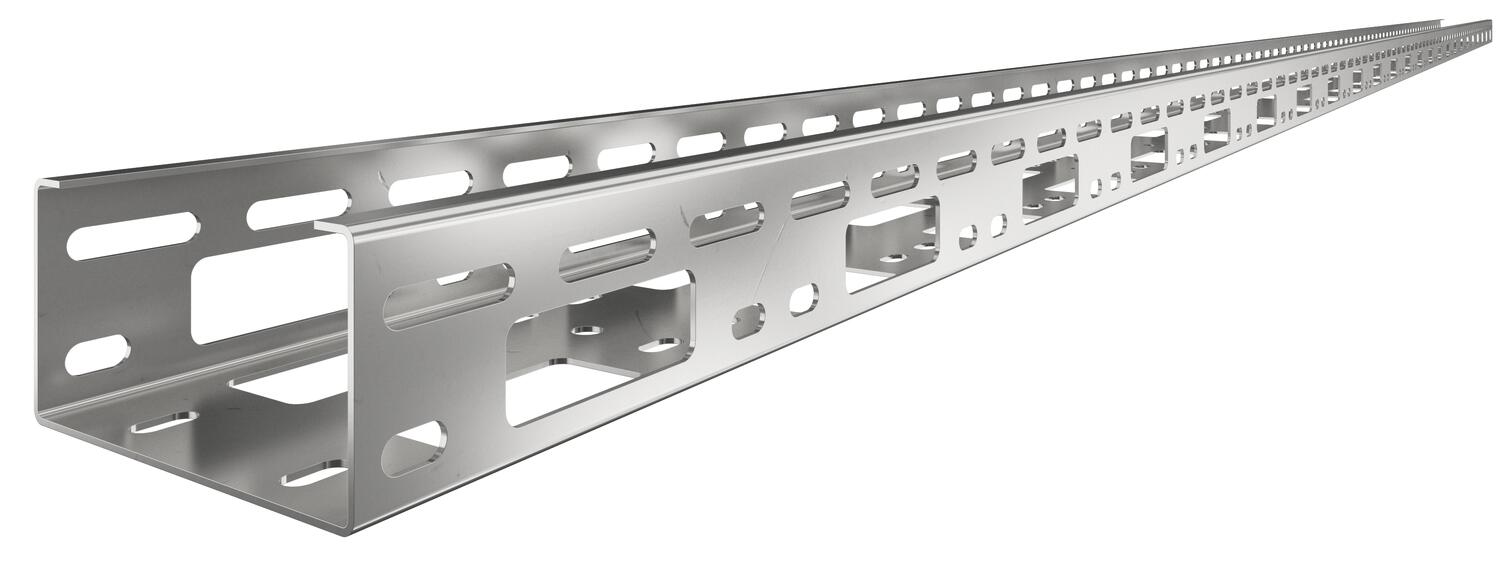

AZ small duct 50 A2
Item no. 6075150 | EAN 4012196069071
- Product description
-
Product description
AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 50x50x3000 Dimension B 50 mm Height 50 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 2,5 kN/m Support spacing 1.5 m 2 kN/m Support spacing 2.0 m 1,2 kN/m Support spacing 2.5 m 0,85 kN/m Support spacing 3.0 m 0,5 kN/m Surface Bright, treated Usable cross-section 25 cm² Usable cross-section 2500 mm² Wide-span version no Width 50 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight and angle connector A2
VF AZK A2 6066569 10 piece
50 A2 straight connector
VF AZK 50 A2 6066629 25 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece

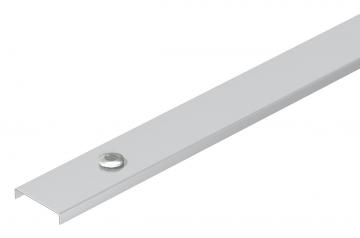

Cover with turn buckle A2
AZDMD 50 A2 6080197 3 m Mounting accessories
Products Types Item no. Quantity SSU

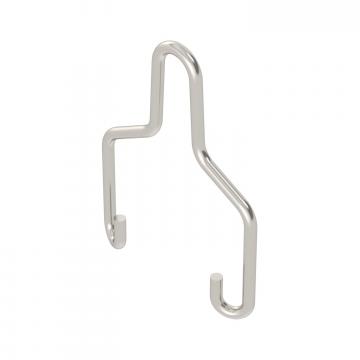

A4 suspension bracket 50
AHB 50 D4 A4 6066508 50 piece - Downloads
-
Data sheet AZK 050 A2 / 6075150 , 0.31MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity AZK 050 A2 / 6075150 , 0.13MB , pdfREACH Declaration of conformity AZK 050 A2 / 6075150 , 0.12MB , pdfRoHS Declaration of conformity AZK 050 A2 / 6075150 , 0.12MB , pdfLabel approval UL certificate AZ small duct , 0.26MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions Modular systems , 0.05MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
