AZ small duct 50, gravel grey
Item no. 6076924 | EAN 4012196424207
- Product description
-

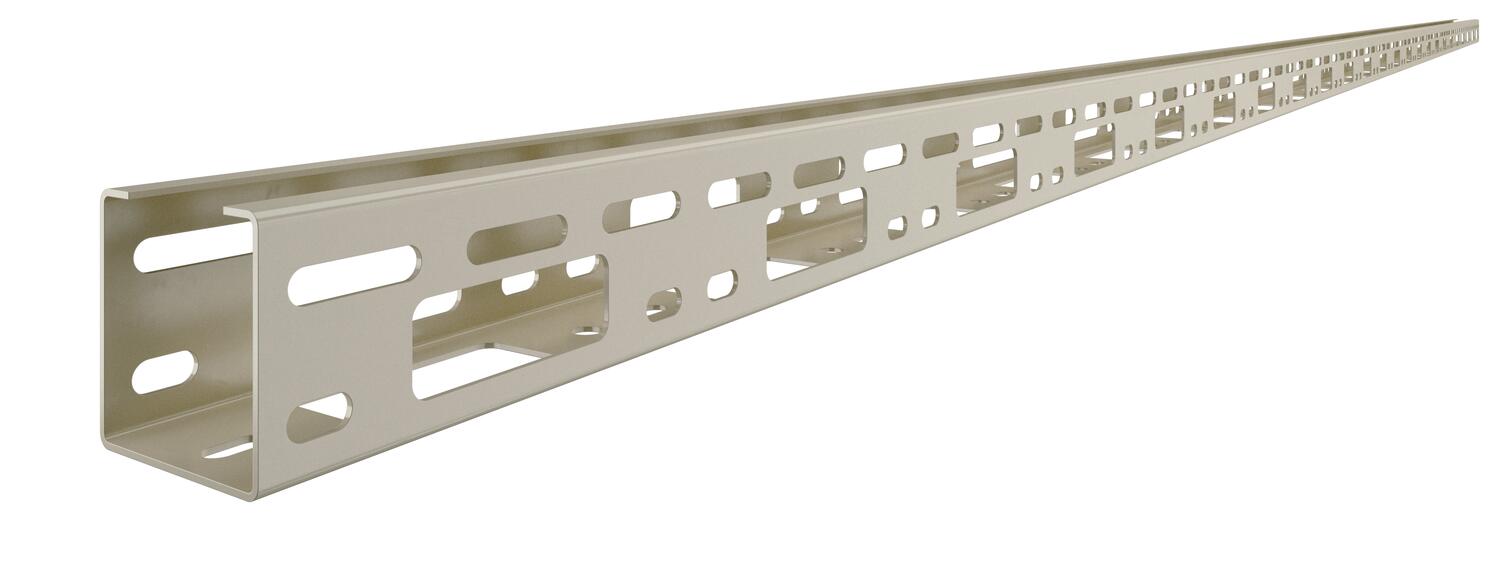

Product descriptionAZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Colour Pebble grey; RAL 7032 Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 4,1087 kg CO₂e / 1 Meter Dimension 50 x 50 x 1,5 Dimension 50x50x3000 Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.5 m 2 kN/m Support spacing 2.0 m 1,2 kN/m Support spacing 2.5 m 0,85 kN/m Support spacing 3.0 m 0,5 kN/m Surface PES50 - Polyester/epoxy Wide-span version no Width 50 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
