Base clamp clip, double

Item no. 2140608 | EAN 4012195199694

2
Product description
Product description
Base clamp clip, two cables 10 mm
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

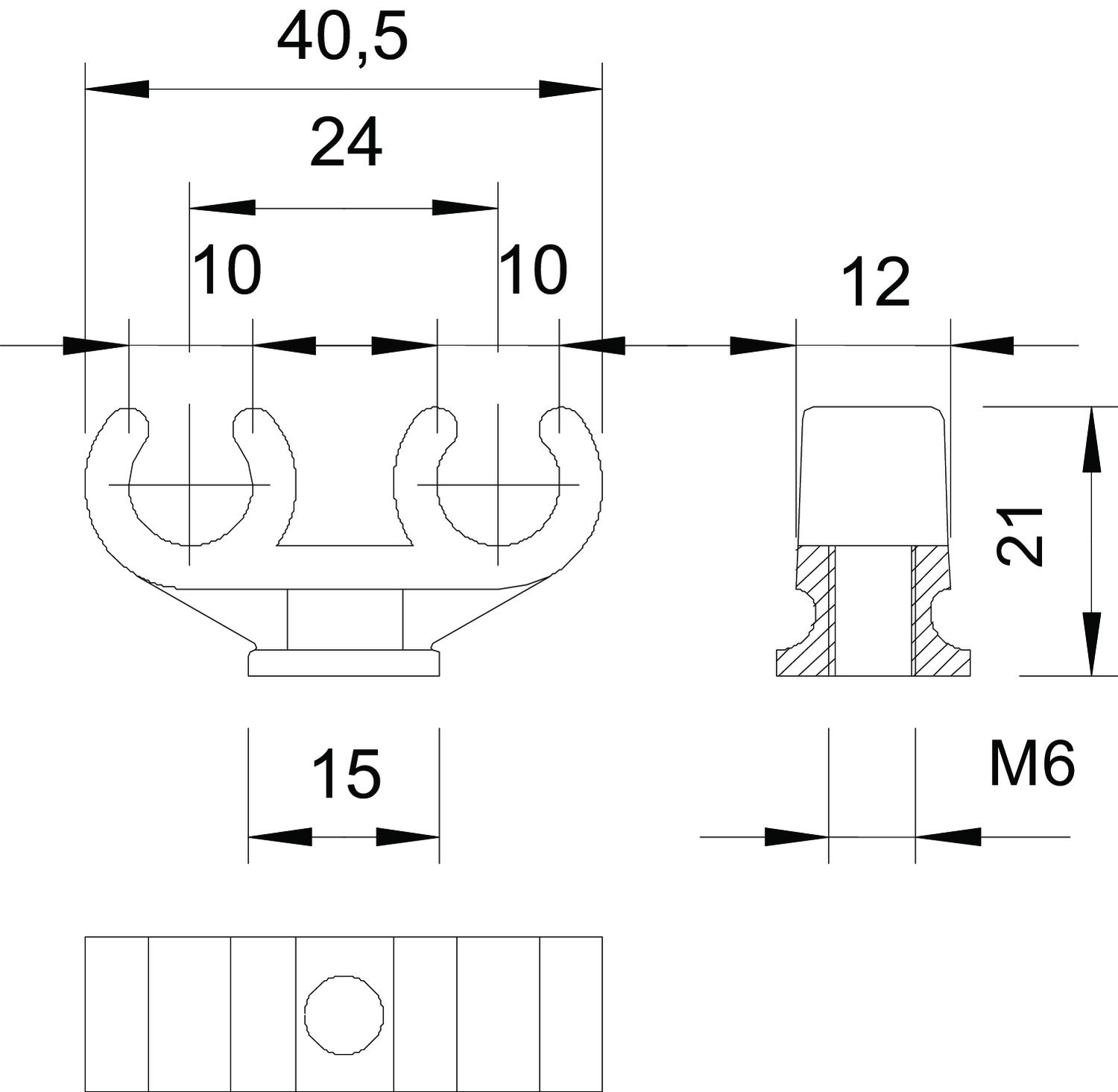

Clamping range D, max. 10 mm
Clamping range D, min. 10 mm
Colour Light grey; RAL 7035
Dimension 10mm
Dimension A 40,5 mm
Dimension B 12 mm
Dimension C Ø 15 mm
Dimension H 21 mm
Dimension L 24 mm
Fastening type Threaded connection
Halogen-free yes
Material Polypropylene
Nominal diameter 9,6 mm
Number of cables/pipes 2
Plastic-covered no
Size 10 + 10
Suitable in fire protection area no
UV-resistant no
Version for Two-lobe
All types

All types

Types Clamping range D, min. Clamping range D, max. Number of cables/pipes Item no. Quantity SSU
2962 2X10 10 mm 10 mm 2 2140608
100 piece
2962 2x16 15 mm 16 mm 2 2140683
50 piece
2962 2x22 18 mm 22 mm 2 2140721
25 piece
Downloads

Download

EU declaration of conformity 2962 2X10 / 2140608 , 0.13MB , pdf
Download
REACH Declaration of conformity 2962 2X10 / 2140608 , 0.12MB , pdf

2962 2X10 / 2140608
Download
