Base clamp clip, double

Item no. 2140721 | EAN 4012195199991

2
Product description
Product description

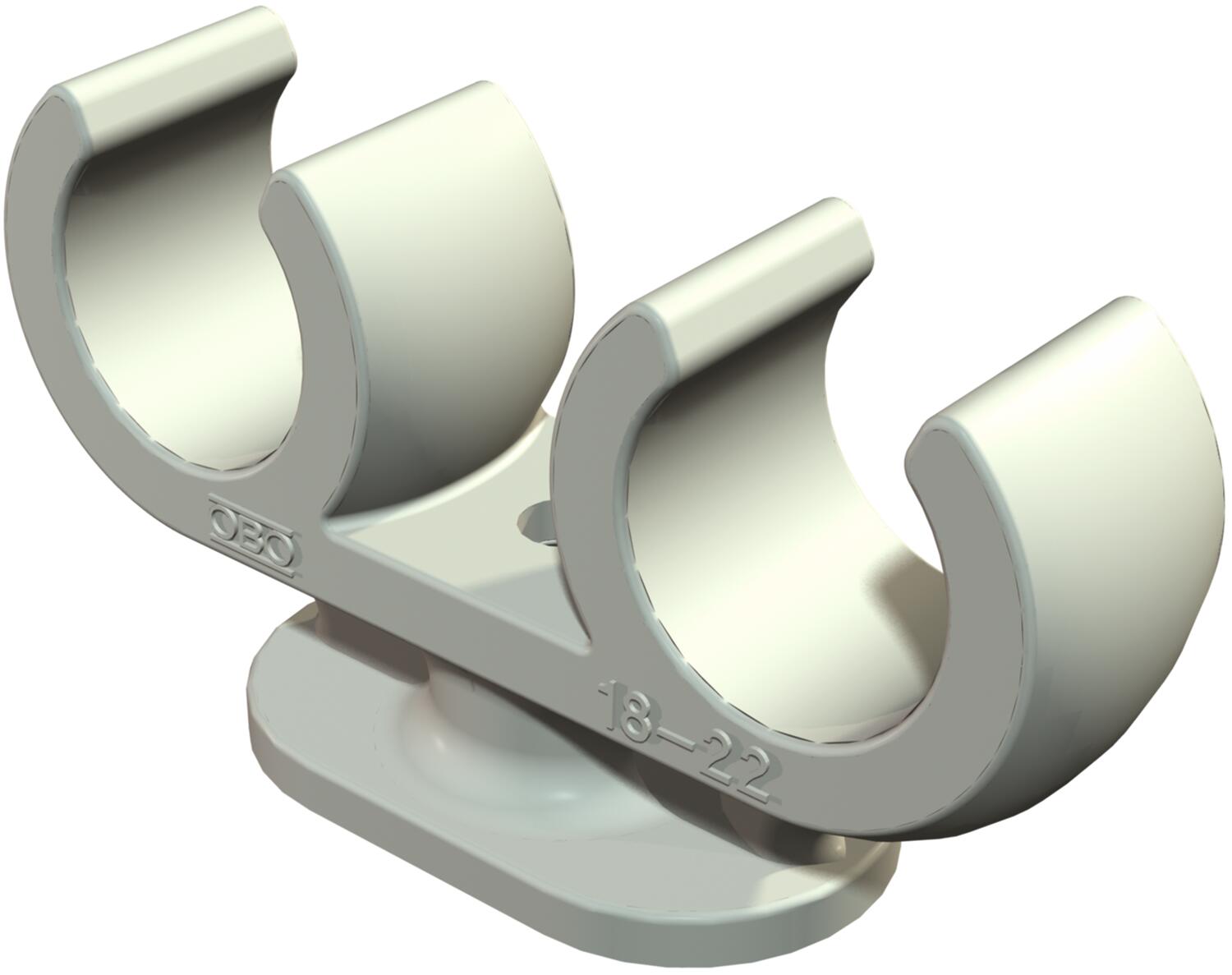

Base clamp clip, two cables 18–22 mm
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

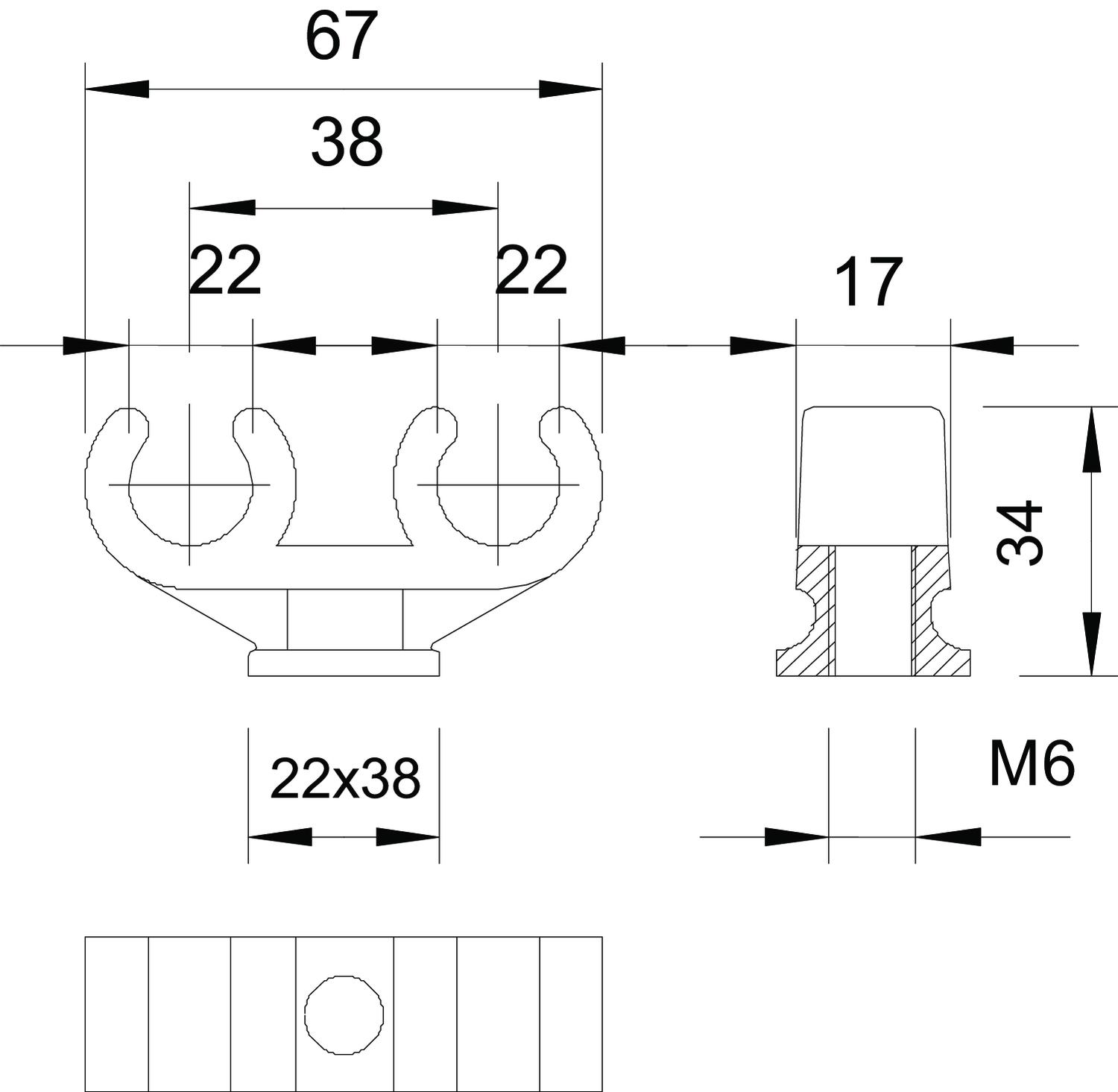

Clamping range D, max. 22 mm
Clamping range D, min. 18 mm
Colour Light grey; RAL 7035
Dimension 18-22mm
Dimension A 67 mm
Dimension B 17 mm
Dimension C 22 x 38 mm
Dimension H 34 mm
Dimension L 38 mm
Fastening type Threaded connection
Halogen-free yes
Material Polypropylene
Nominal diameter 17,8 mm
Number of cables/pipes 2
Plastic-covered no
Size 18/22 + 18/22
Suitable in fire protection area no
UV-resistant no
Version for Two-lobe
All types

All types

Types Clamping range D, min. Clamping range D, max. Number of cables/pipes Item no. Quantity SSU
2962 2X10 10 mm 10 mm 2 2140608
100 piece
2962 2x16 15 mm 16 mm 2 2140683
50 piece
2962 2x22 18 mm 22 mm 2 2140721
25 piece
Downloads

Download

EU declaration of conformity 2962 2x22 / 2140721 , 0.13MB , pdf
Download
REACH Declaration of conformity 2962 2x22 / 2140721 , 0.12MB , pdf

2962 2x22 / 2140721
