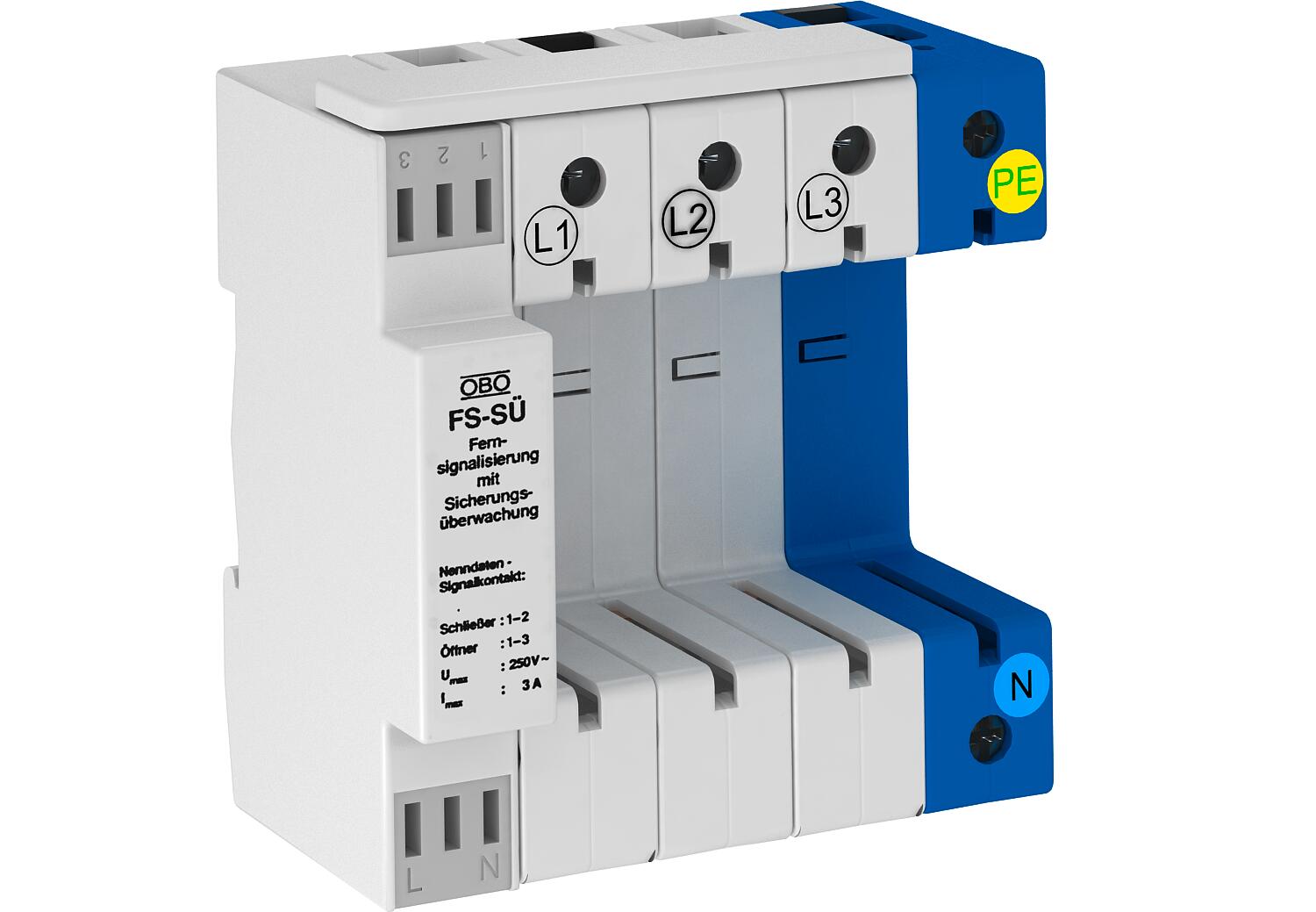

Base, MultiBase + NPE with fuse monitoring

Item no. 5096370 | EAN 4012195063407

Product description
Product description
• Suitable for V 25-B+C, V 20-C and V 10-C
• With voltage monitoring of phases and function monitoring
• With remote signalling, potential-free changeover contact, for function monitoring
• For TN-S and TT network systems
• Pre-mounted and ready for connection
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²

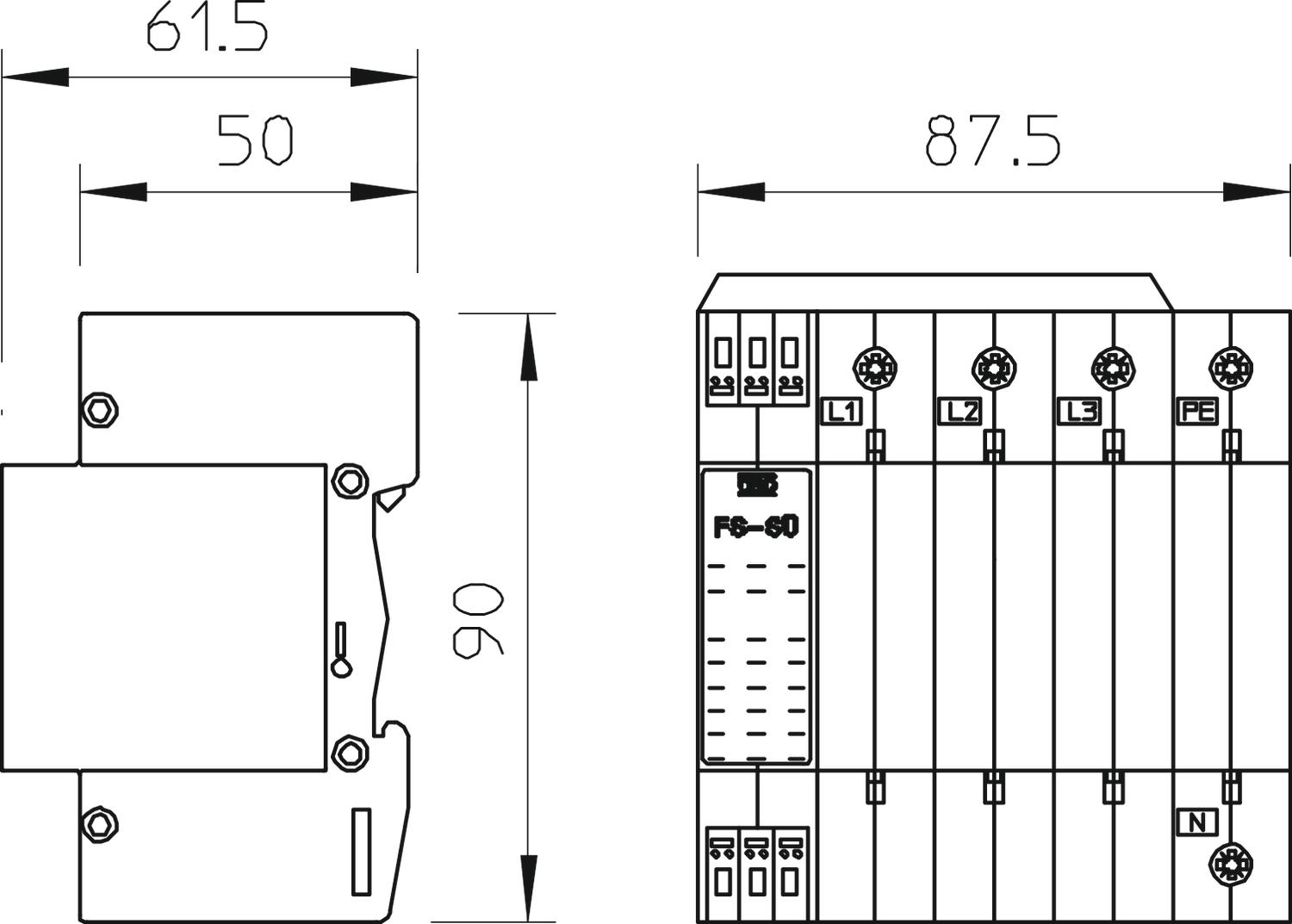

Dimension 3+NPE
Installation type DIN rail 35 mm
Network form TN-S
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 3+N/PE
Protection rating IP20
Remote signalling yes
Version for 3-NPE with FS-SÜ
All types

All types

Types Item no. Quantity SSU
V20-C U-3+NPE 5096370
1 piece
