Base, MultiBase + NPE with remote signalling
Item no. 5096657 | EAN 4012195067498
- Product description
-
Product description• Suitable for V 25-B+C, V 20-C and V10-C
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection to series-mounted devices
• Upper parts can be rotated through 180 degrees
• With remote signalling, potential-free NO contact, for function monitoring
• 3+1 protection circuit for TN-S and TT network systems
-
- Technical data
-
Technical data

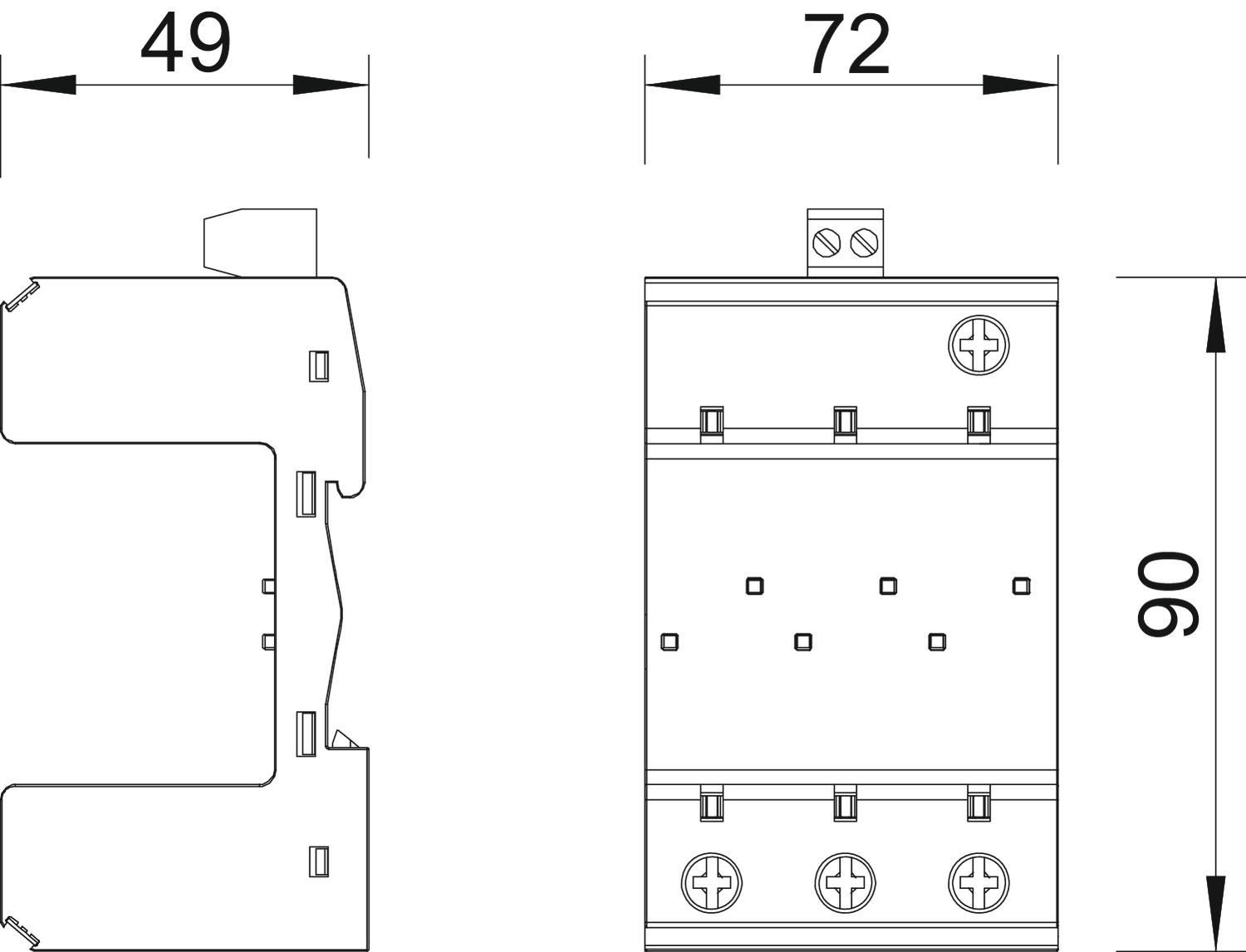

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 2+NPE+FS Installation type DIN rail 35 mm Network form Other Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 2+N/PE Protection rating IP20 Remote signalling yes Version for 2+NPE - All types
- Downloads
-
Data sheet MB 2+NPE+FS / 5096657 , 0.17MB , pdfNo invitation to tender text is available for this product.
