Base, MultiBase with remote signalling

Item no. 5096682 | EAN 4012195067597

Product description
Product description
• Suitable for V 25-B+C, V 20-C and V10-C

• Pre-mounted and ready for connection

• Multifunction terminals for easy connection to series-mounted devices

• Upper parts can be rotated through 180 degrees

• With remote signalling, potential-free NO contact, for function monitoring
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Remote signalling
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²

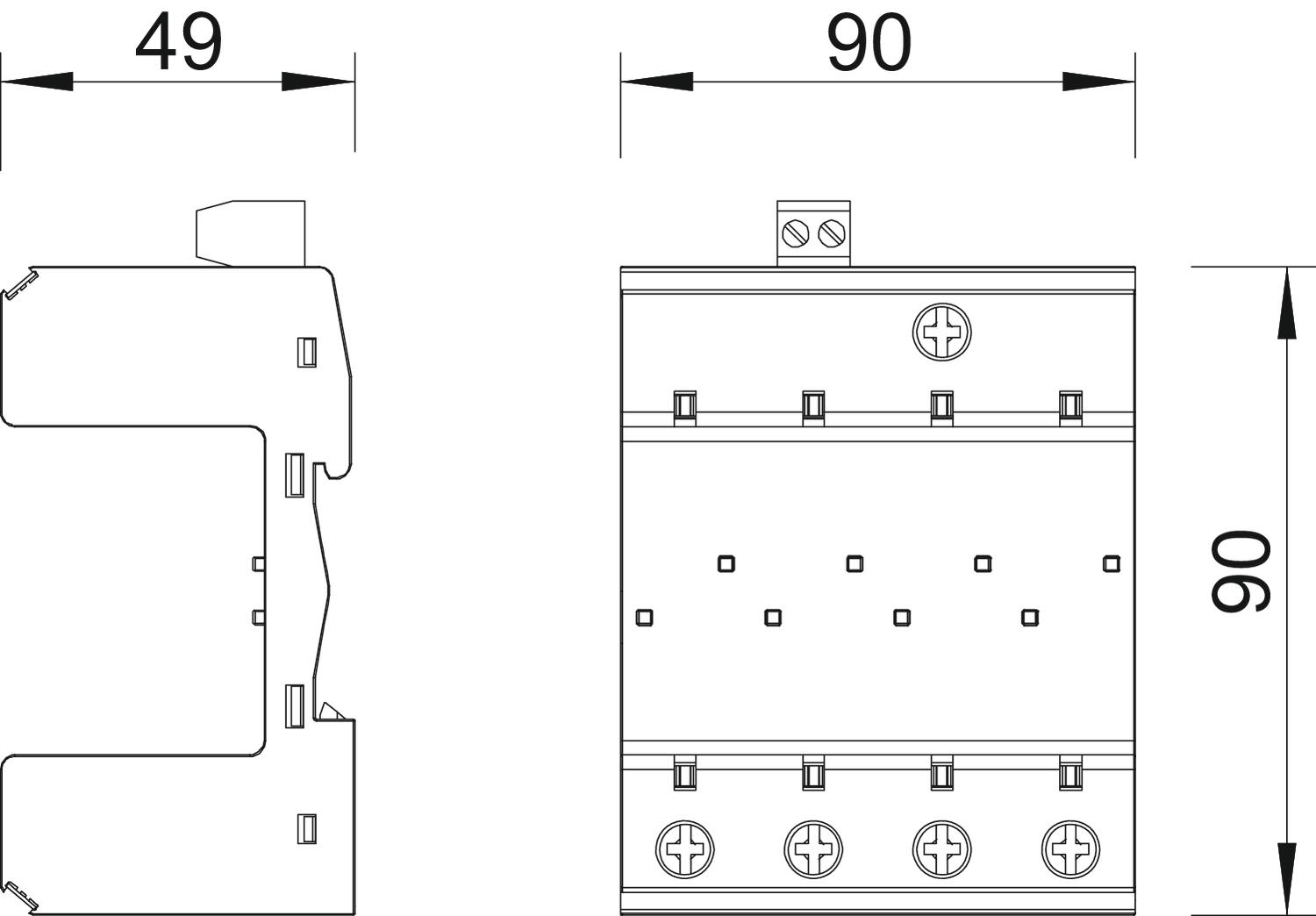

Dimension 4-polig+FS
Installation type DIN rail 35 mm
Network form Other
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 4
Protection rating IP20
Remote signalling yes
Version for 4-pole
All types

All types

Types Item no. Quantity SSU
MB 1+FS 5096649
1 piece
MB 2+FS 5096654
1 piece
MB 3+FS 5096667
1 piece
MB 4+FS 5096682
1 piece
