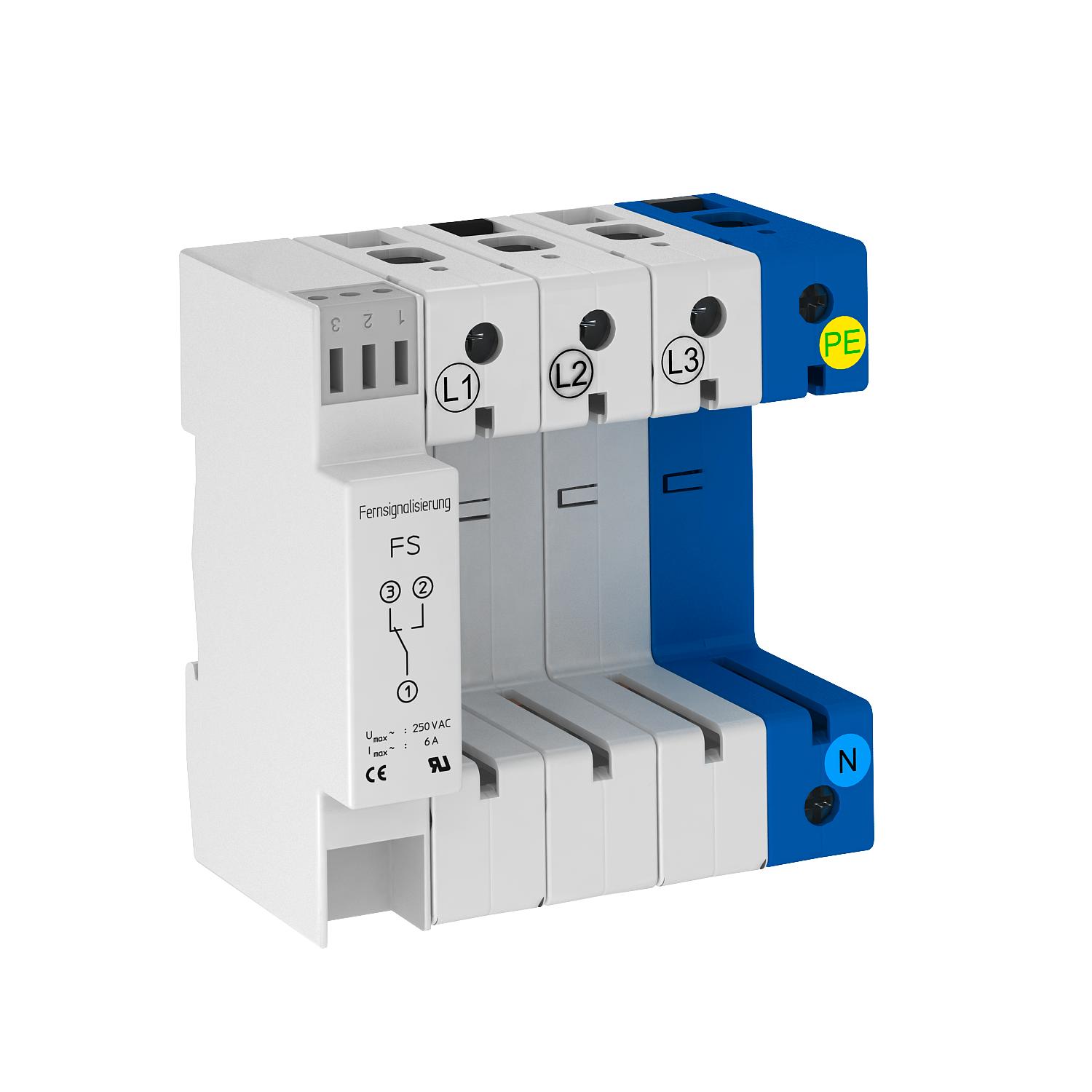

Base V20 and V25 3pole +NPE with remote signaling

Item no. 5095859 | EAN 4012195726074

Product description

Product description

Base

• Suitable for V 25-B+C or V 20-C and C 25-B+C
• With remote signalling and potential-free changeover contact for function monitoring
• Pre-mounted and ready for connection
• With protection against incorrect insertion
• For TN-S and TT network systems
• Labelled connections
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Remote signalling
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²

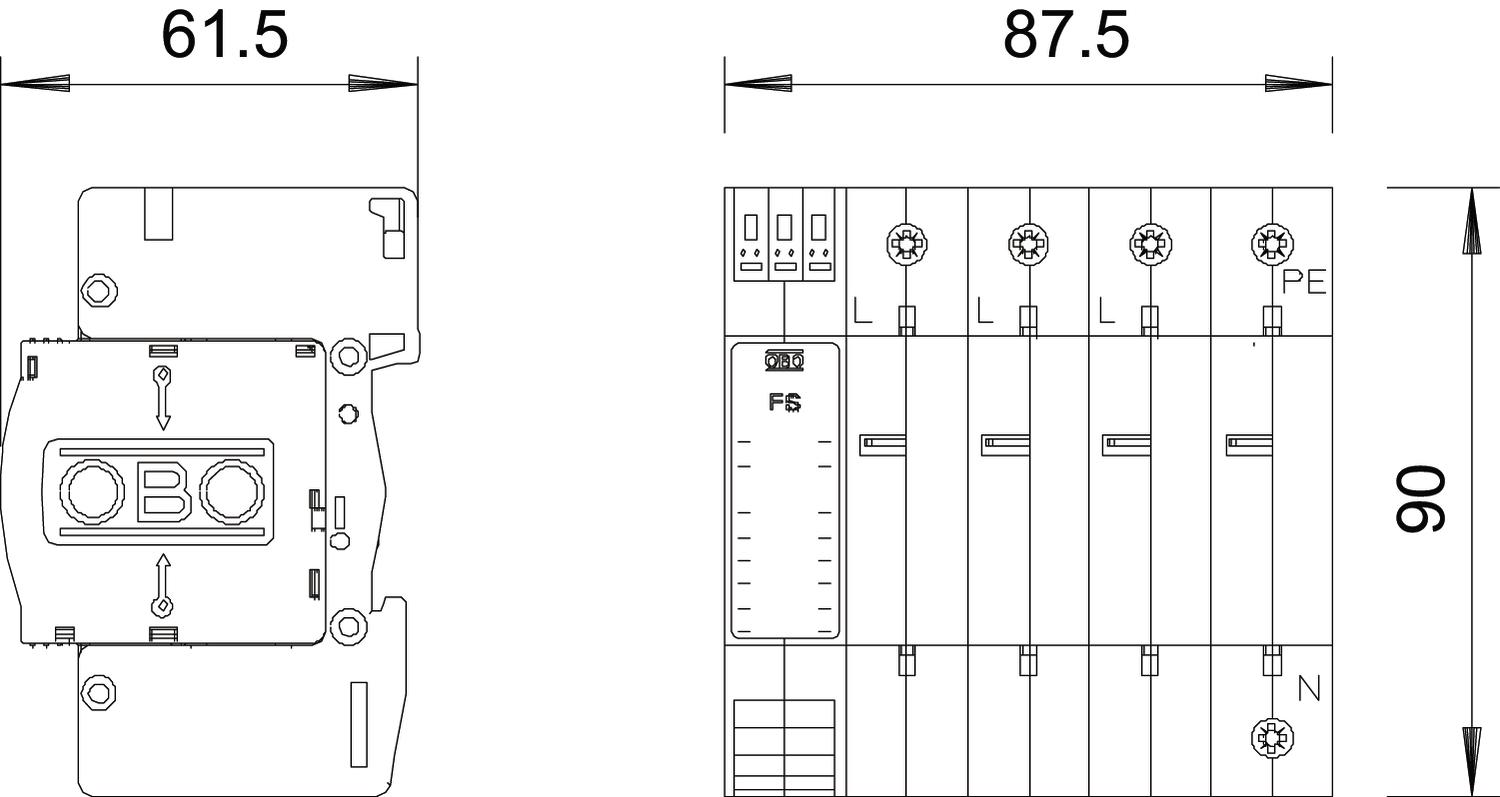

Dimension 3+NPE+FS
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 3+N/PE
Protection rating IP20
Remote signalling yes
Signalling on device None
Version for 3-pole with NPE; with RS; base
All types

All types

Types Item no. Quantity SSU
V20-C U-3+NPE-FS 5095859
1 piece
