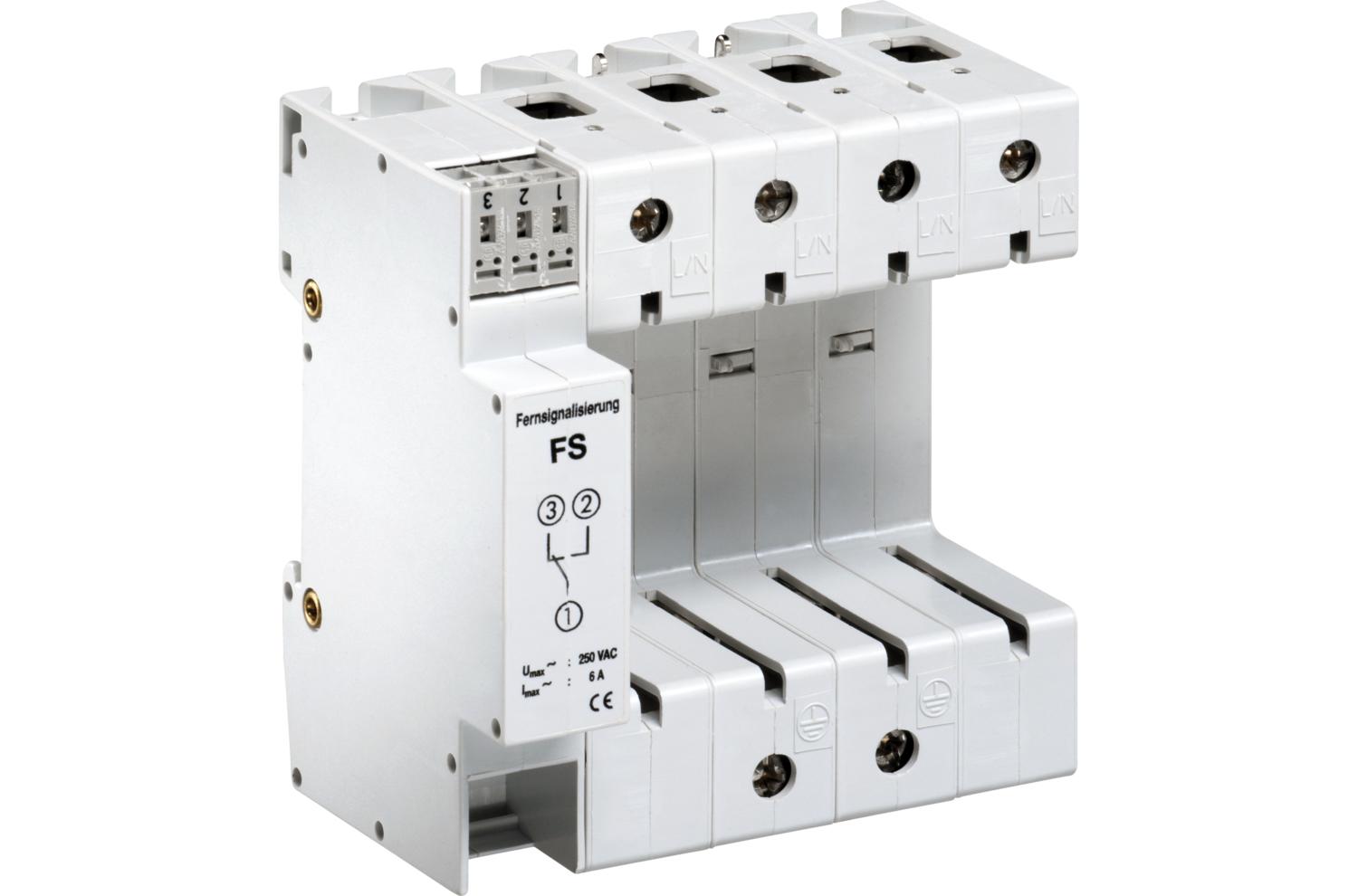

Base V20 and V25 4pole with remote signalling

Item no. 5096332 | EAN 4012195393498

Product description

Product description

Base

• Suitable for V 25-B+C or V 20-C
• With remote signalling and potential-free changeover contact for function monitoring
• Pre-mounted and ready for connection
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Remote signalling
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²
Dimension 4-polig
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 4
Protection rating IP20
Remote signalling yes
Signalling on device None
Version for 4-pole with RS; base
All types

All types

Types Item no. Quantity SSU
V20-C U-2 FS 5096316
1 piece
V20-C U-4 FS 5096332
1 piece
