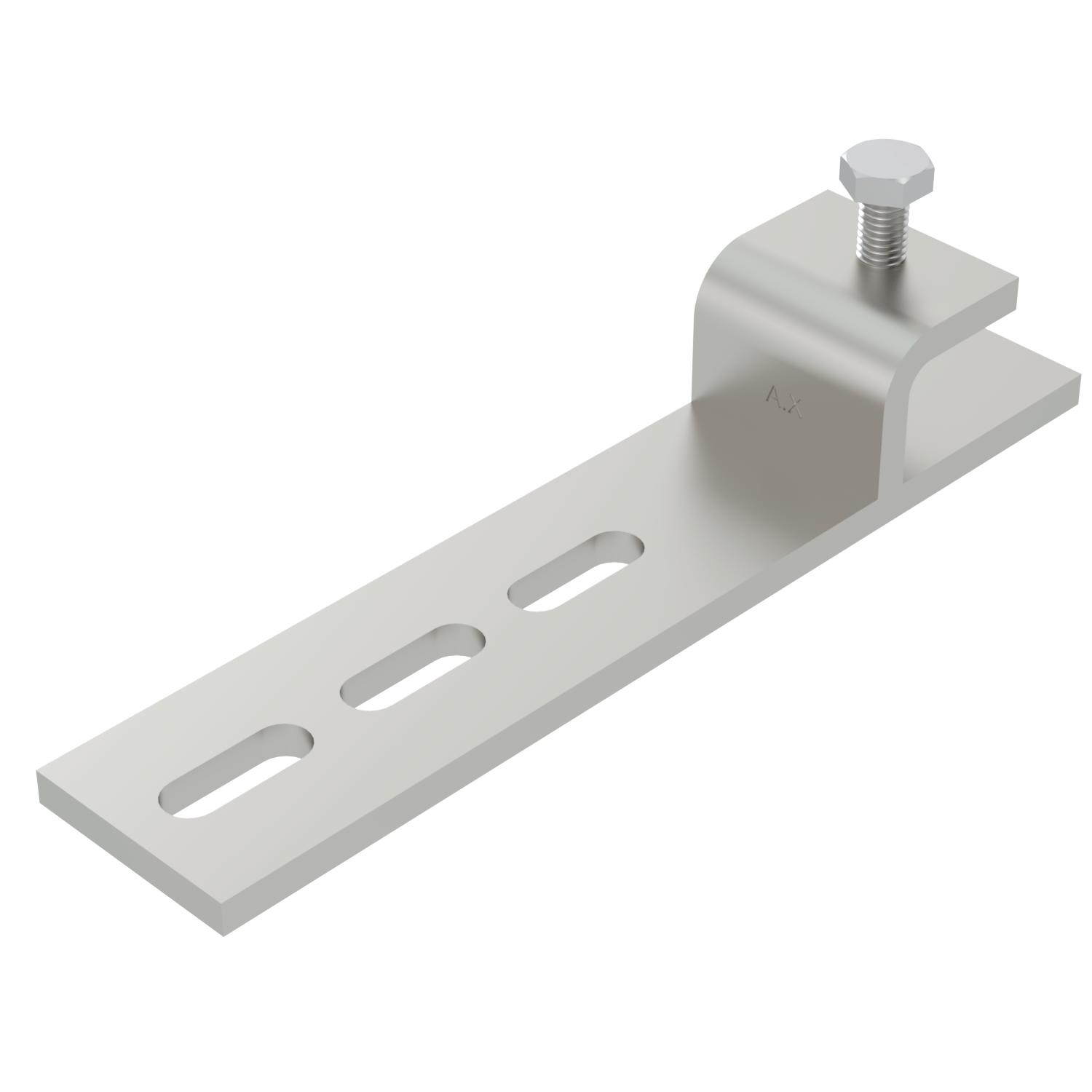

Beam clamp, horizontal BFK 187 A2
Item no. 6003879 | EAN 4012196049929
- Product description
-
Product descriptionBeam clamp for clamping on the steel girder.
-
- Technical data
-
Technical data

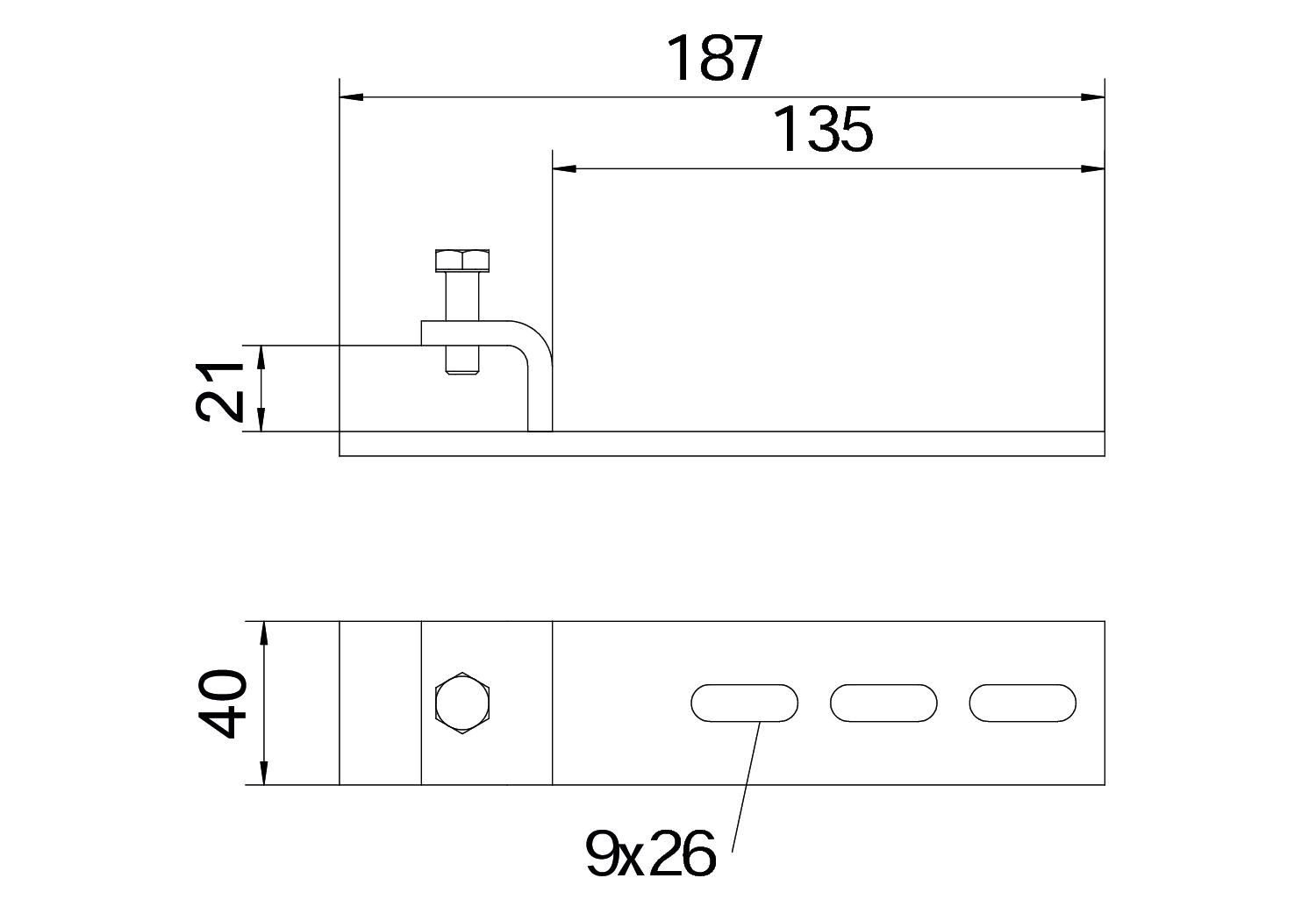

Colour stainless steel Dimension 187X33 Dimension B 187 mm Dimension b 135 mm Dimension B1 135 mm Height 20 mm Material Stainless steel Suitable for profile shapes C profile Surface Bright, treated Version for Miscellaneous Width 187 mm - All types
- Downloads
-
Data sheet BFK 187 33 A2 / 6003879 , 0.17MB , pdfEU declaration of conformity BFK 187 33 A2 / 6003879 , 0.10MB , pdfREACH Declaration of conformity BFK 187 33 A2 / 6003879 , 0.12MB , pdfRoHS Declaration of conformity BFK 187 33 A2 / 6003879 , 0.13MB , pdfMounting instructions Mounting instructions, clamp fastening , 0.04MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
