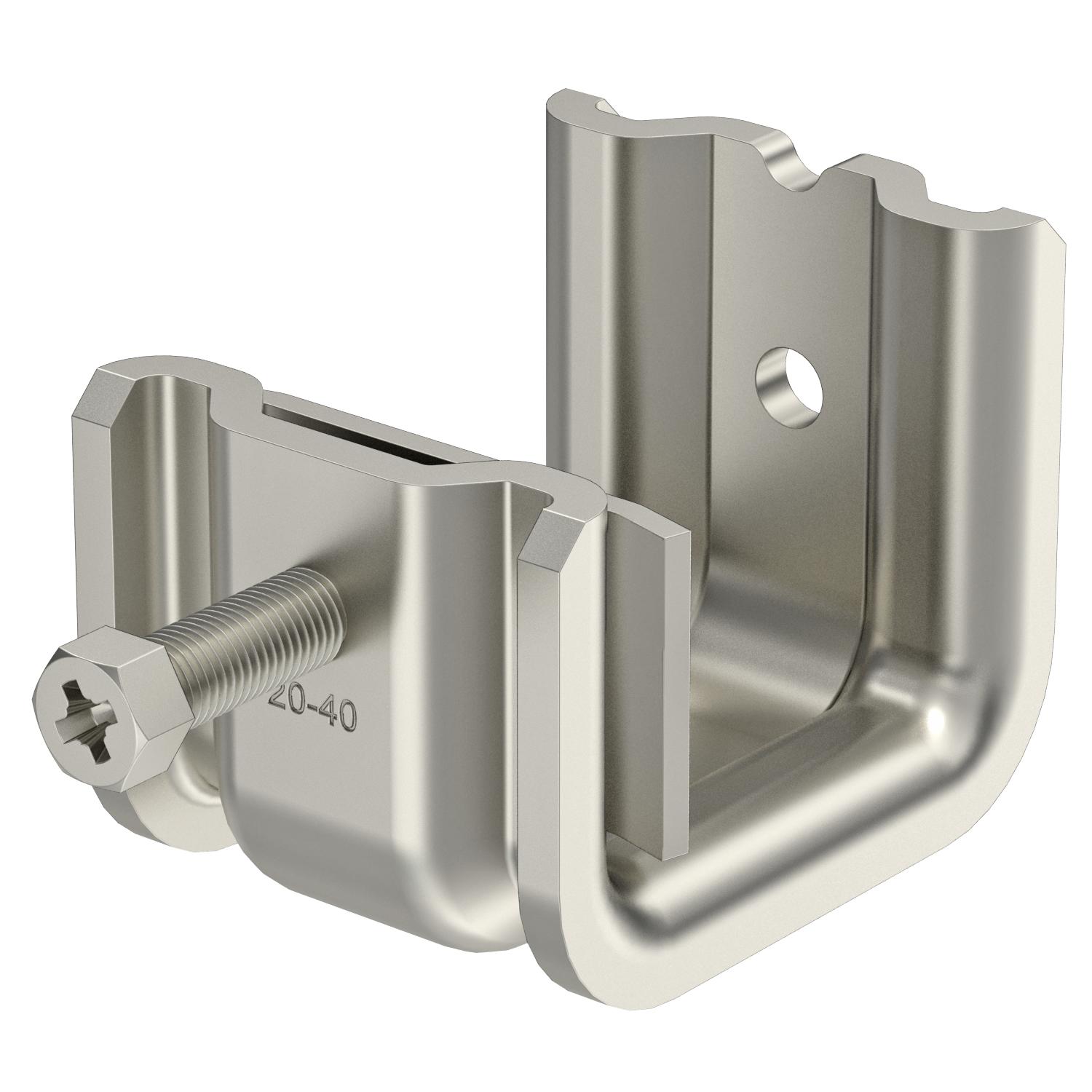

Beam clamp SSP 20-40, VA M8

Item no. 1486294 | EAN 4012196342228

48 mm
47 mm
20 mm
40 mm
Product description

Product description

This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm. In the clip element also two more M8 threads are introduced, for example to attach threaded rods.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load F1 1,4 kN
Breaking load F2 1,3 kN
Connection type/component Thread
Dimension 20-40mm
Fastening type Clamp
Flange thickness F max. 40 mm
Flange thickness F min. 20 mm
Hinge, adjustable no
Hinged no
Material Stainless steel
Suitable for metric threaded rod 8
Surface Bright, treated
Thread M8
Thread metric 8

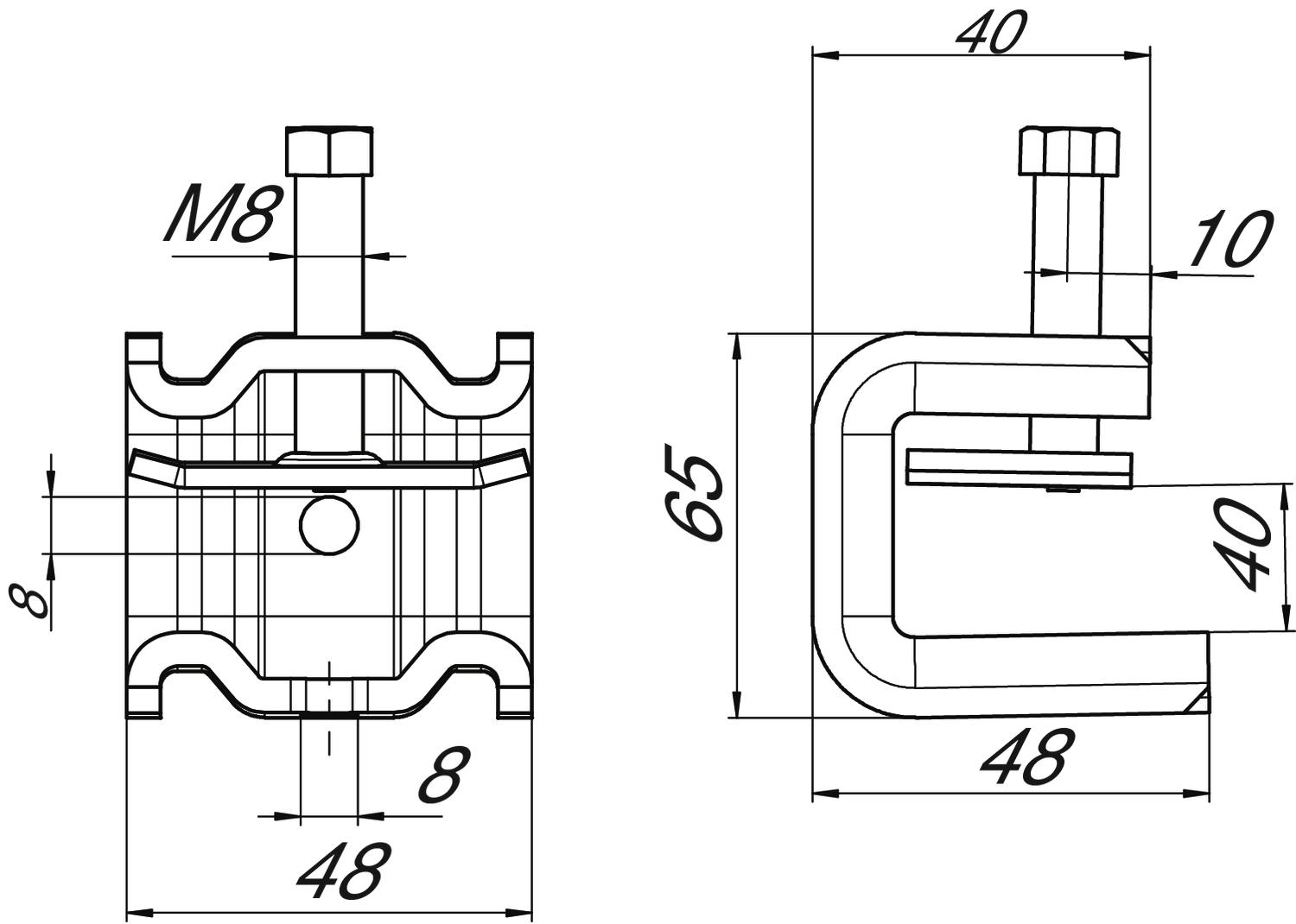

Dimensions

Dimension B 48 mm
Dimension H 65 mm
Dimension L 47 mm
All types

All types

Types Dimension B Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SSP 20-40 M8 A2 48 mm 47 mm 20 mm 40 mm 1486292
25 piece
SSP 20-40 M8 A4 48 mm 47 mm 20 mm 40 mm 1486294
25 piece
