Beam clamp, vertical BFK 166 A2

Item no. 6003877 | EAN 4012196049806

Item no. / Types	6003877 / BFK 166 58 20 A2

Dimension b	133 mm

Product description

Product description

Beam clamp for clamping on the steel girder.

Technical data

Technical data

Colour	stainless steel
Dimension B	166 mm
Dimension b	133 mm
Dimension B1	133 mm
Height	20 mm

Material	Stainless steel
Suitable for profile shapes	C profile
Surface	Bright, treated
Version for	Miscellaneous
Width	166 mm

All types

All types

Types	Dimension b	Item no.	Quantity	SSU
BFK 166 58 20 A2	133 mm	6003877	piece	10 piece

Downloads

Data sheet BFK 166 58 20 A2 / 6003877 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity BFK 166 58 20 A2 / 6003877 , 0.10MB , pdf

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic BFK 166 58 20 A2 / 6003877, 31.64 kB, jpg

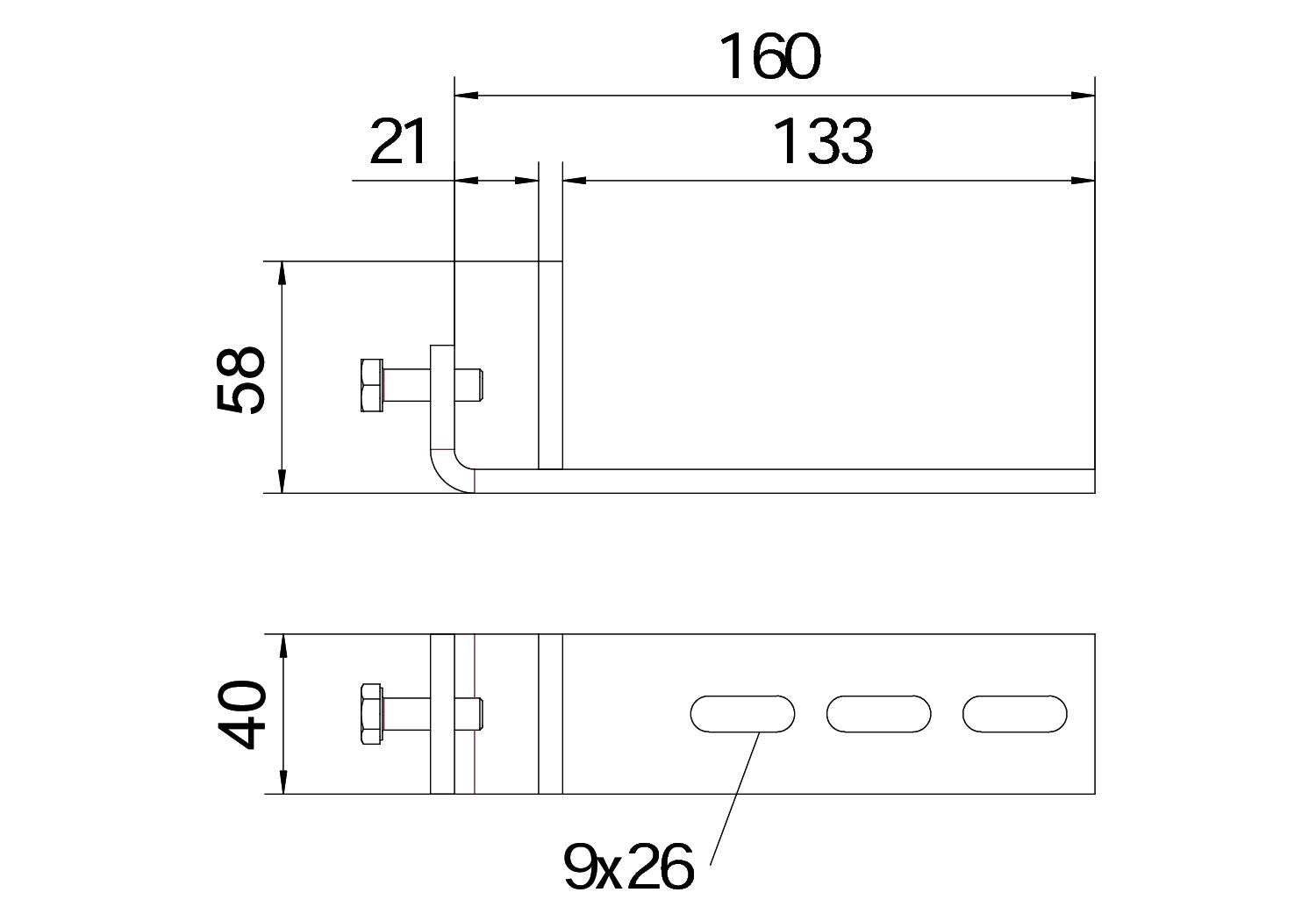

Scale drawing BFK 166 58 20 A2 / 6003877, 45.89 kB, jpg
