- Product description
-
Product description

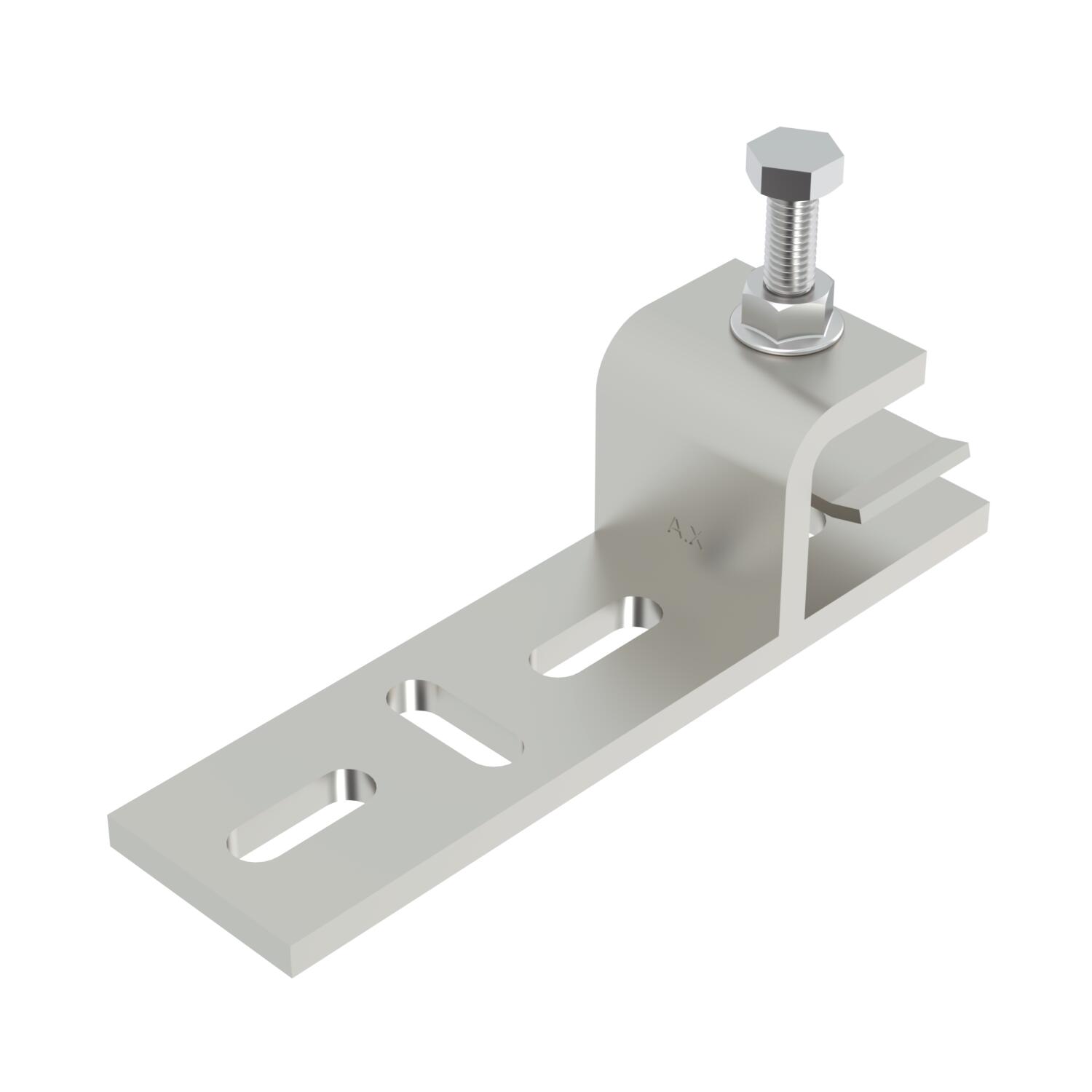

Fastening clamp with pressure plate for clamping on the steel girder.
- Technical data
-
Technical data
Adjustable yes Dimension 153x40x44mm Maintain electrical functions no Material Stainless steel Material thickness 6 mm Suitable for profile shapes C profile Surface Bright, treated Version for Miscellaneous With screw accessories no Dimensions

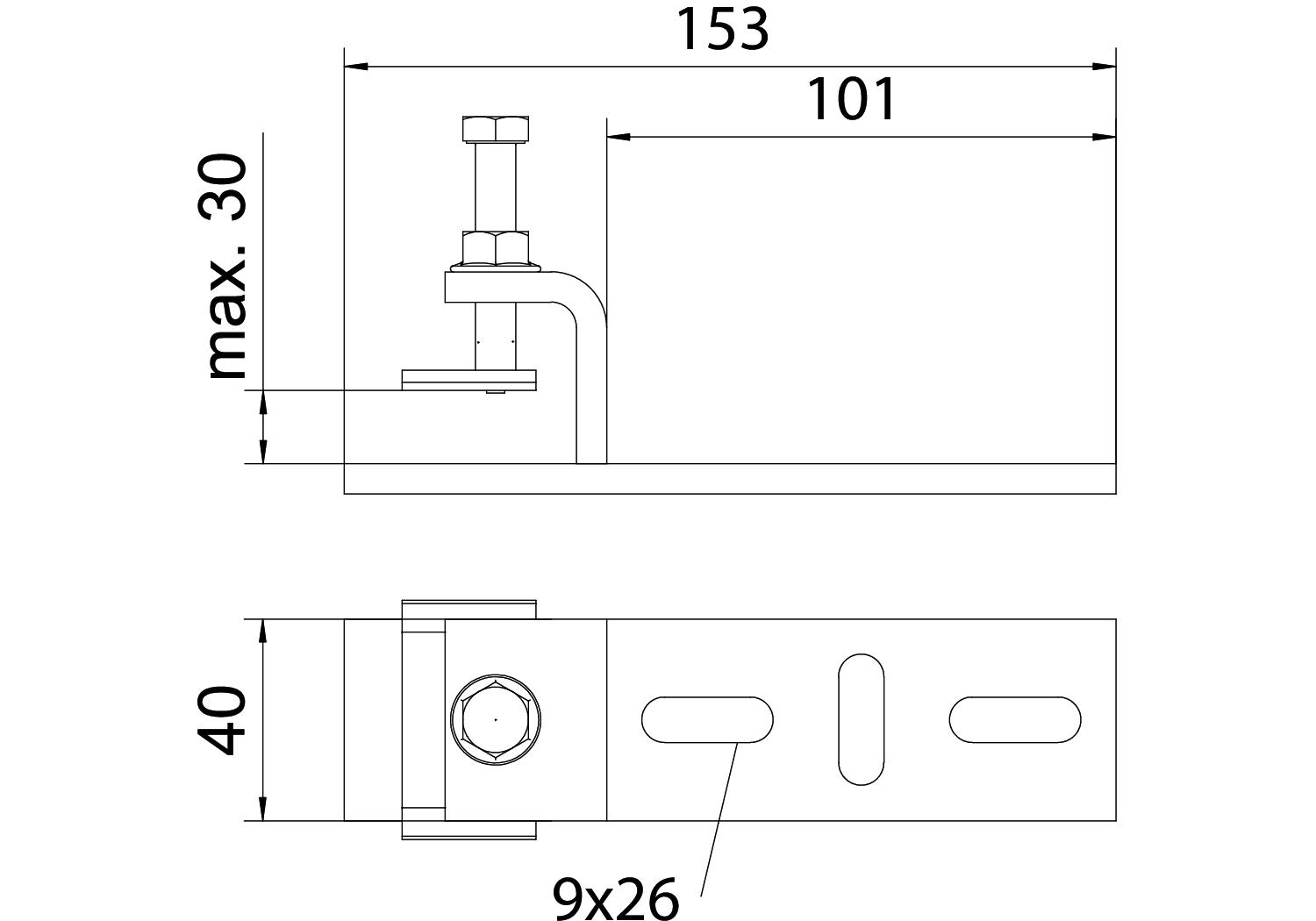

Dimension b 101 mm Dimension B 153 mm Dimension B1 101 mm Height 28 mm Width 153 mm - All types
- Downloads
-
Data sheet BFKD 153 44 A2 / 6003887 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity BFKD 153 44 A2 / 6003887 , 0.17MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdf
