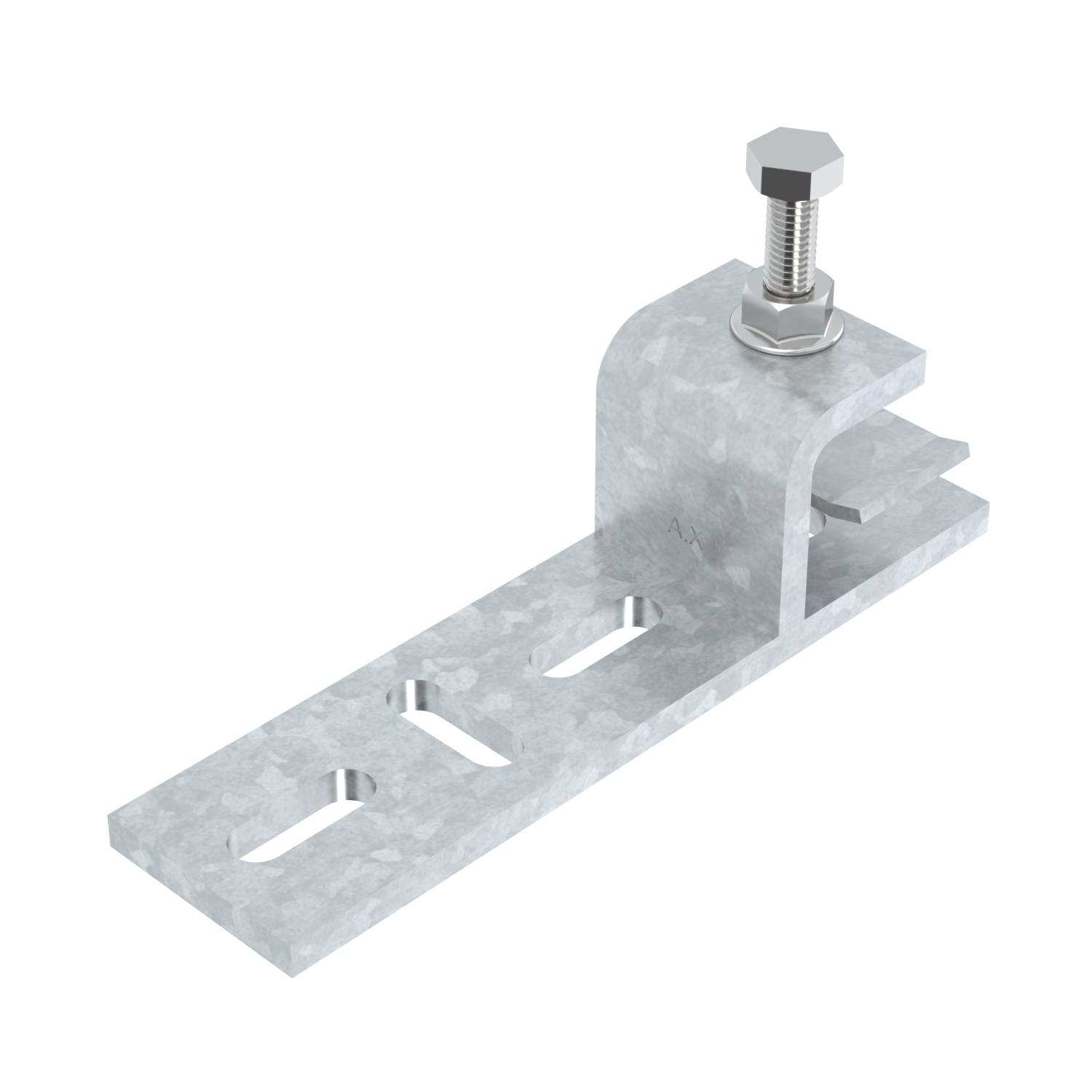

Beam clamp with pressure plate, horizontal BFK 153 FT
Item no. 6003885 | EAN 4012196609215
- Product description
-
Product descriptionBeam clamp with pressure plate for clamping on the steel girder.
-
- Technical data
-
Technical data

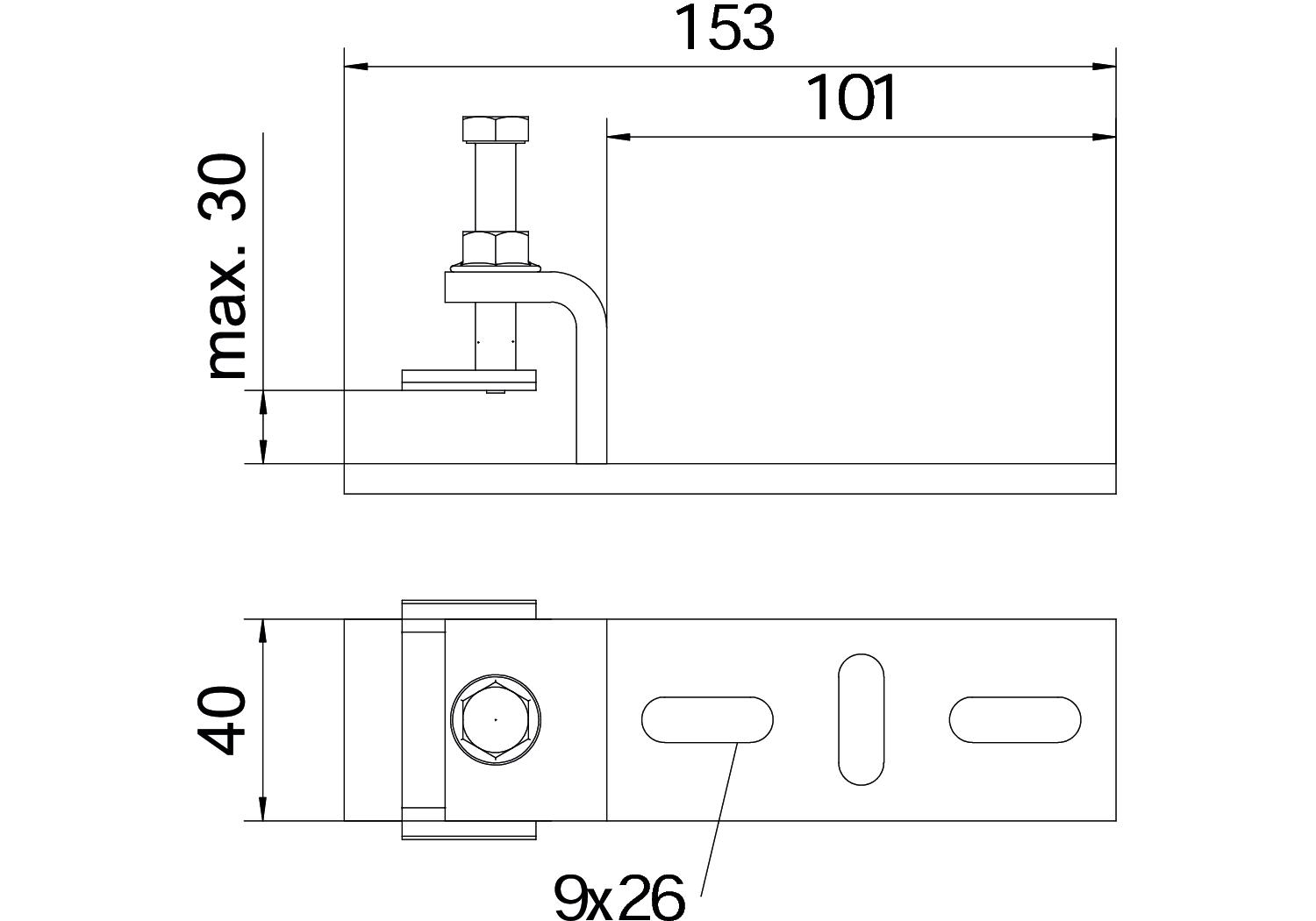

Adjustable yes Colour zinc Dimension 153x40x44mm Dimension b 101 mm Dimension B 153 mm Dimension B1 101 mm Height 28 mm Maintain electrical functions no Material Steel Material thickness 6 mm Suitable for profile shapes C profile Surface Hot-dip galvanised Version for Miscellaneous Width 153 mm With screw accessories no - All types
- Downloads
-
Data sheet BFKD 153 44 FT / 6003885 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BFKD 153 44 FT / 6003885 , 0.10MB , pdfREACH Declaration of conformity BFKD 153 44 FT / 6003885 , 0.12MB , pdfRoHS Declaration of conformity BFKD 153 44 FT / 6003885 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
