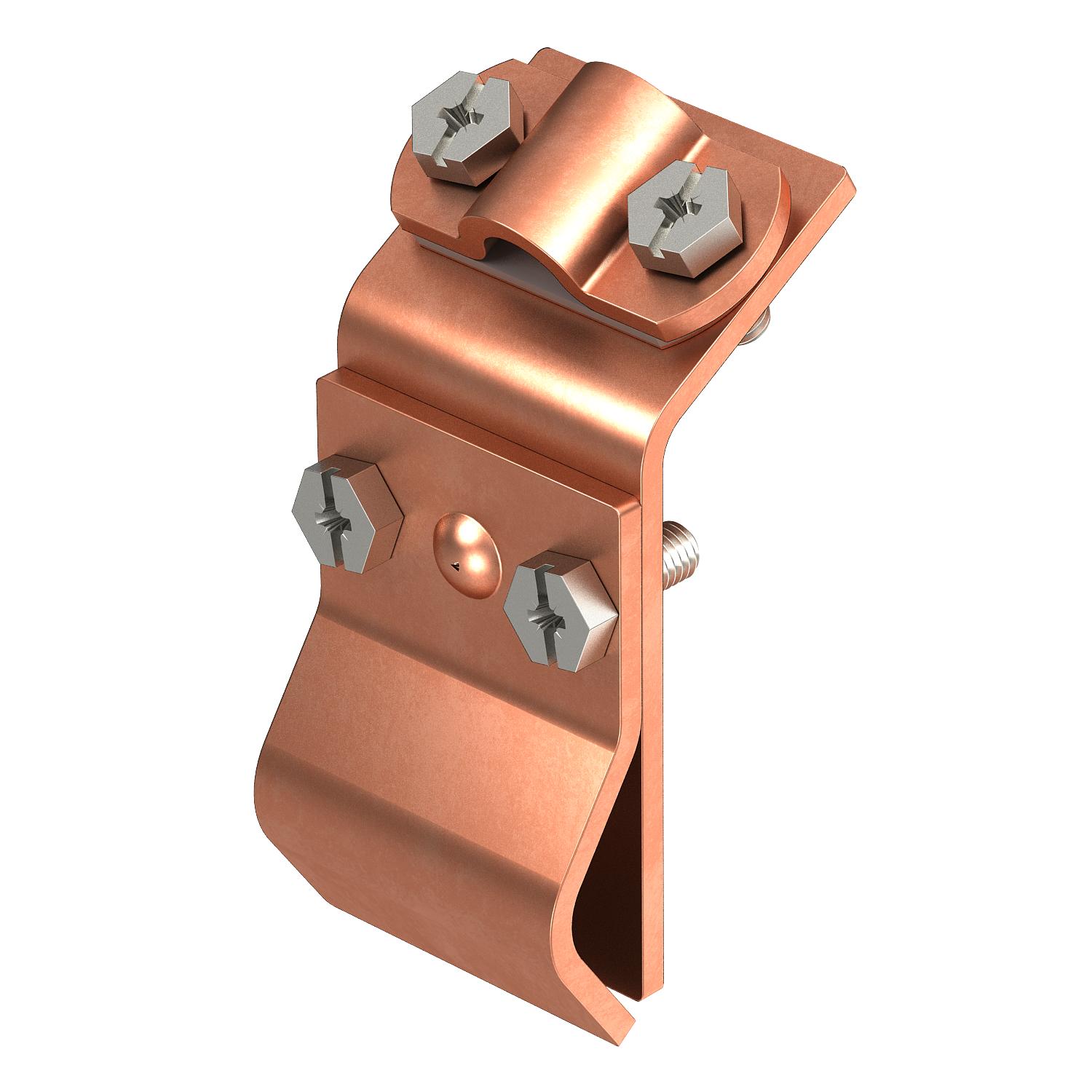

Bi-metal roof gutter clamp for all bead thicknesses

Item no. 5316170 | EAN 4012195818359

5316170 / 262 ZM
Rd 8-10 mm
Product description
Product description

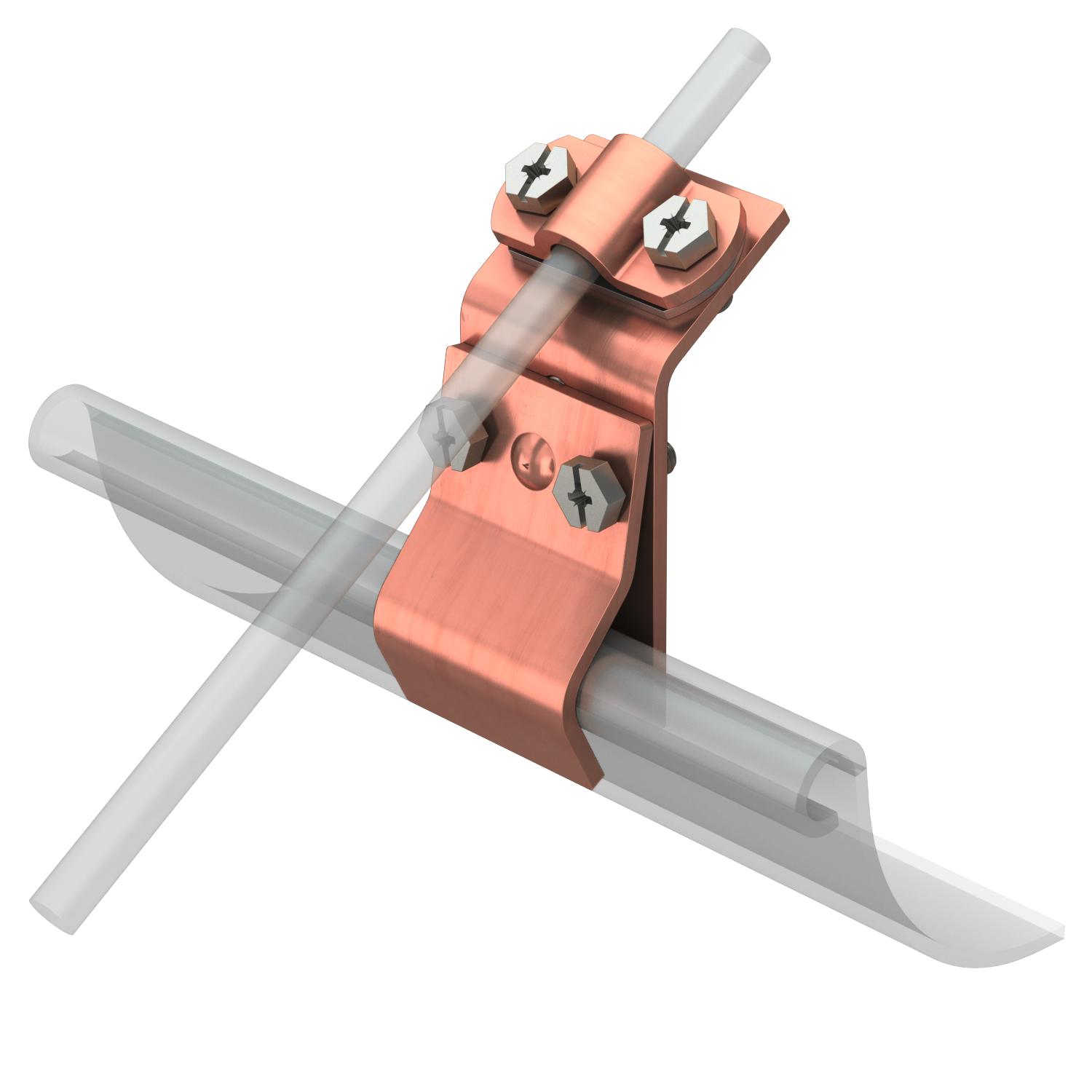

Gutter clamp to connect round conductors to roof gutters
• Suitable for all bead thicknesses
• Bi-metal for connection of aluminium or hot-dip galvanised steel round conductors to copper roof gutters, without corrosion of the different metals
Technical data

Technical data

Dimension 8mm
Fit Rd 8-10 mm
Material Steel
Surface Hot-dip galvanised
Type of connector Roof gutter clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
262 ZM Rd 8-10 mm 5316170
10 piece
Downloads

Download

Download

REACH Declaration of conformity 262 ZM / 5316170 , 0.27MB , pdf
RoHS Declaration of conformity 262 ZM / 5316170 , 0.12MB , pdf

262 ZM / 5316170
Download
