Bi-metal separating piece for Rd 8−10 and FL 30 mm Rd 8-10/FL30 x Rd 8-10/FL30
morepic-1 morepic-2 video-1

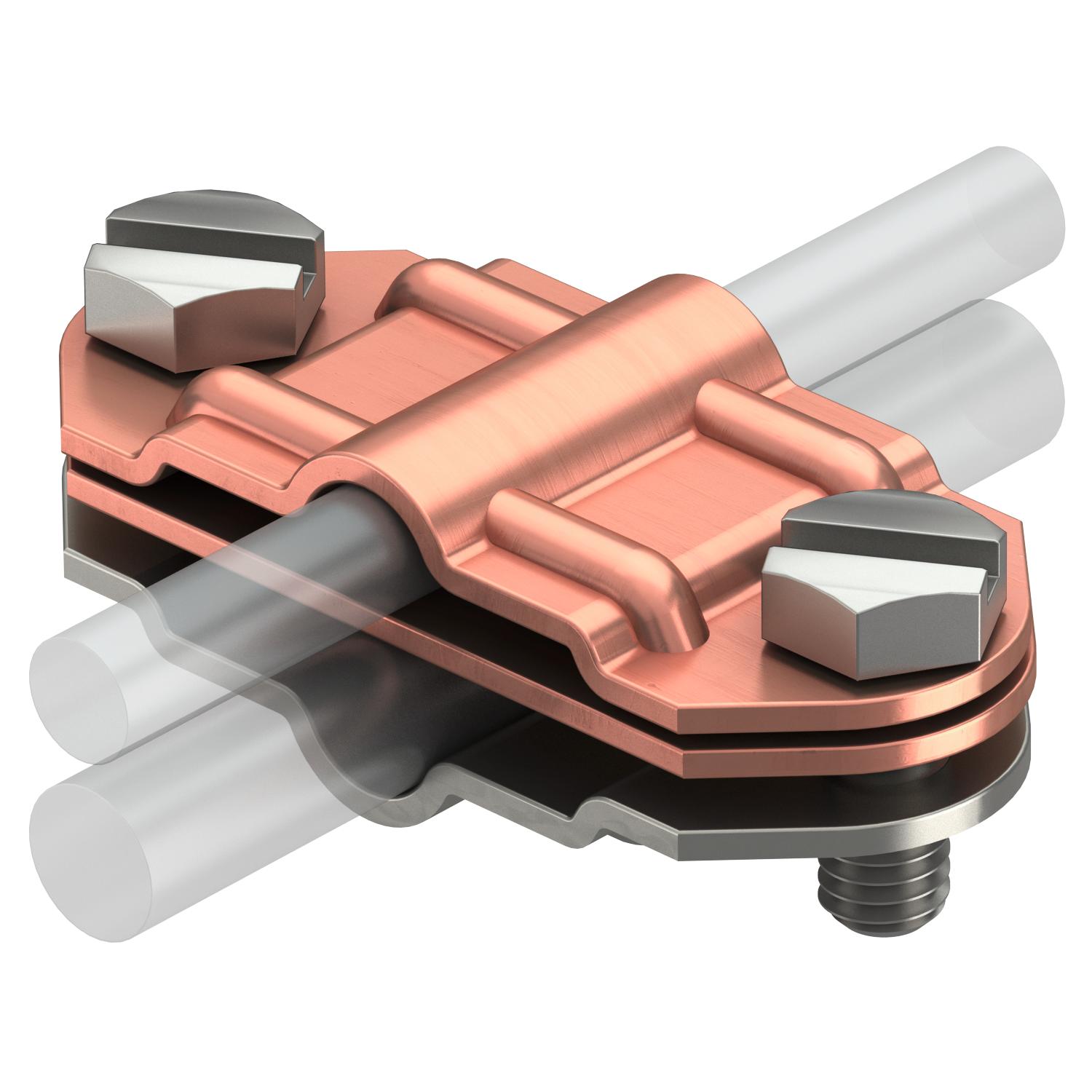

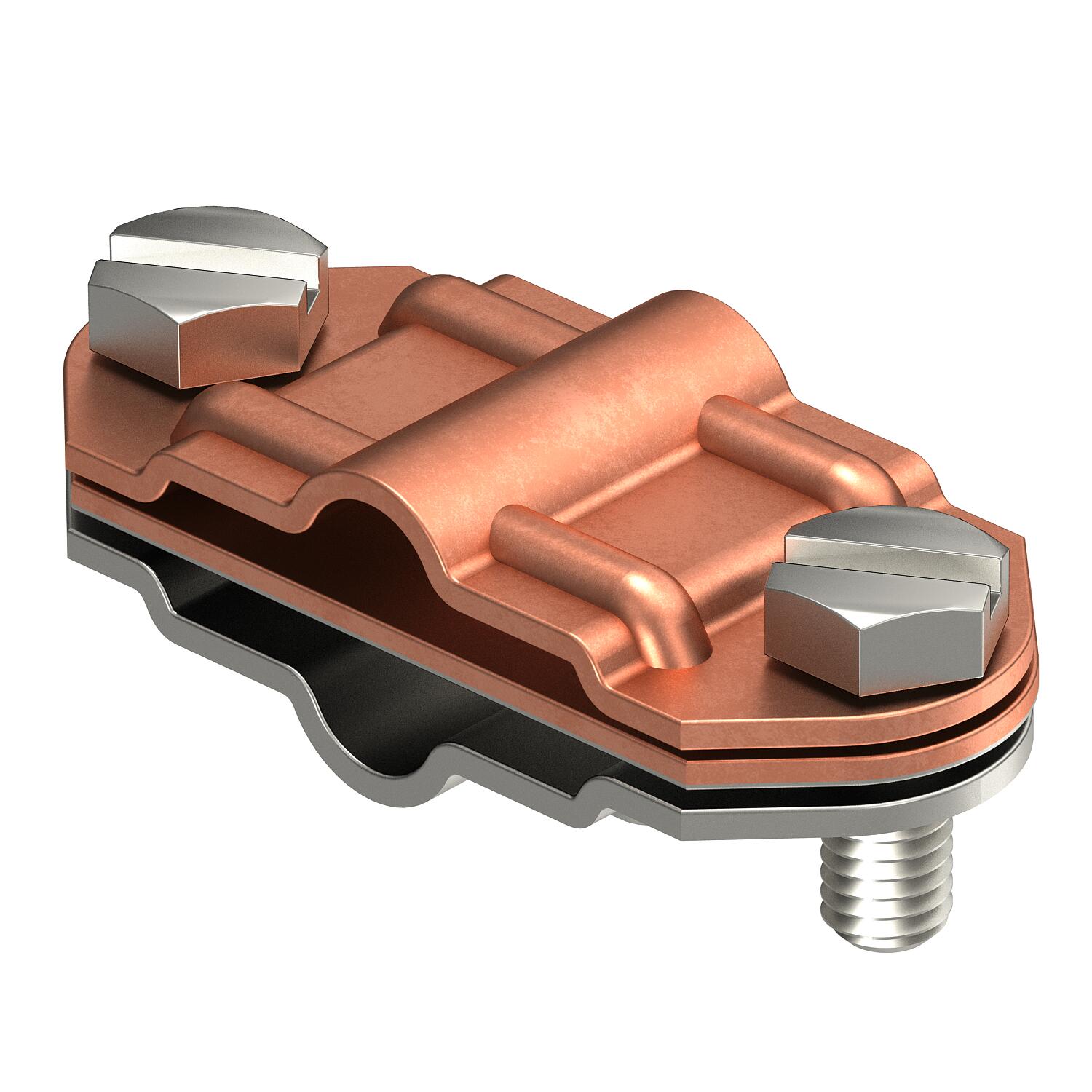

Bi-metal separating piece for Rd 8−10 and FL 30 mm

Item no. 5336376 | EAN 4012195424819

5336376 / 233 ZV
Rd 8-10/FL30 x Rd 8-10/FL30 mm
Product description
Product description
• For fitting round conductors Rd 8-10 to flat conductors FL 30
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate aluminium/copper, top section copper, bottom section stainless steel
Technical data

Technical data

Bimetal connector yes
Dimension FL/RdxFL/Rd
Fit Rd 8-10/FL30 x Rd 8-10/FL30 mm
Intermediate plate yes
Material Stainless steel
Material lower part VA
Material upper part Cu
Suitable for connection Miscellaneous
All types

All types

Types Fit Item no. Quantity SSU
233 ZV Rd 8-10/FL30 x Rd 8-10/FL30 mm 5336376
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 233 ZV / 5336376 , 0.06MB , pdf
Download
REACH Declaration of conformity 233 ZV / 5336376 , 0.12MB , pdf
Download
RoHS Declaration of conformity 233 ZV / 5336376 , 0.12MB , pdf
Download

233 ZV / 5336376
