BKK basic profile 104 FT, standard
Item no. 6070248 | EAN 4012196068234
- Product description
-

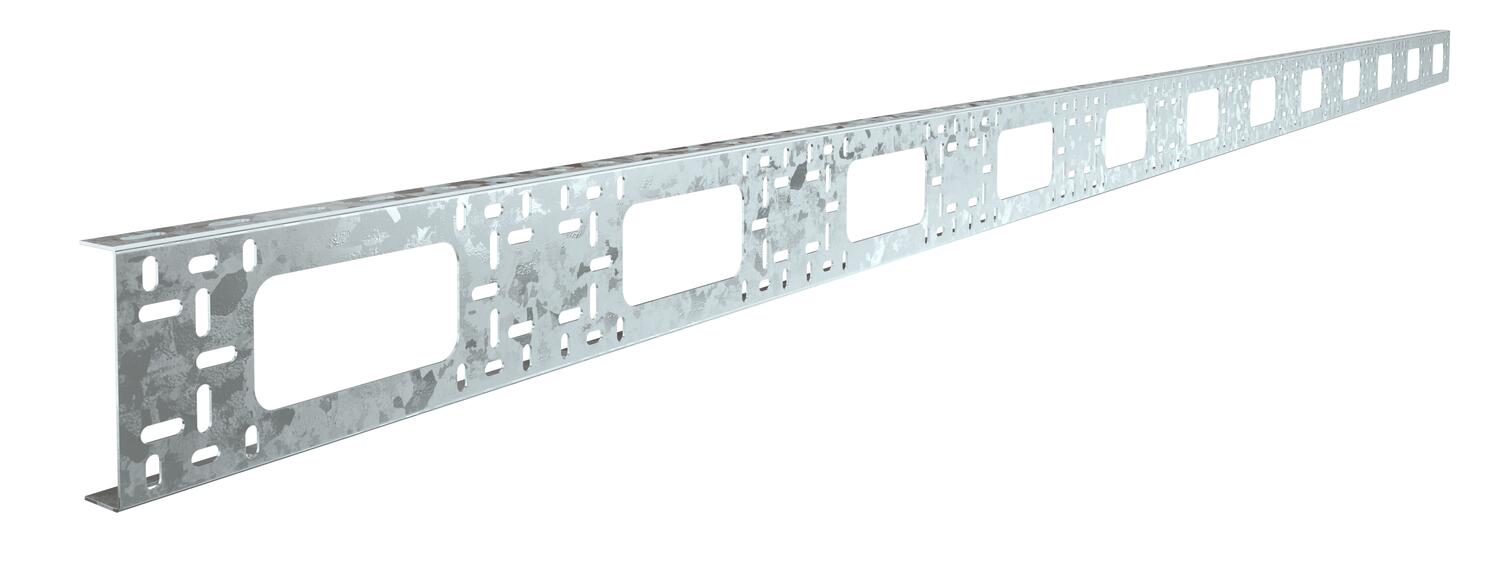

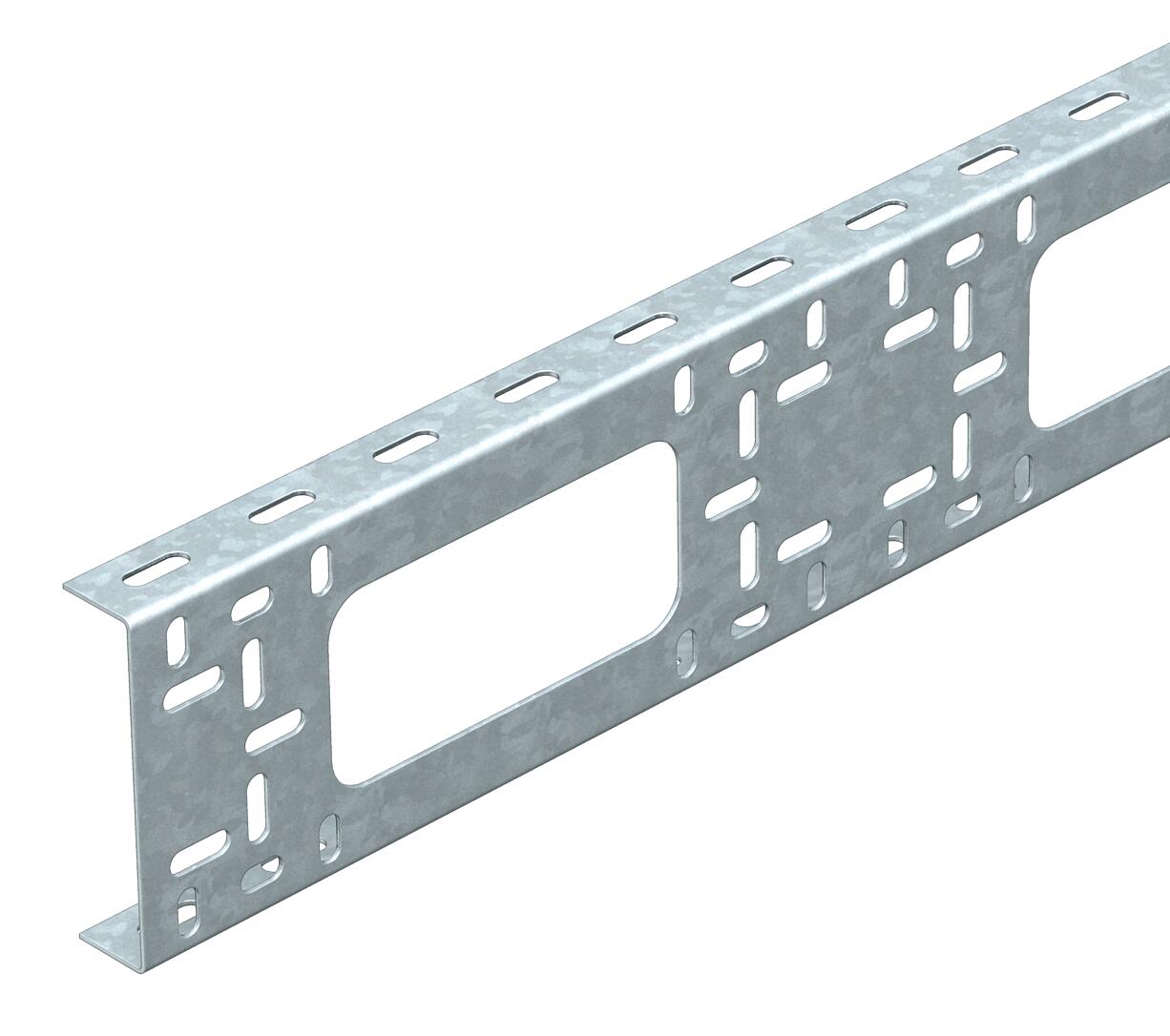

Product descriptionBKK basic profile, perforated, for creation of individual cable trays.
-
- Technical data
-
Technical data
Colour zinc Dimension 25x104x3000 Length 3000 mm Material Steel Mounting perforation in base yes Plate thickness 1,5 mm Side perforation yes Surface Hot-dip galvanised - All types
-
System accessories
Products Types Item no. Quantity SSU
Joint connector FT
SSV FT 6066046 25 piece
Adjustable connector DD
SV DD 6066941 50 piece Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet BKK 104 FT / 6070248 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BKK 104 FT / 6070248 , 0.13MB , pdfMounting instructions Mounting instructions Modular systems , 0.05MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
