BKK basic profile 150 FT, standard
Item no. 6070345 | EAN 4012196068296
- Product description
-
Product description

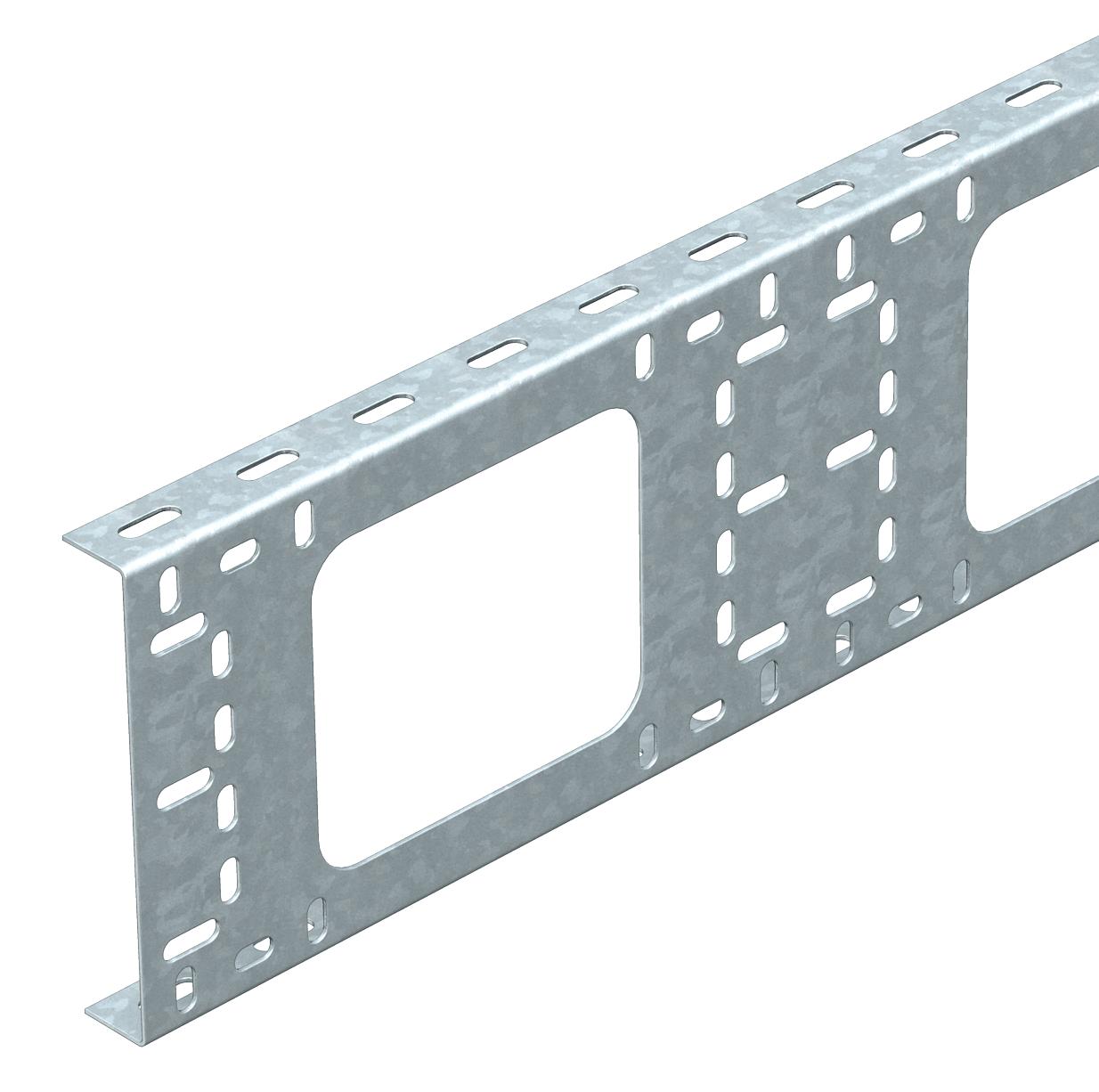

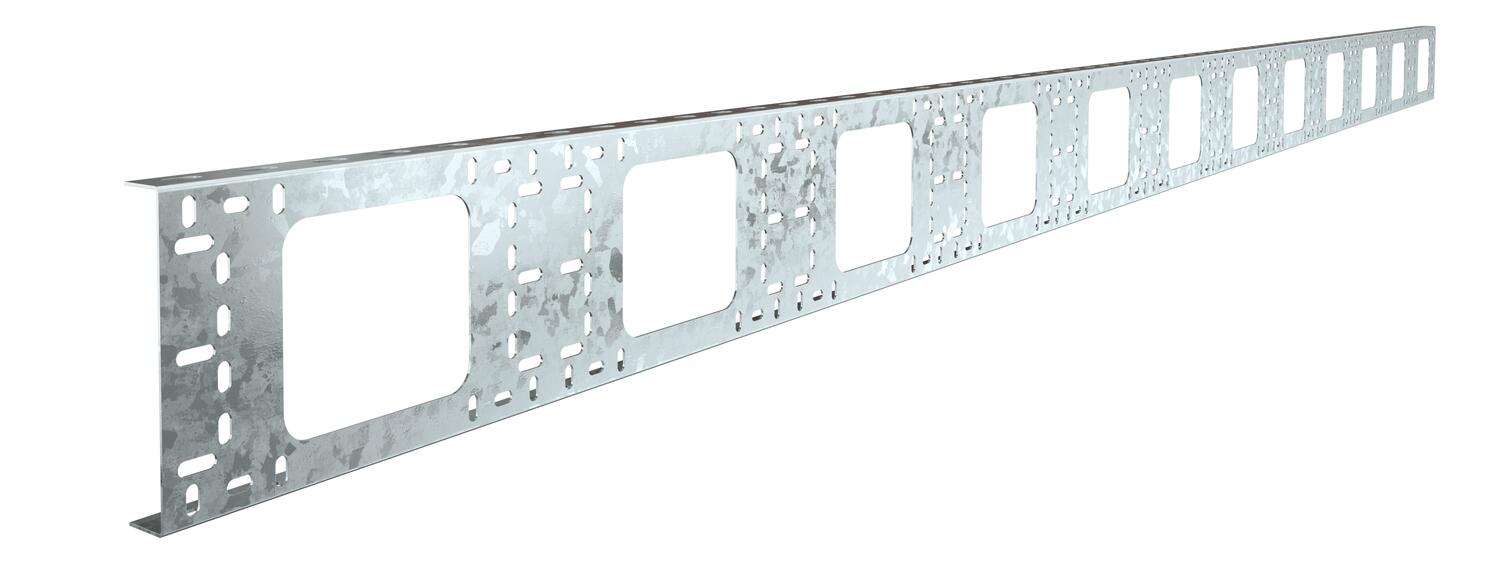

BKK basic profile, perforated, for creation of individual cable trays.
-
- Technical data
-
Technical data

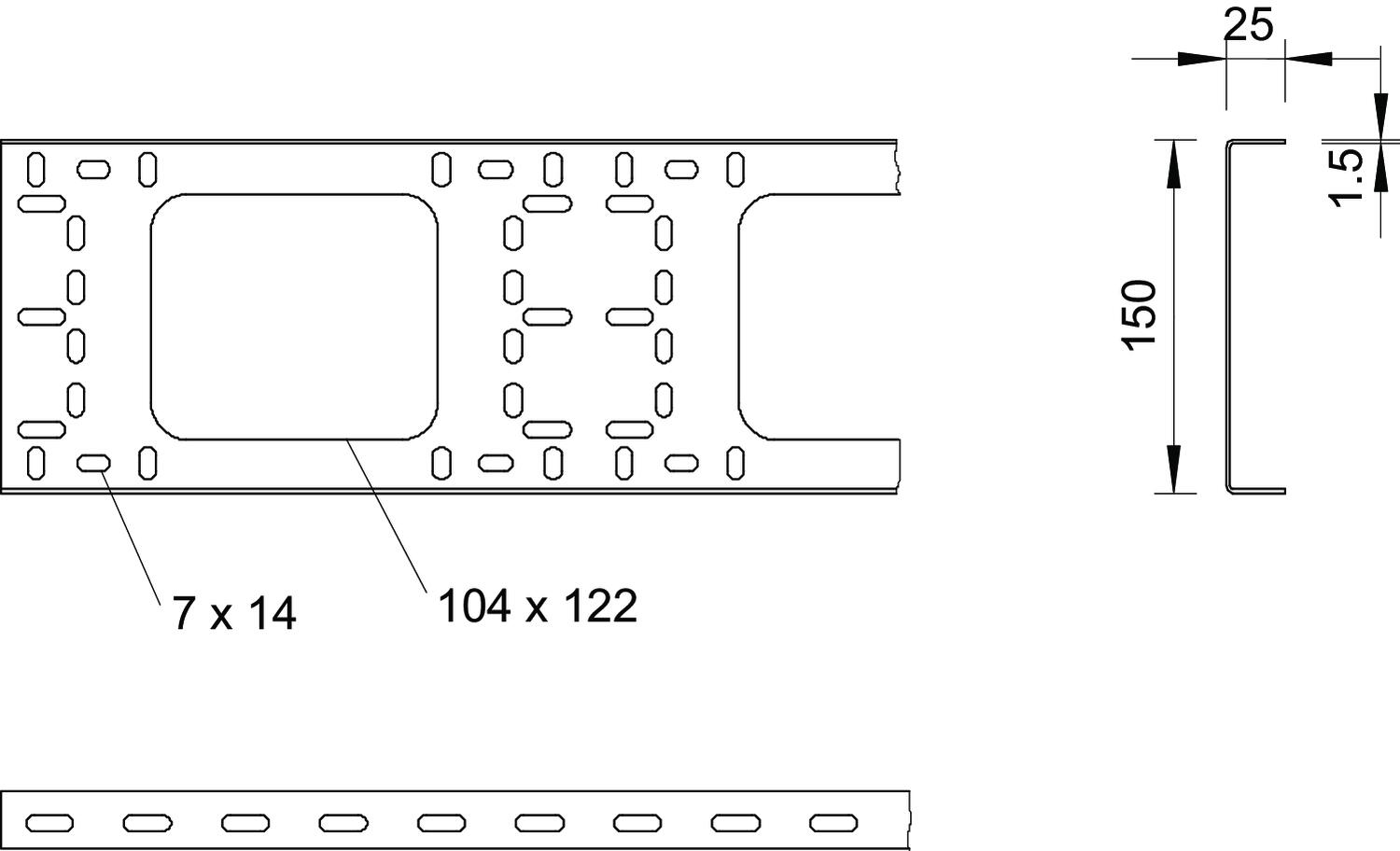

Dimension 25x150x3000 Length 3000 mm Material Steel Mounting perforation in base yes Plate thickness 1,5 mm Side perforation yes Surface Hot-dip galvanised - All types
-
System accessories
Products Types Item no. Quantity SSU
Joint connector FT
SSV FT 6066046 25 piece

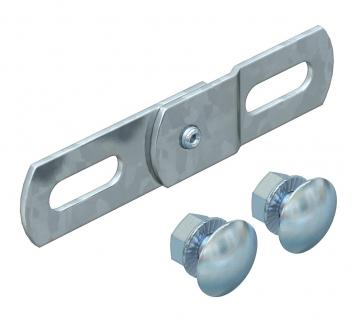

Adjustable connector DD
SV DD 6066941 50 piece Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
