BKK basic profile 200 A2, standard
Item no. 6070795 | EAN 4012196068531
- Product description
-
Product description

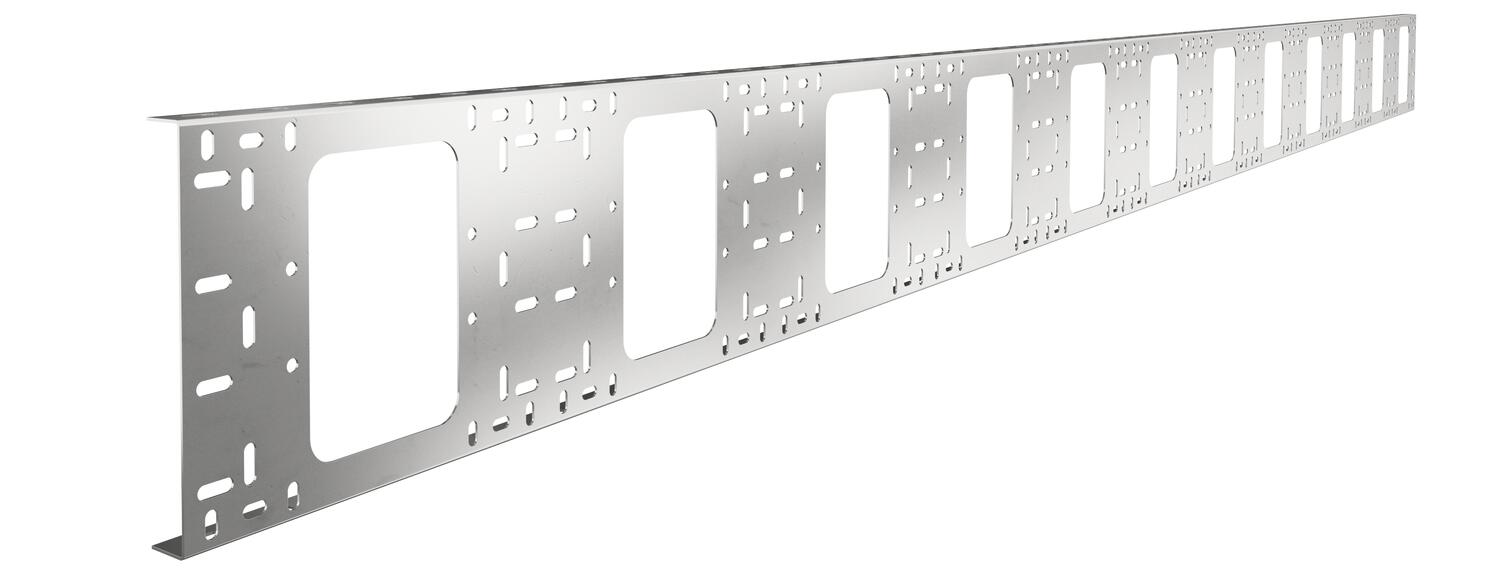

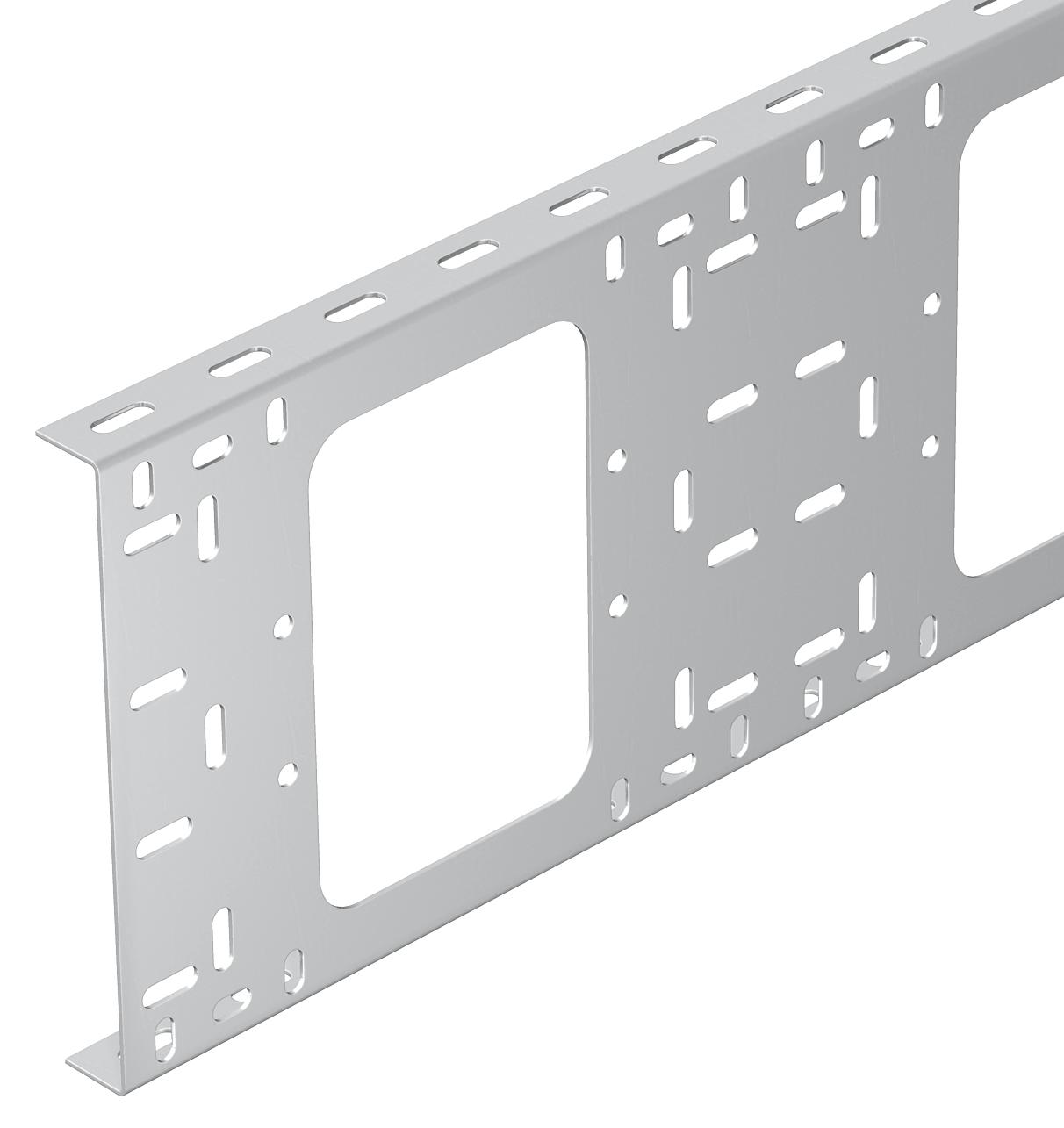

BKK basic profile for creation of individual cable trays.
-
- Technical data
-
Technical data

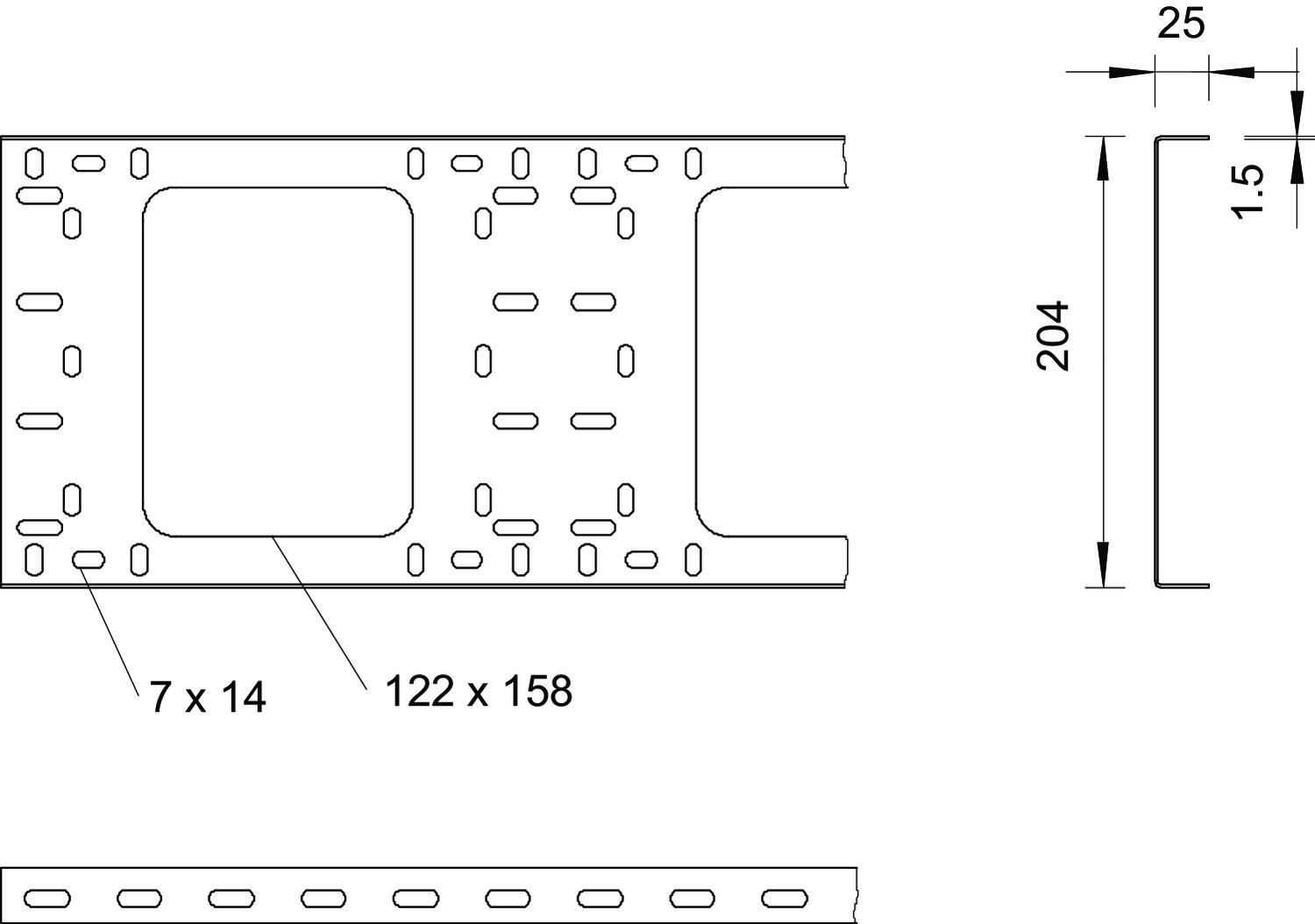

Dimension 25x204x3000 Length 3000 mm Material Stainless steel Mounting perforation in base yes Plate thickness 1,5 mm Side perforation yes Surface Bright, treated - All types
-
System accessories
Products Types Item no. Quantity SSU
Joint connector A2
SSV A2 6066054 25 piece
Adjustable connector A2
SV A2 6066933 50 piece Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 100 piece - Downloads
-
