BKRS FT support bracket
Item no. 6044545 | EAN 4012196695102
- Product description
-
Product description

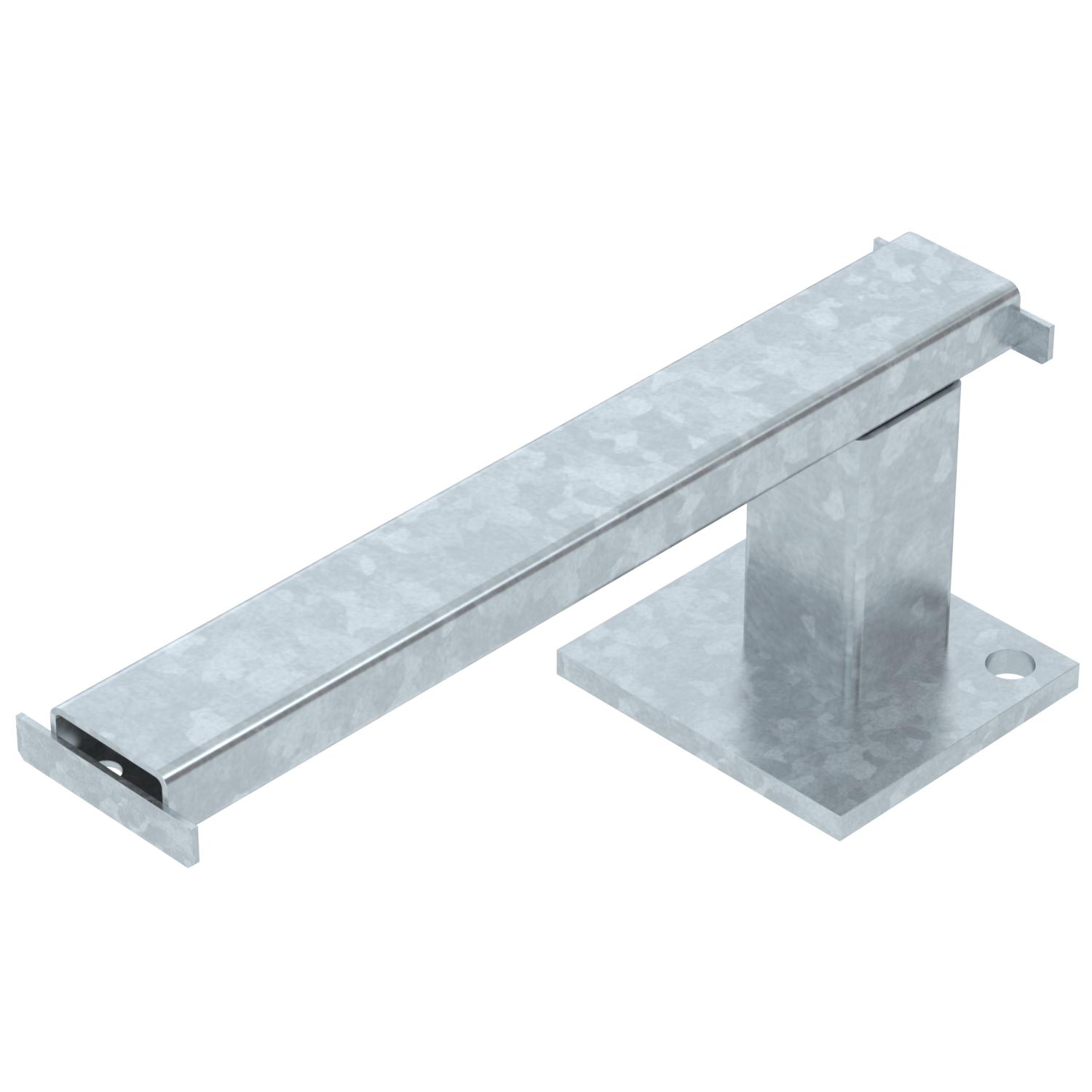

Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data

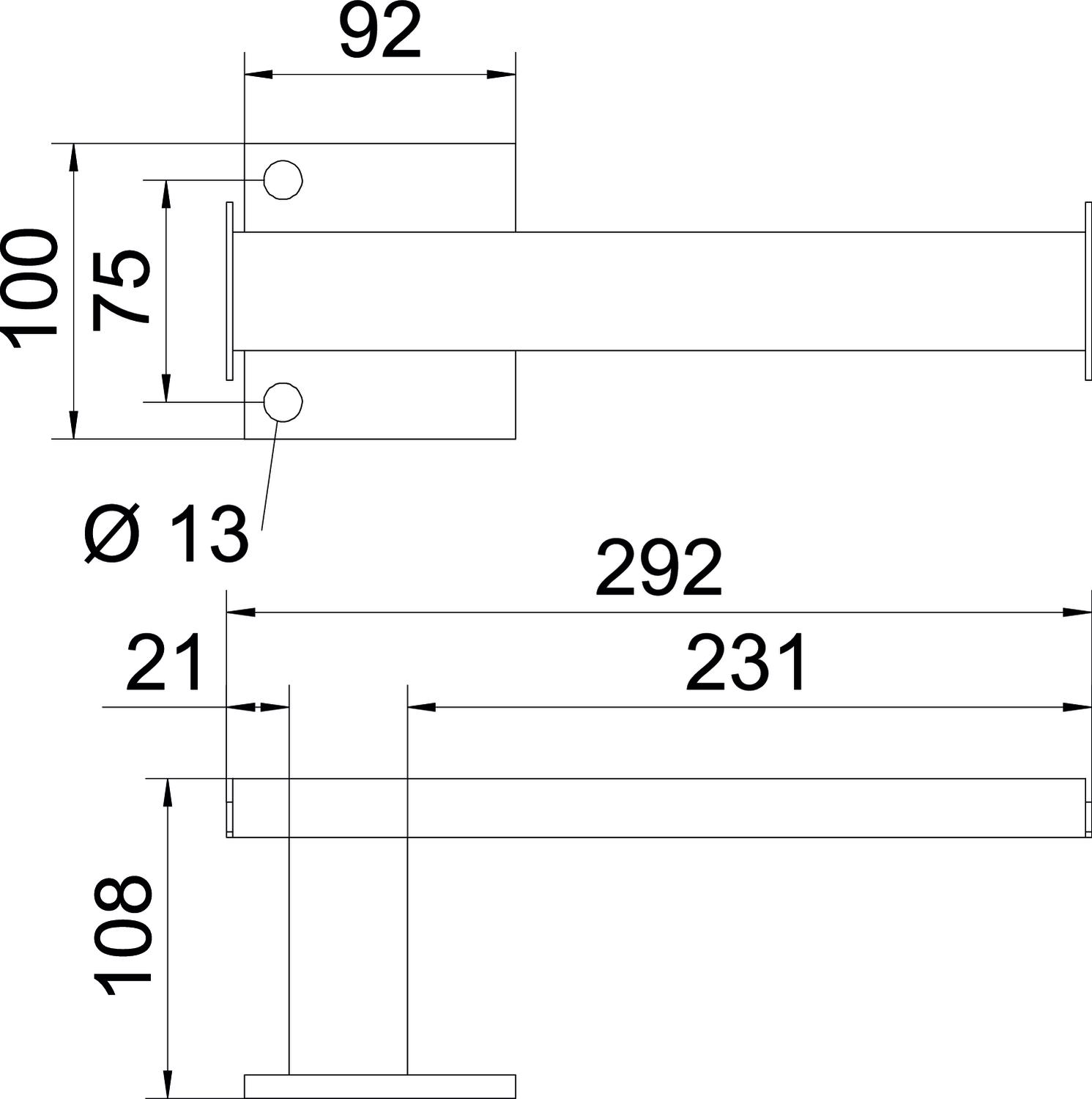

Dimension B=300 Dimension B 292 mm Dimension b1 23 mm Dimension b2 229 mm Dimension D 13 mm for width max. 300 mm for width min. 300 Height 108 mm Length 100 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Width 292 mm - All types
- Downloads
-
Data sheet STA BKRS 300 FT / 6044545 , 0.20MB , pdfDeclaration of conformity STA BKRS 300 FT / 6044545 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 300 FT / 6044545 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 300 FT / 6044545 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
