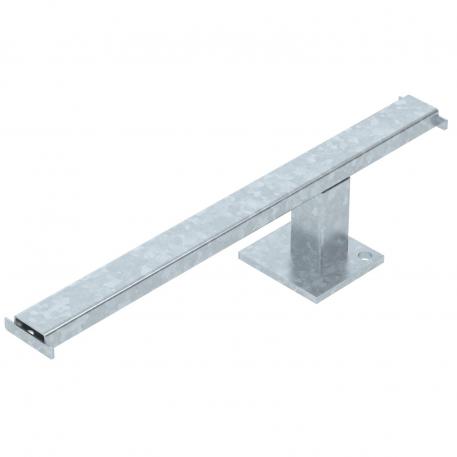

BKRS FT support bracket
Item no. 6044551 | EAN 4012196695126
- Product description
-
Product description

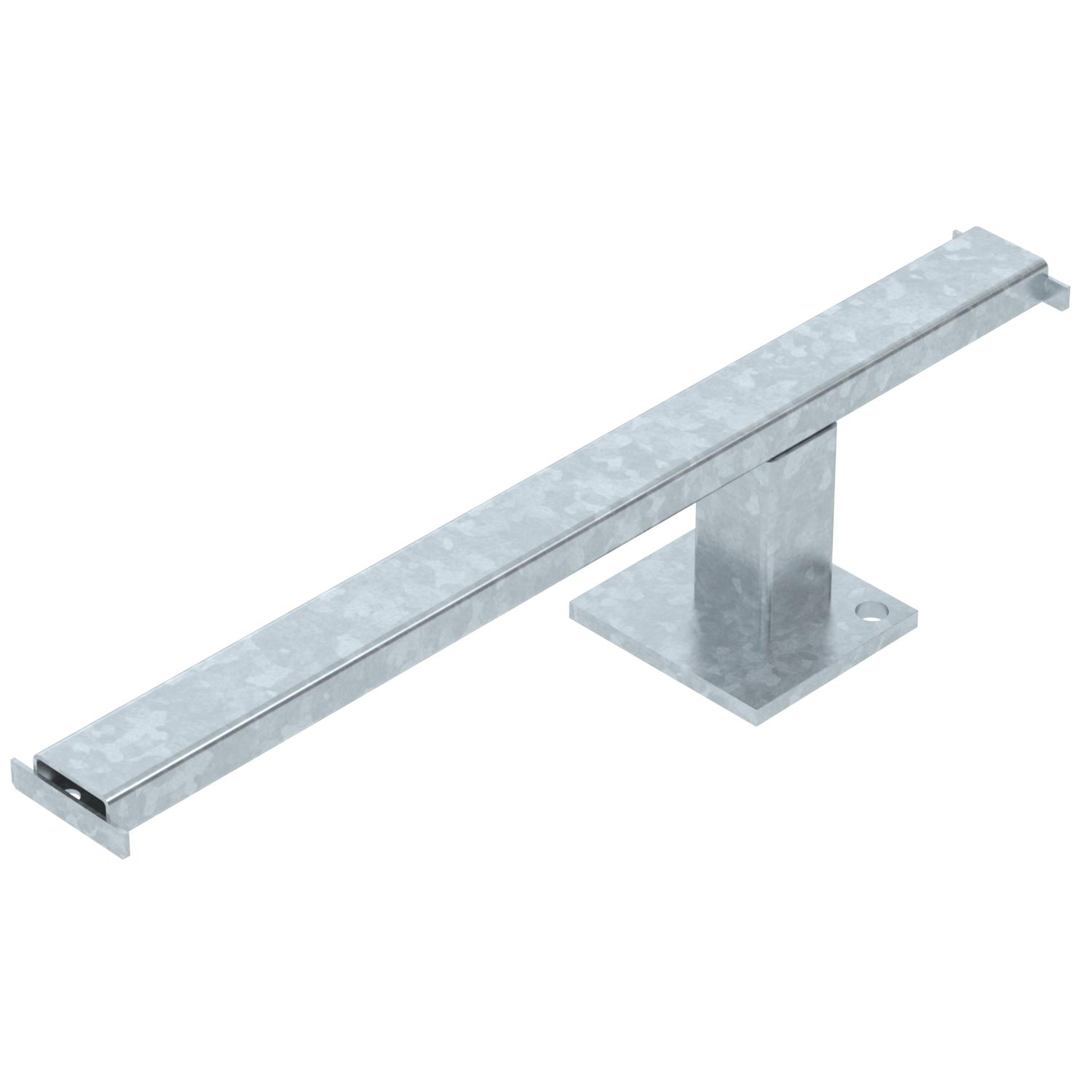

Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data

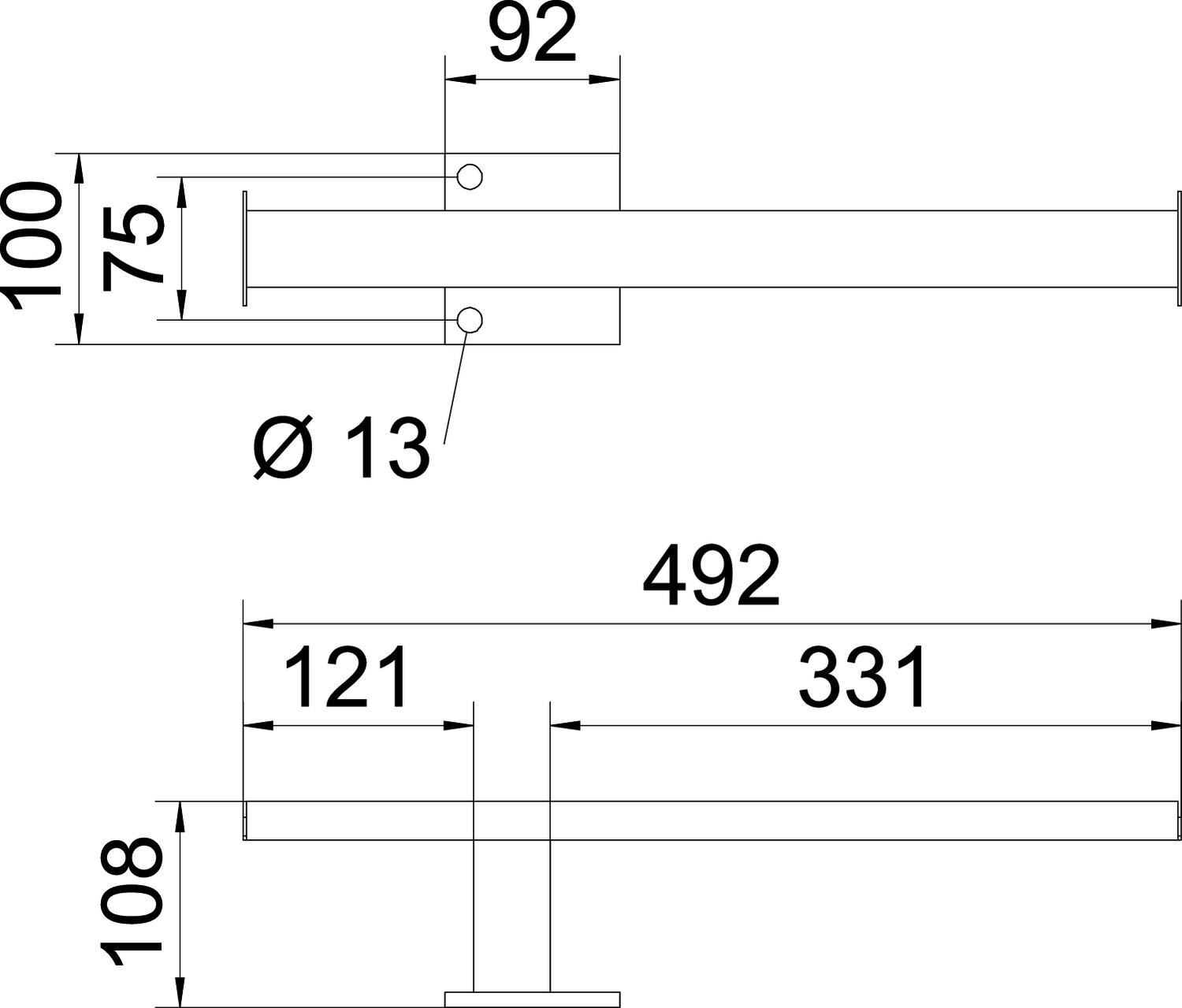

Dimension B=500 Dimension B 492 mm Dimension b1 123 mm Dimension b2 329 mm Dimension D 13 mm for width max. 500 mm for width min. 500 Height 108 mm Length 100 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Width 492 mm - All types
- Downloads
-
Data sheet STA BKRS 500 FT / 6044551 , 0.16MB , pdfDeclaration of conformity STA BKRS 500 FT / 6044551 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 500 FT / 6044551 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 500 FT / 6044551 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
