BKRS FT Z support
Item no. 6044601 | EAN 4012196640669
- Product description
-
Product descriptionZ support as a stand-off of the walkable BKRS cable tray system on the floor. Fastening of protection plates with chequer plate screws.
-
- Technical data
-
Technical data

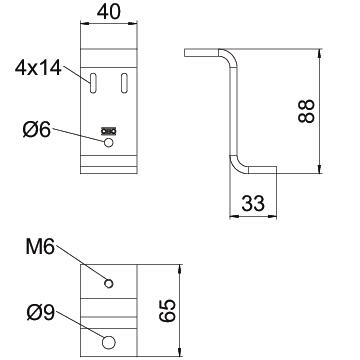

Colour zinc Dimension 65x40x88 Dimension B 88 mm Height 88 mm Length 65 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Width 40 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet ZST 100 BKRS FT / 6044601 , 0.15MB , pdfEU declaration of conformity ZST 100 BKRS FT / 6044601 , 0.10MB , pdfREACH Declaration of conformity ZST 100 BKRS FT / 6044601 , 0.27MB , pdfRoHS Declaration of conformity ZST 100 BKRS FT / 6044601 , 0.28MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
