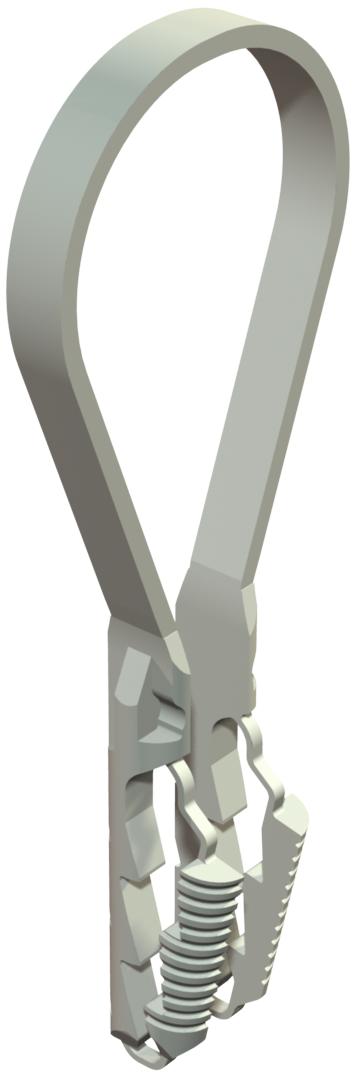

BKS clamp clip

Item no. 2148862 | EAN 4012195640035

Product description
Product description
For cables, flexible pipes and all kinds of insulating and armoured steel pipes, suitable for concrete, calcareous limestone and full brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 40 mm
Clamping range D, min. 20 mm
Colour Light grey; RAL 7035
Dimension 20-40mm

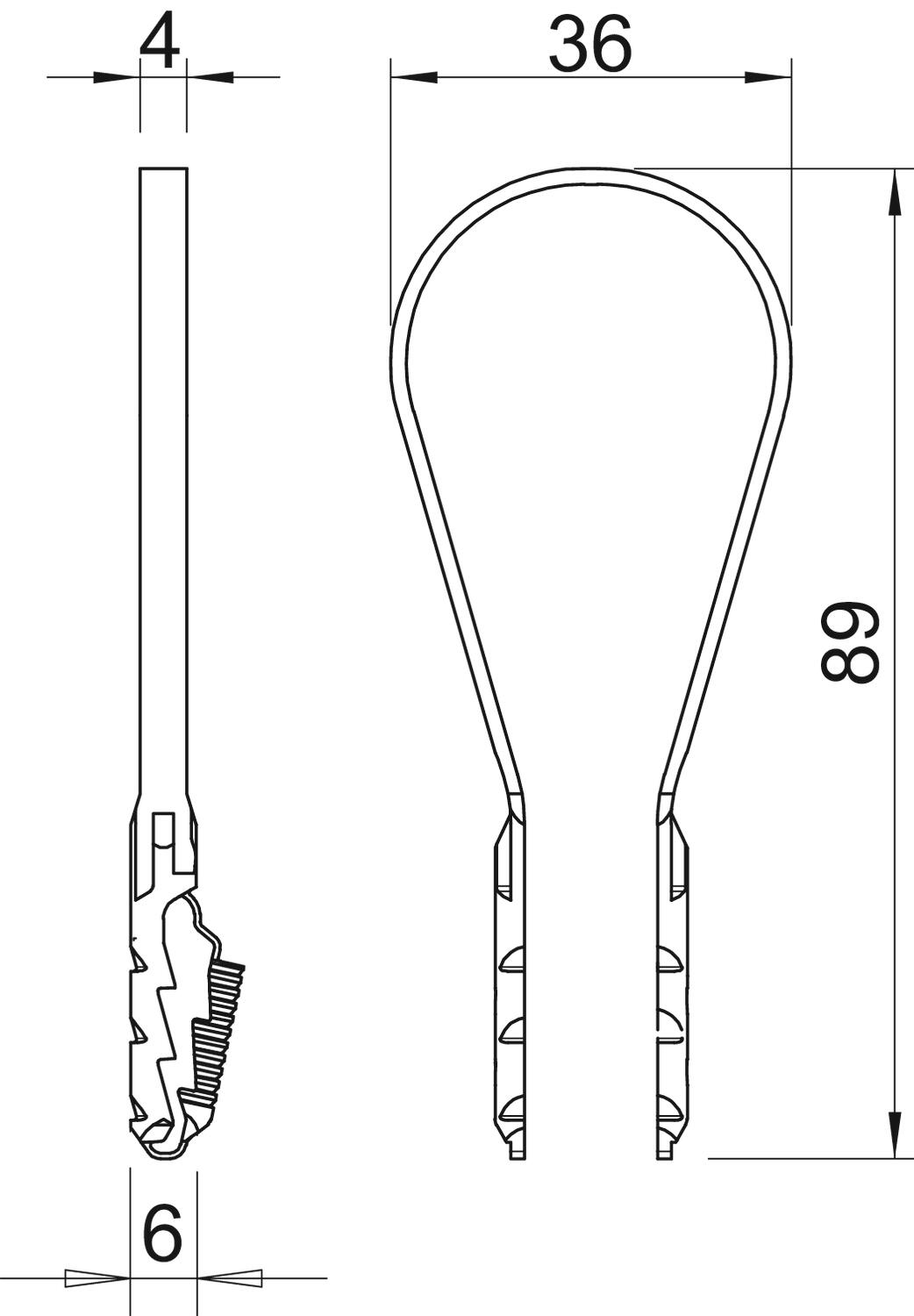

Dimension D 36 mm
Dimension L 89 mm
Drill hole depth 70 mm
Drill hole diameter, min. 6 mm
Fastening type Plug fastening
Halogen-free yes
Material Polyamide
Pull-out value 500 N
Version for Closed
All types

All types

Types Drill hole depth Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
1973 3-13 LGR 50 mm 3 mm 13 mm 2148803
100 piece
1973 8-28 LGR 65 mm 8 mm 28 mm 2148846
100 piece
1973 20-40 LGR 70 mm 20 mm 40 mm 2148862
100 piece
Downloads

Download

Download

EU declaration of conformity 1973 20-40 LGR / 2148862 , 0.06MB , pdf
Download
REACH Declaration of conformity 1973 20-40 LGR / 2148862 , 0.12MB , pdf
Download
RoHS Declaration of conformity 1973 20-40 LGR / 2148862 , 0.12MB , pdf
Download

1973 20-40 LGR / 2148862
