- Product description
-
Product description

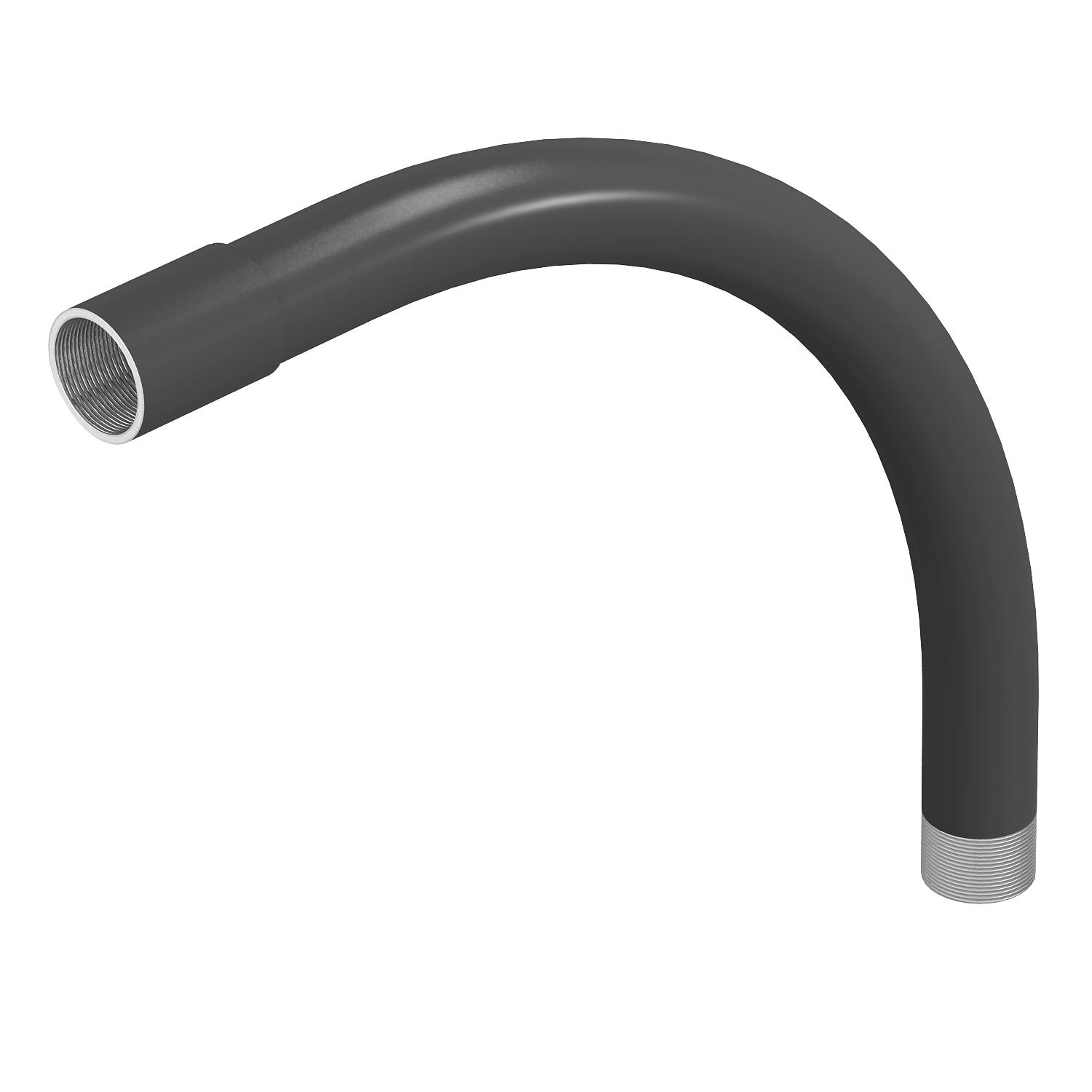

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
- Technical data
-
Technical data

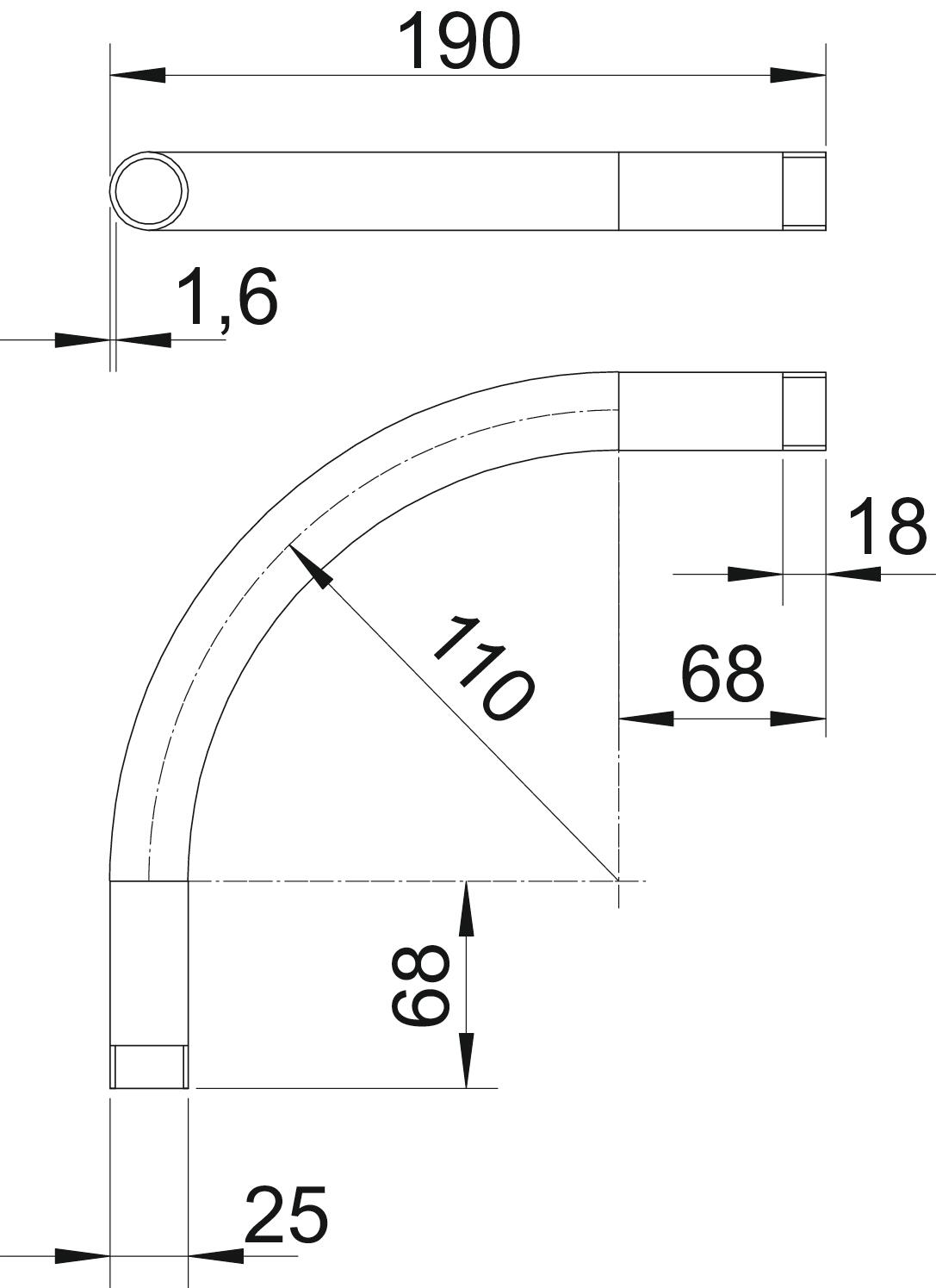

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension M25x1,5 Dimension A 68 mm Dimension B 190 mm Dimension D 25 mm Dimension l 18 mm Dimension m (mm) M25 Dimension R 110 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 25 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Thread M25x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM25 SW / 2046795 , 0.27MB , pdf
English
