Black powder-coated steel bend, without thread

Item no. 2046825 | EAN 4012196388073

Product description
Product description

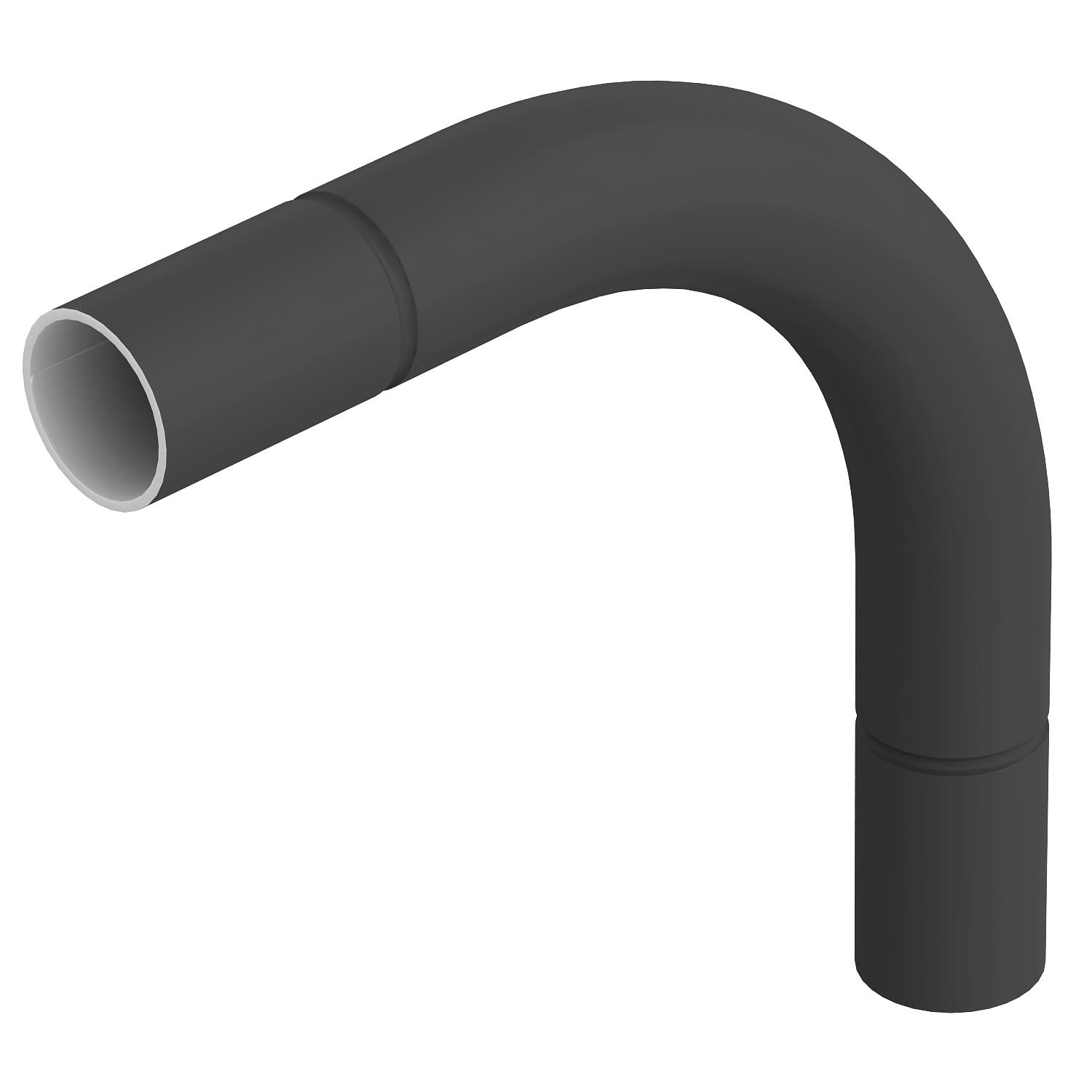

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

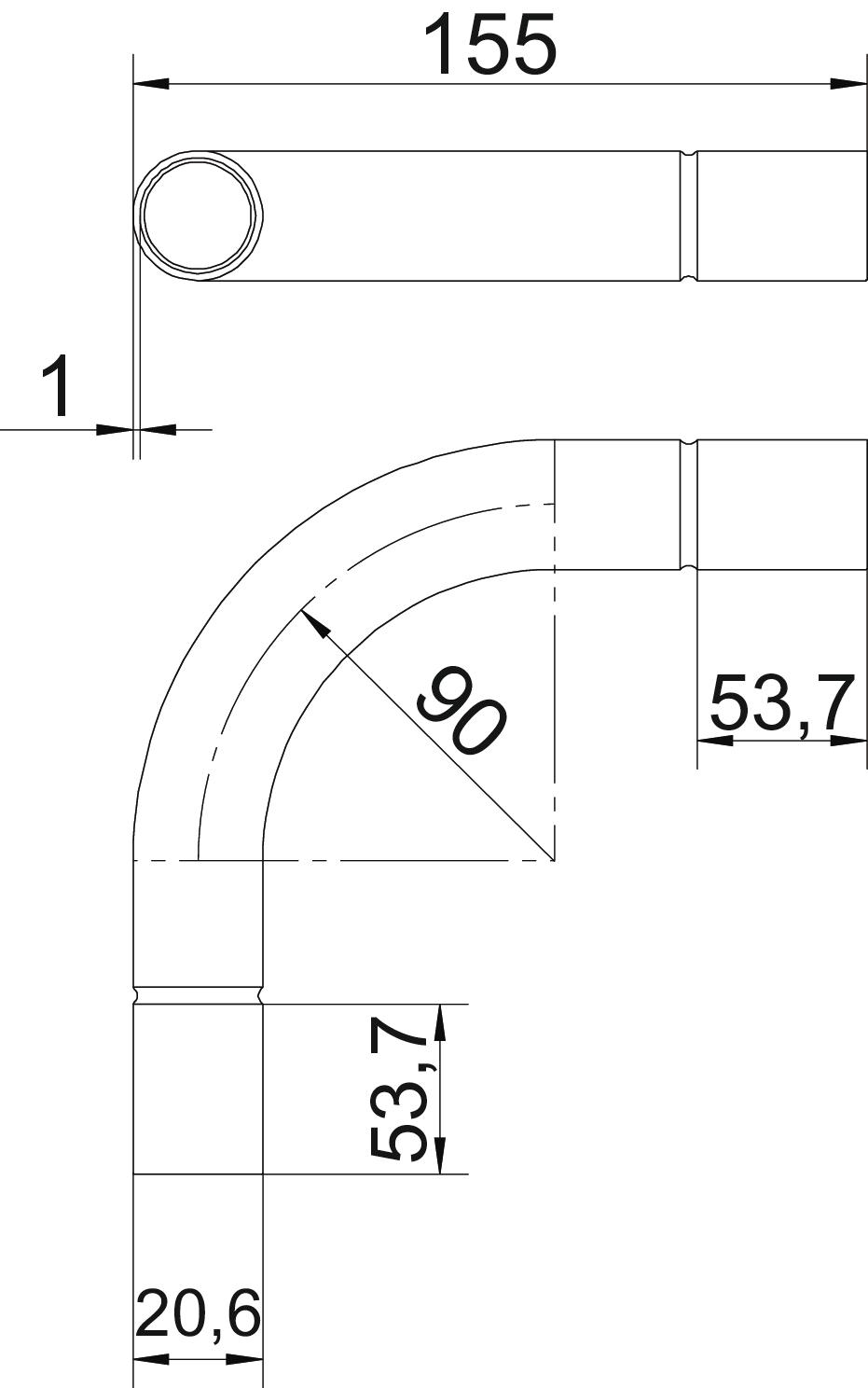

Angle of the bend 90 °
Brushed surface no
Colour Jet black; RAL 9005
Dimension Ø20mm
Dimension A 53,7 mm
Dimension B 155 mm
Dimension d 20,6 mm
Dimension D 22,6 mm
Dimension l 30 mm
Dimension m (mm) M20
Dimension R 90 mm
Dimension t 1 mm
Flexible no
For nominal pipe diameter 20 mm
Halogen-free no
Material Steel
Polished surface no
Surface PES50 - Polyester/epoxy
Two-part no
Version for Connector
With inspection opening and lid no
With sleeve yes
All types

All types

Types For nominal pipe diameter Item no. Quantity SSU
SBN16 SW 16 mm 2046824
15 piece
SBN20 SW 20 mm 2046825
25 piece
SBN25 SW 25 mm 2046826
25 piece
SBN32 SW 32 mm 2046827
20 piece
SBN40 SW 40 mm 2046828
15 piece
SBN50 SW 50 mm 2046829
5 piece
SBN63 SW 63 mm 2046830
3 piece
