- Product description
-

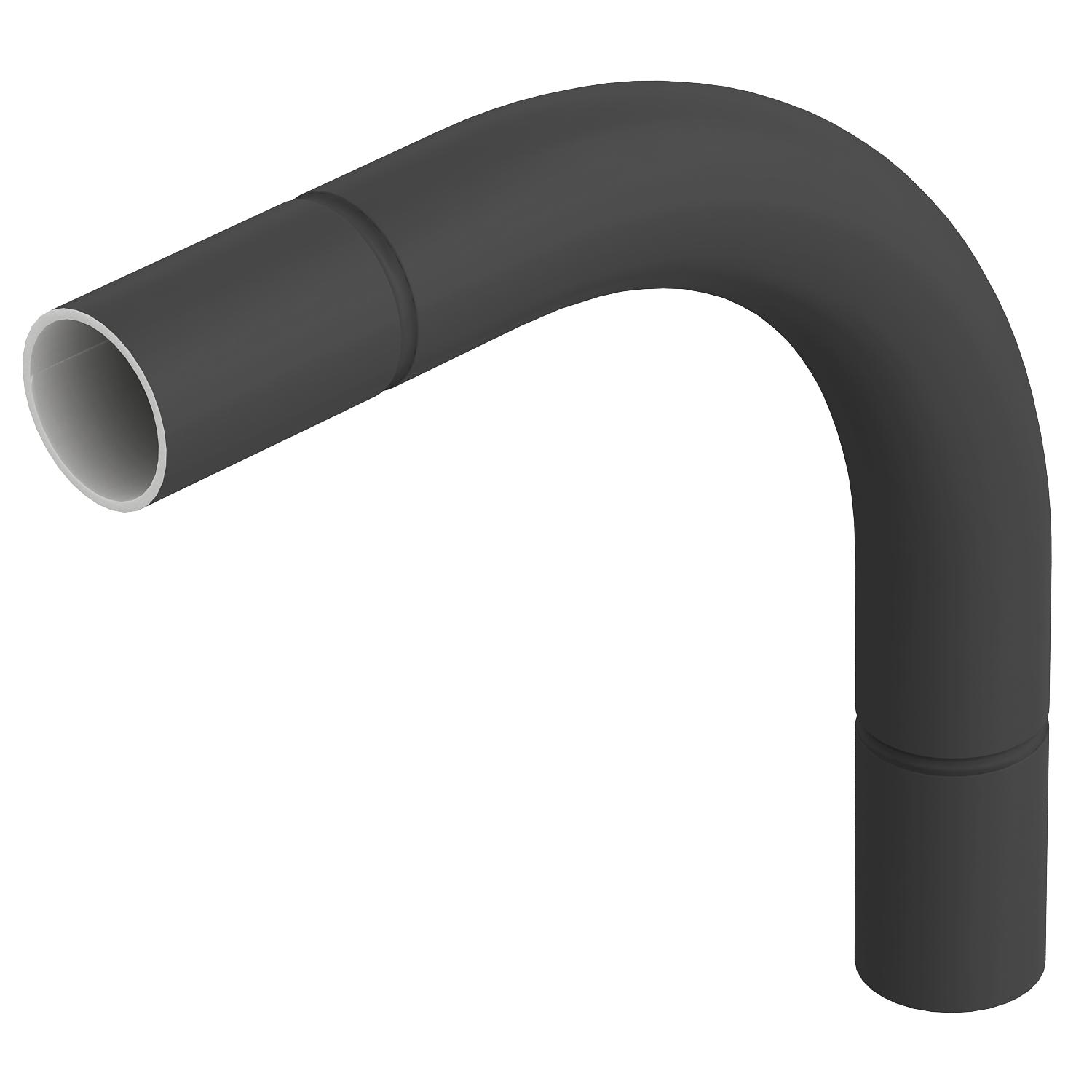

Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

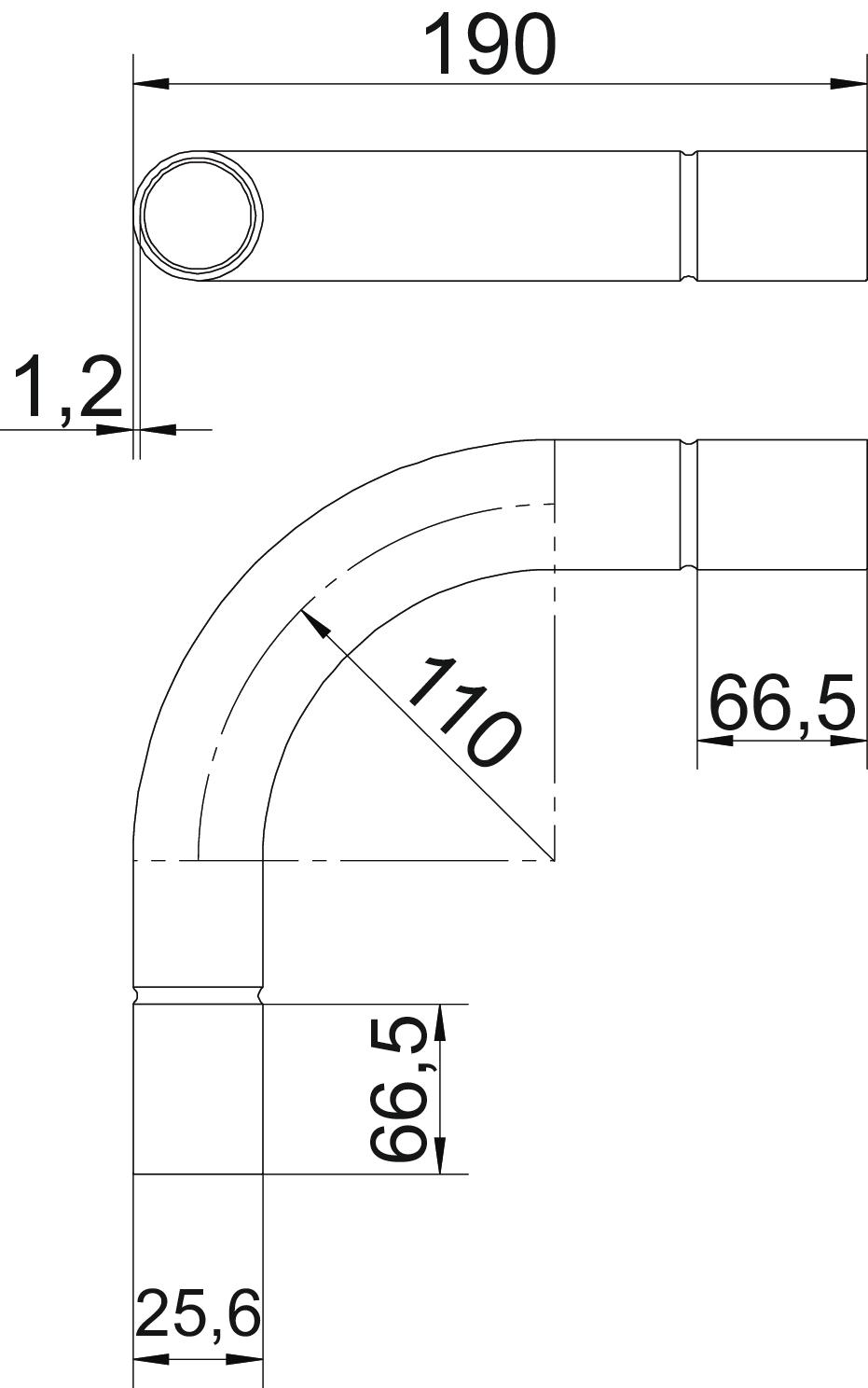

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 CO₂ Footprint (GWP) Cradle-to-Gate 0,564 kg CO₂e / 1 Piece Dimension Ø25mm Dimension A 66,5 mm Dimension B 191 mm Dimension d 25,5 mm Dimension D 28 mm Dimension l 40 mm Dimension m (mm) M25 Dimension R 110 mm Dimension t 1,2 mm Flexible no For nominal pipe diameter 25 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN25 SW / 2046826 , 0.20MB , pdfREACH Declaration of conformity SBN25 SW / 2046826 , 0.12MB , pdfRoHS Declaration of conformity SBN25 SW / 2046826 , 0.12MB , pdf
