- Product description
-
Product description

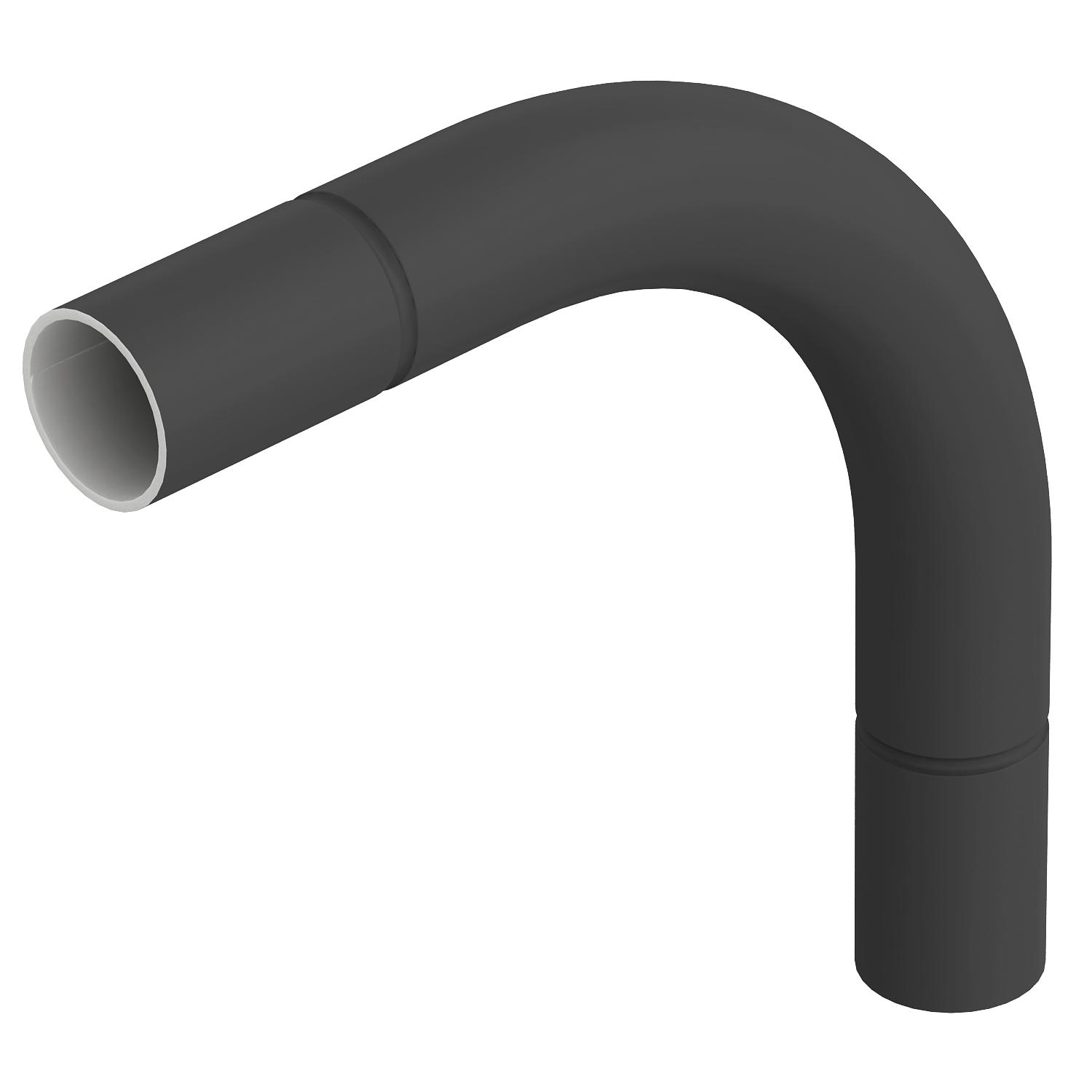

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

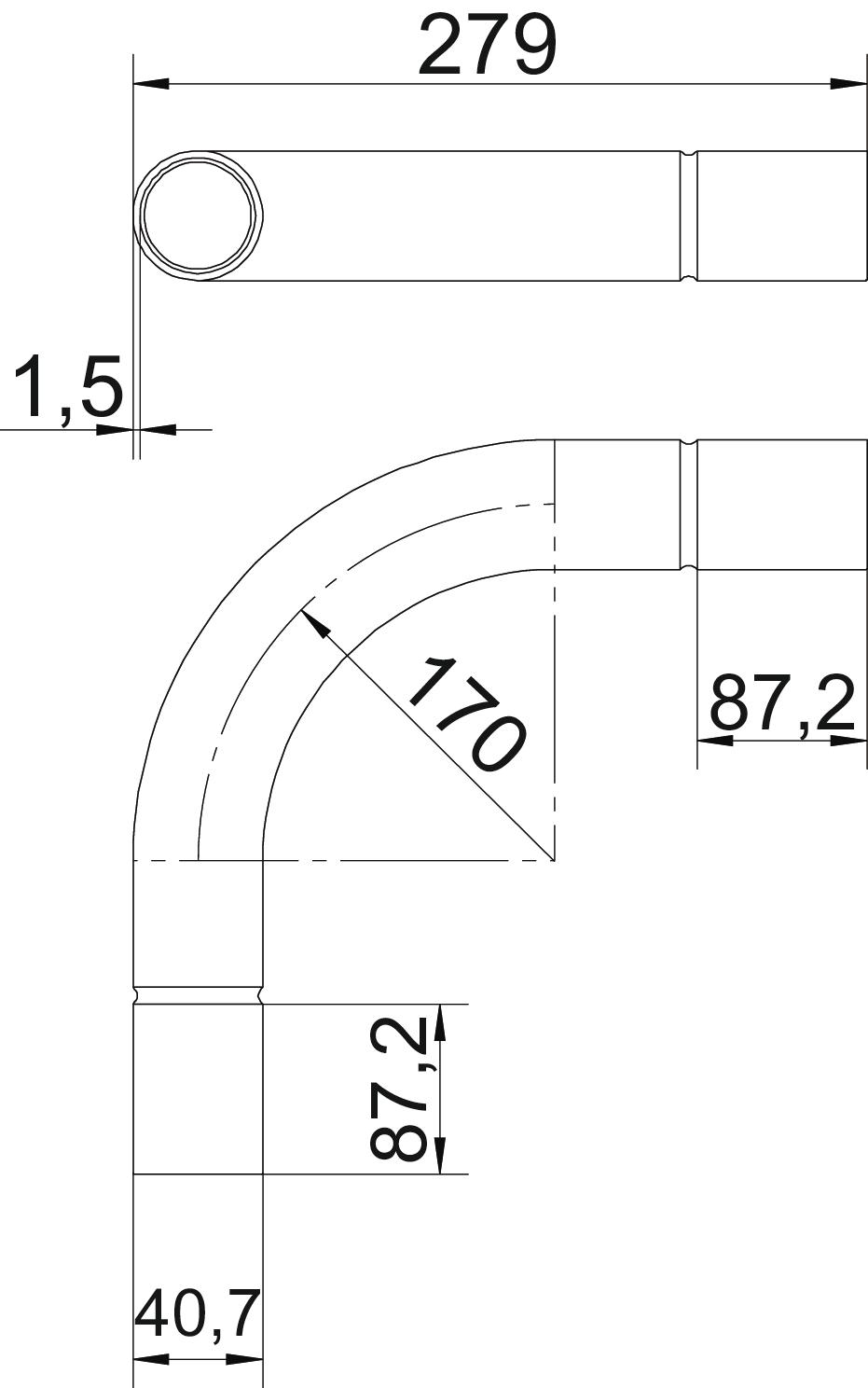

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension Ø40mm Dimension A 87,2 mm Dimension B 279 mm Dimension d 40,7 mm Dimension D 43,7 mm Dimension l 50 mm Dimension m (mm) M40 Dimension R 170 mm Dimension t 1,5 mm Flexible no For nominal pipe diameter 40 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN40 SW / 2046828 , 0.19MB , pdfREACH Declaration of conformity SBN40 SW / 2046828 , 0.12MB , pdfRoHS Declaration of conformity SBN40 SW / 2046828 , 0.12MB , pdf
