- Product description
-
Product description

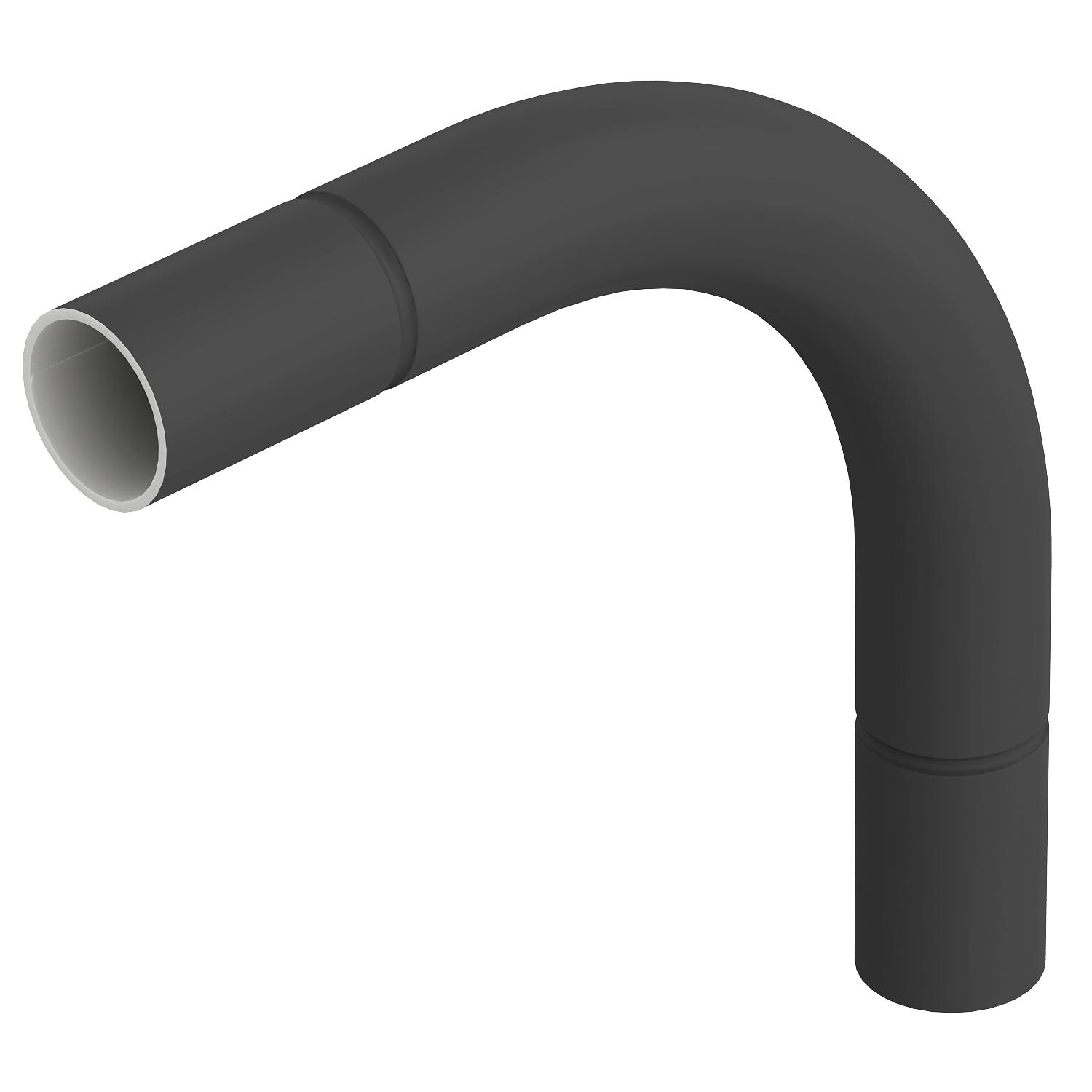

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

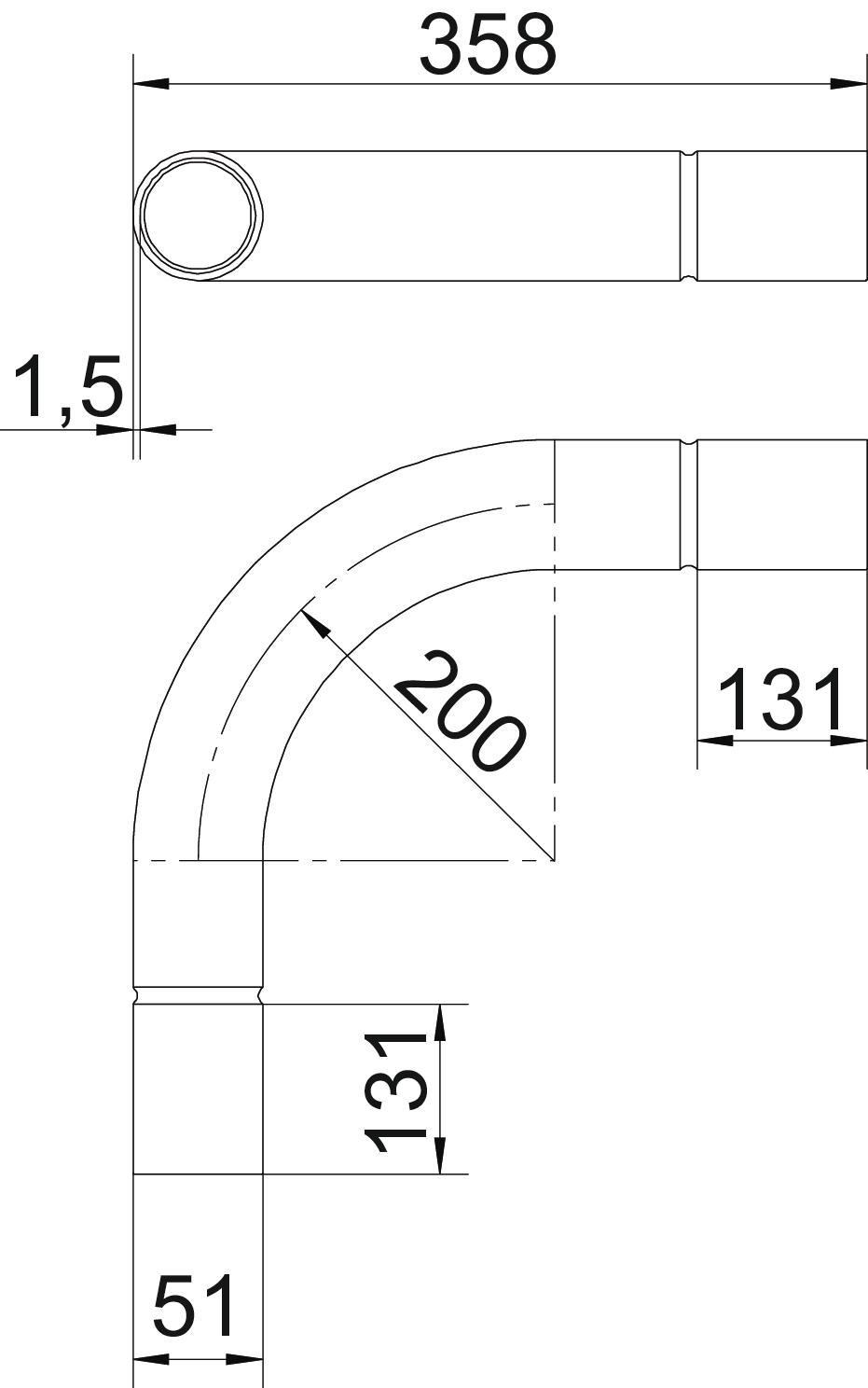

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension Ø50mm Dimension A 131 mm Dimension B 358 mm Dimension D 54 mm Dimension d 51 mm Dimension l 60 mm Dimension m (mm) M50 Dimension R 200 mm Dimension t 1,5 mm Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN50 SW / 2046829 , 0.22MB , pdfREACH Declaration of conformity SBN50 SW / 2046829 , 0.12MB , pdfRoHS Declaration of conformity SBN50 SW / 2046829 , 0.12MB , pdf
