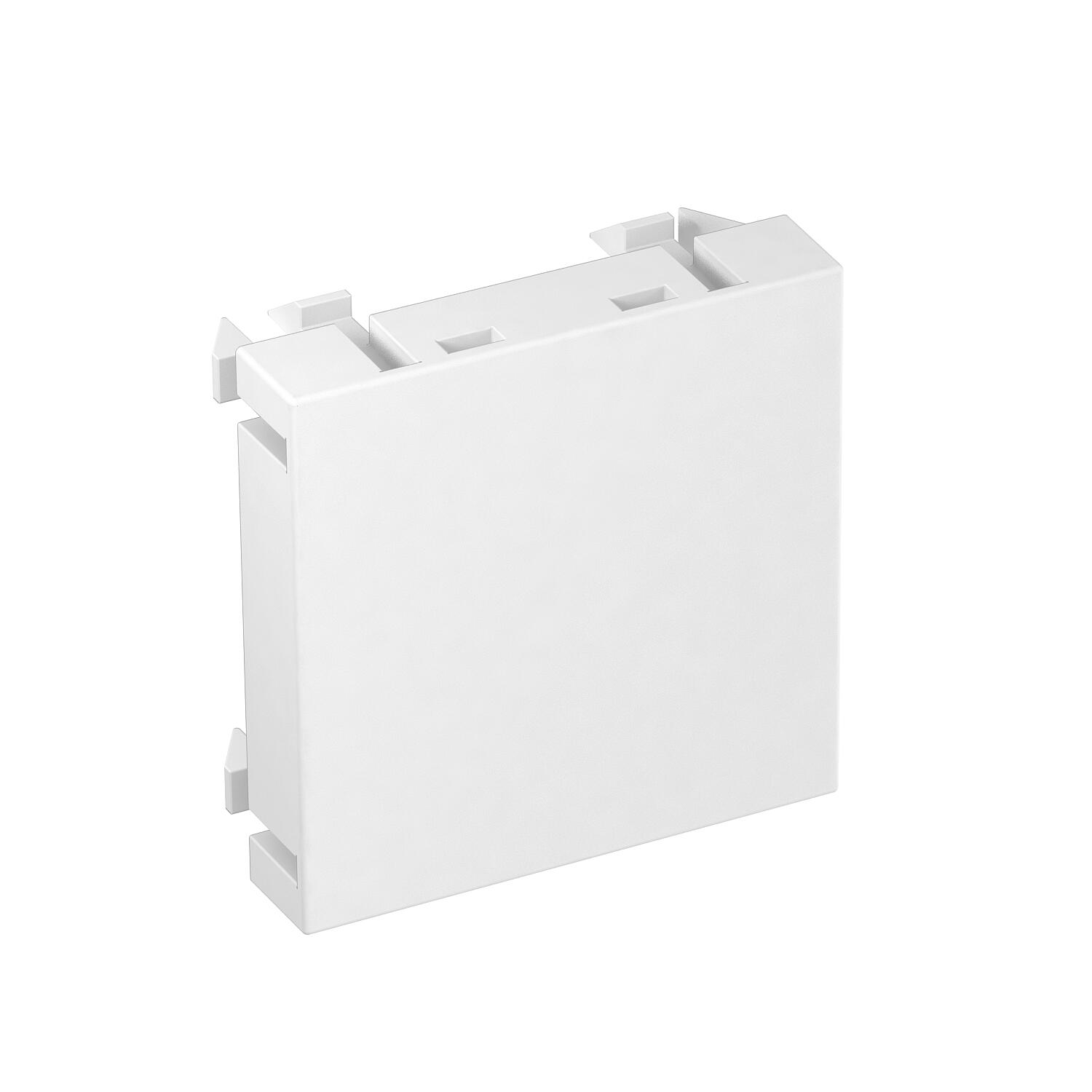

Blanking cover, 1 module, pure white
Item no. 6117406 | EAN 4012196117499
- Product description
-
Product descriptionBlanking cover for closing off empty spaces for a device (one module).
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
-
- Technical data
-
Technical data

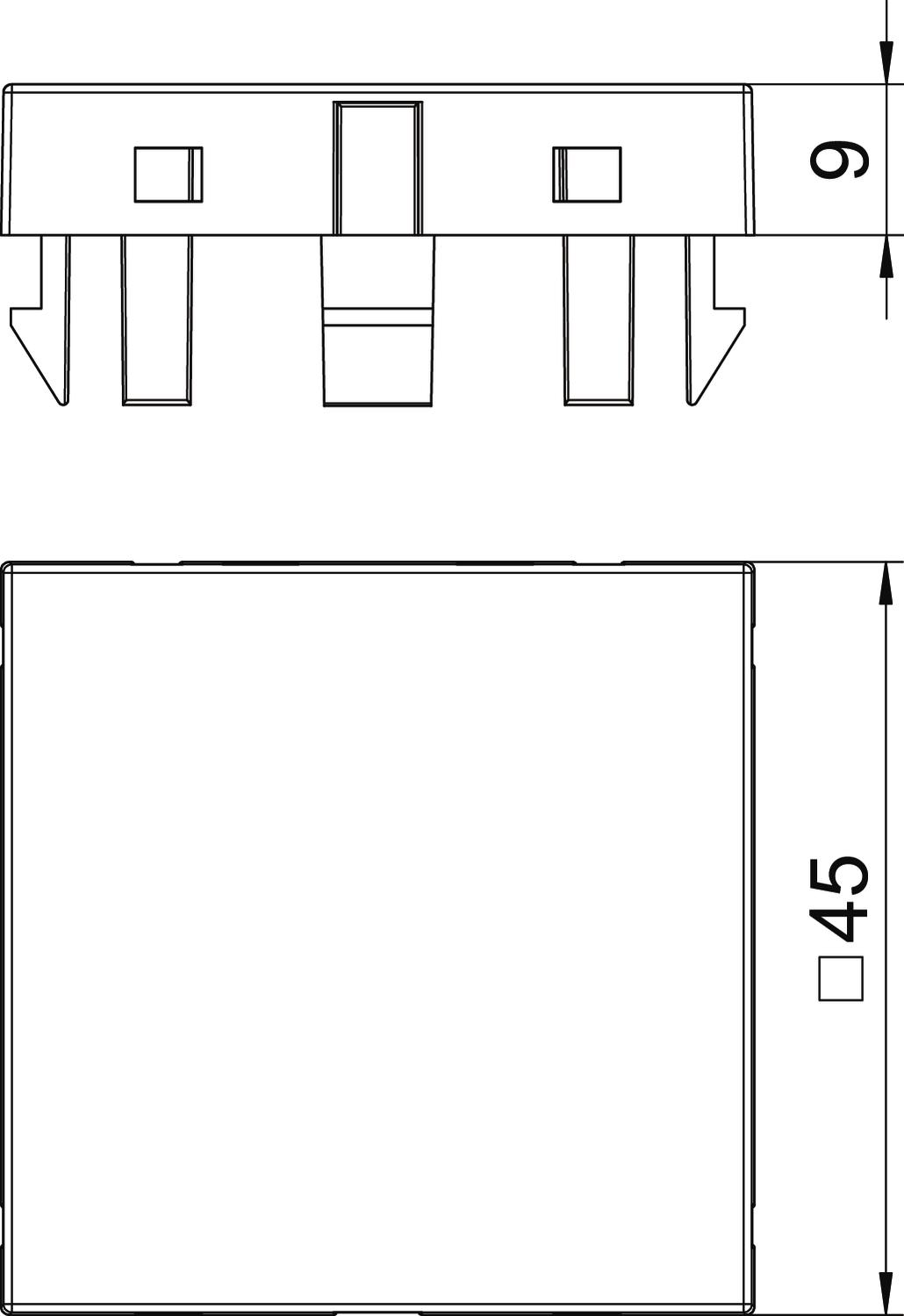

Antibacterial treatment no Changeable lense/symbol no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,061 kg CO₂e / 1 Piece Depth 9 mm Dimension 45x45mm Fastening type Clamp fastening Flush-mounted version yes Halogen-free no Height 45 mm Hinged cover no Mounting direction Horizontal Printed push-button label Without Protection rating Other Scannable symbol/barrier-free [Bitte prüfen, ob so gemeint. Ist das technische Scannen gemeint oder aber das Fühlen vom Symbol no Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no Use of cover/operating element for installation switch programme Panel Version for cover/operating element for installation switch programme Other Width 45 mm - All types
- Downloads
-
Data sheet ADP-B RW1 / 6117406 , 0.22MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ADP-B RW1 / 6117406 , 0.06MB , pdfREACH Declaration of conformity ADP-B RW1 / 6117406 , 0.12MB , pdfRoHS Declaration of conformity ADP-B RW1 / 6117406 , 0.12MB , pdfNo invitation to tender text is available for this product.
