- Product description
-

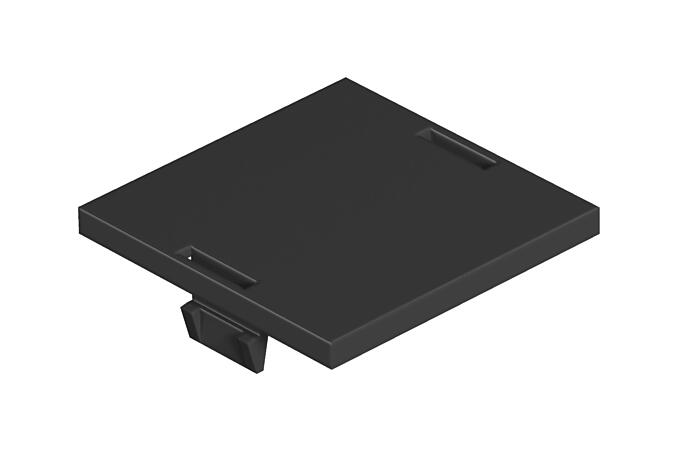

Product descriptionBlanking cover for closing off a square Modul 45 mounting opening in a mounting box cover plate.
- Technical data
-
Technical data

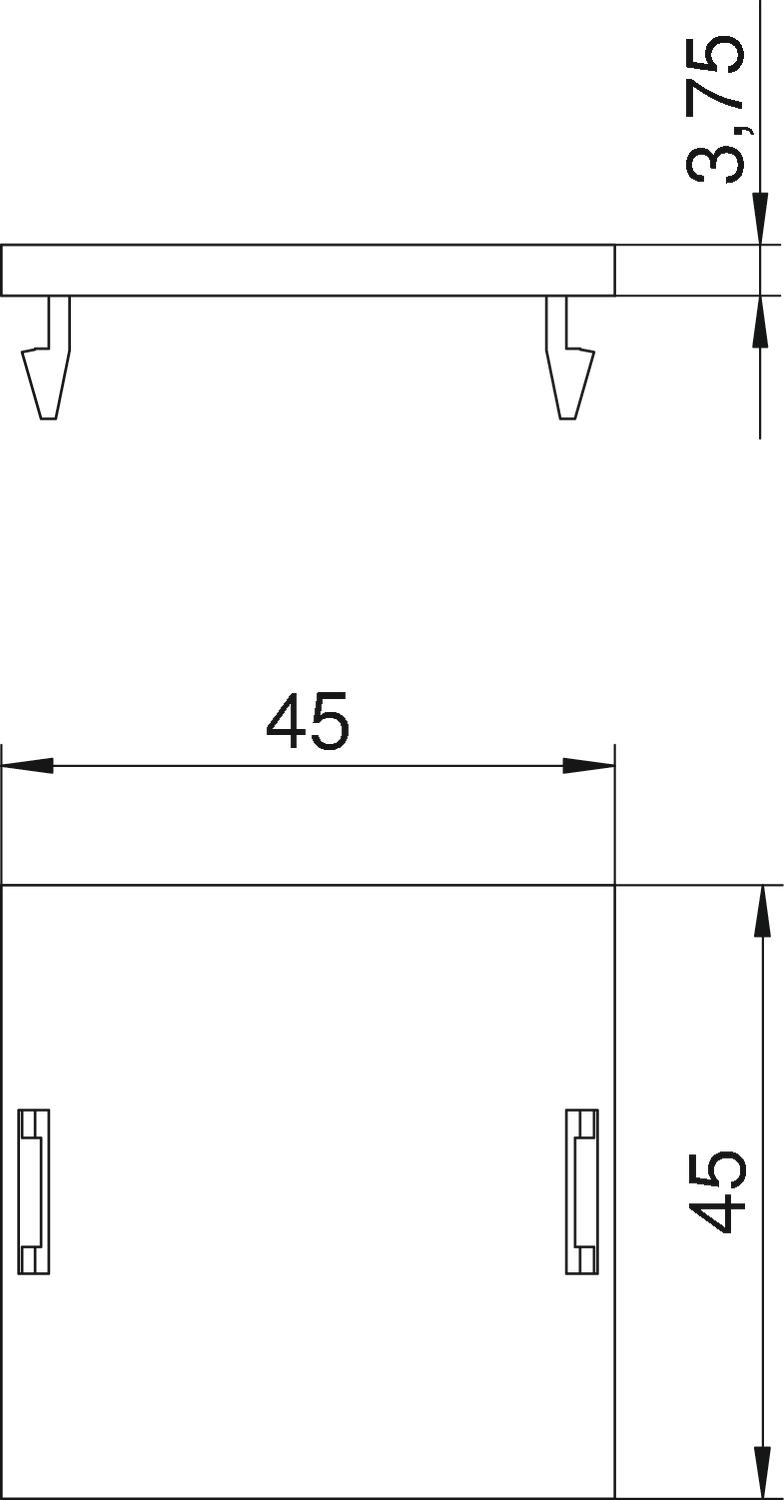

Application Mounting box Blanking lid yes Colour Graphite black; RAL 9011 Device type Blanking cover Fastening type Lockable Height 3,75 mm Installation technology Grid M45 Labelling panel no Length 45 mm Material Polyamide Number of units 1 Strain relief option yes Suitable for labelling panel no Suitable for screed-flush closed underfloor ducts yes Width 45 mm - All types
- Downloads
-
Data sheet LP 45 / 7407584 , 0.14MB , pdfEU declaration of conformity LP 45 / 7407584 , 0.15MB , pdfREACH Declaration of conformity LP 45 / 7407584 , 0.12MB , pdfRoHS Declaration of conformity LP 45 / 7407584 , 0.12MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdf
