Blanking lid

Item no. 7404910 | EAN 4012195101574

Item no. / Types

Length	800 mm

Width

Height

Product description

Product description

On-floor blanking lid to cover AIK on-floor junction trunking, suitable for the AIK/U trunking bases. The trunking lid is screwed tight to the Al side profiles of the trunking base.The lid slope extends beyond the trunking base at a 45° angle.

Technical data

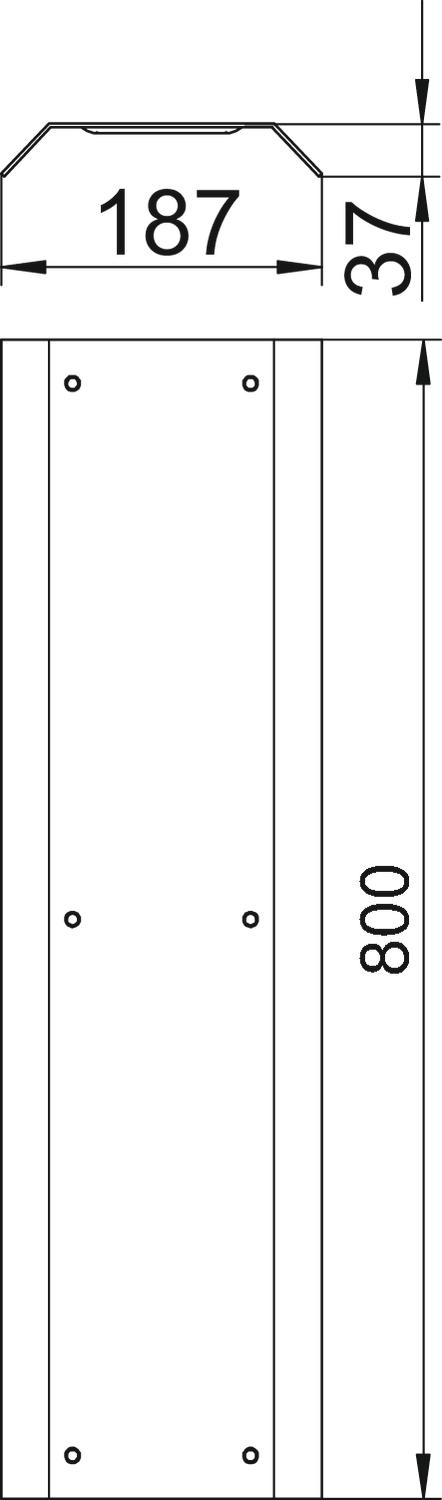

Dimensions

Dimension b	187 mm
Dimension h	37 mm
Function	Standard
Height	40 mm
Length	800 mm
Material	Steel

Mounting opening	Without
Surface	Strip galvanized
Version for	Cover sloping on one side
Width	150 mm
With connection opening	no
With overhang	yes

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
AIKF D 15040	800 mm	150 mm	40 mm	7404910	piece	1 piece
AIKF D 20070	800 mm	200 mm	70 mm	7404928	piece	1 piece
AIKF D 25040	800 mm	250 mm	40 mm	7404932	piece	1 piece
AIKF D 25070	800 mm	250 mm	70 mm	7404944	piece	1 piece
AIKF D 35075	800 mm	350 mm	75 mm	7404948	piece	1 piece
