- Product description
-
Product description

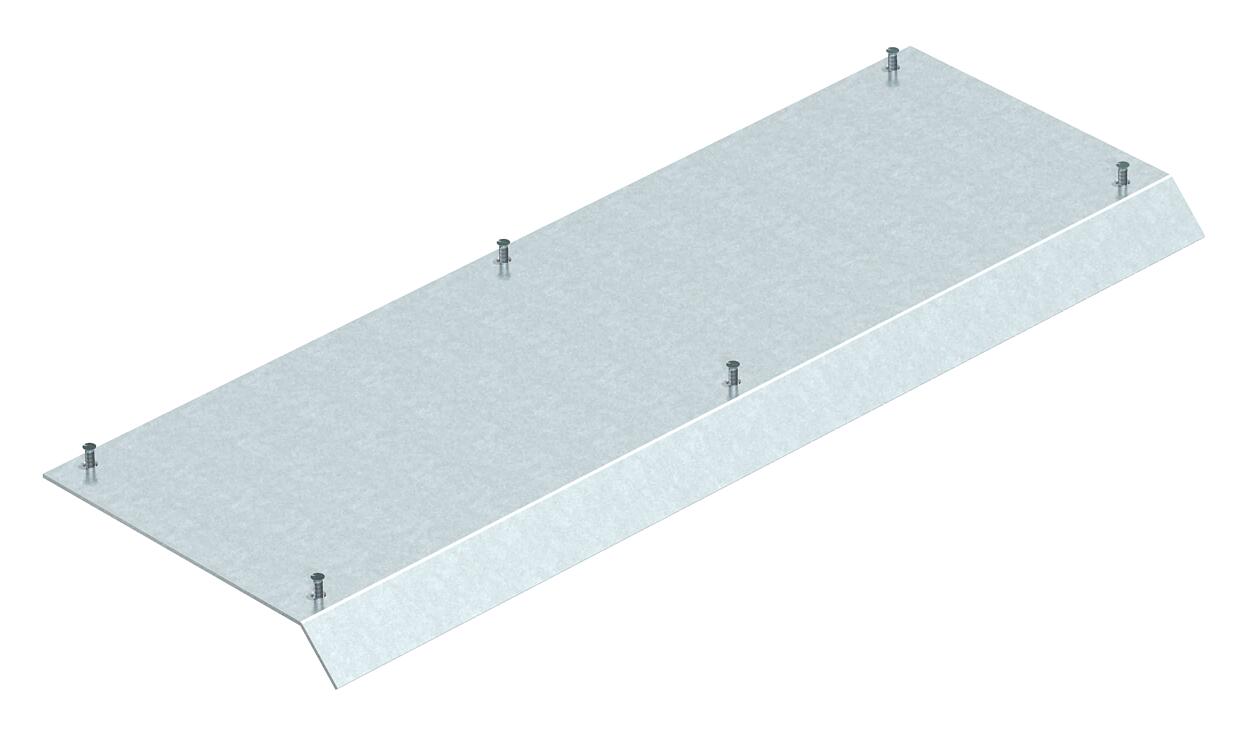

On-floor blanking lid to cover AIK on-floor junction trunking, suitable for the AIK/U trunking bases. The trunking lid is screwed tight to the Al side profiles of the trunking base.The lid slope extends beyond the trunking base at a 45° angle.
-
- Technical data
-
Technical data
Function Standard Material Steel Mounting opening Without Surface Strip galvanized Version for Cover sloping on one side With connection opening no With overhang yes Dimensions

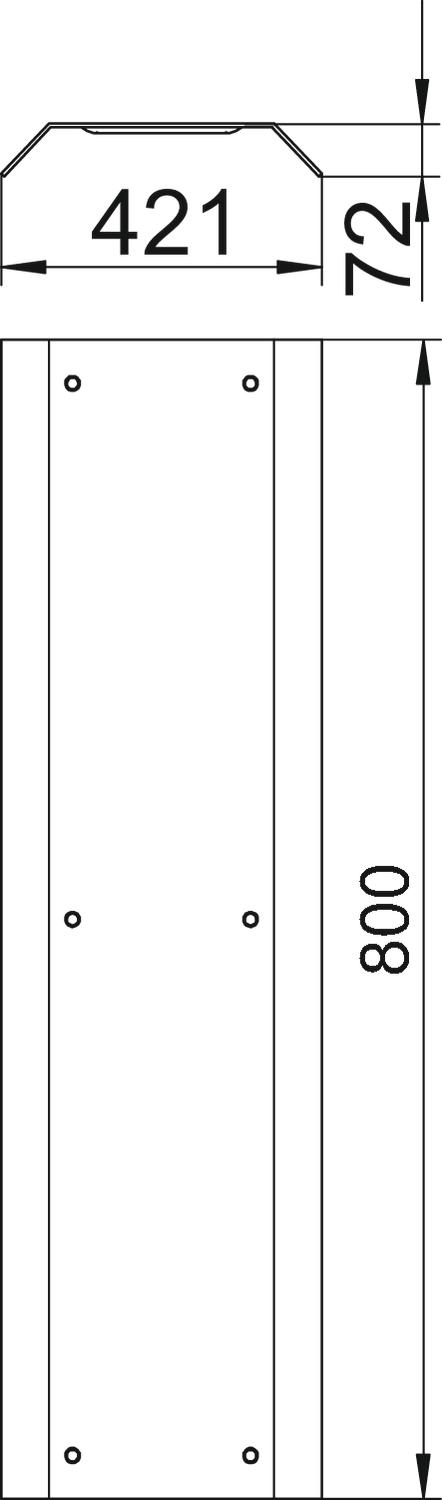

Dimension b 421 mm Dimension h 72 mm Height 75 mm Length 800 mm Width 350 mm - All types
- Downloads
-
Data sheet AIKF D 35075 / 7404948 , 0.23MB , pdfDeclaration of conformity AIKF D 35075 / 7404948 , 0.04MB , pdfLabel approval VDE symbol approval, AIK , 0.18MB , pdf
