Blanking lid, internal corner

Item no. 7405012 | EAN 4012195102106

800 mm
Product description

Product description

Two-part blanking lid for covering the internal corner of on-floor trunking, suitable for all AIK/U trunking bases, including ten fixing screws. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

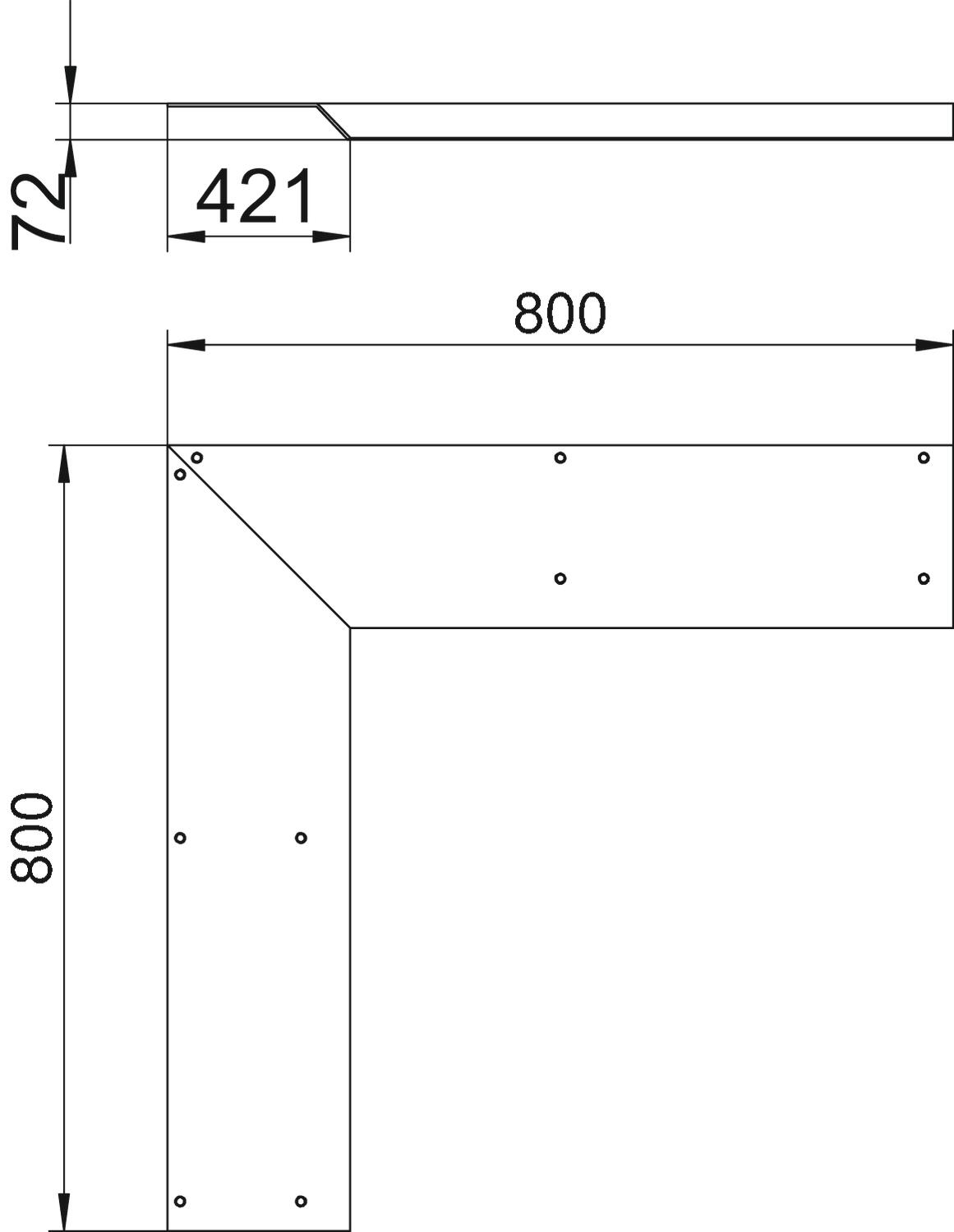

Dimensions

Dimension b 421 mm
Dimension h 72 mm
Function Internal corner
Height 75 mm
Length 800 mm
Material Steel
Mounting opening Without
Surface Strip galvanized
Version for Cover sloping on one side
Width 350 mm
With connection opening no
With overhang yes
All types

All types

Types Length Width Height Item no. Quantity SSU
AIKF IAE 25070 800 mm 250 mm 70 mm 7404992
1 piece
AIKF IEA 15040 800 mm 150 mm 40 mm 7404996
1 piece
AIKF IEA 20070 800 mm 200 mm 70 mm 7405004
1 piece
AIKF IEA 25040 800 mm 250 mm 40 mm 7405008
1 piece
AIKF IEA 35075 800 mm 350 mm 75 mm 7405012
1 piece
