Body-bound rivet, KSN 22
Item no. 6178525 | EAN 4012196337057
- Product description
-
Product descriptionThe KNW2 riveting tool should be used for rapid mounting and for the optimum function. Dimension of the drill hole: 6.5 mm.
Total clamping strength: 2.8 – 6 mm
-
- Technical data
-
Technical data

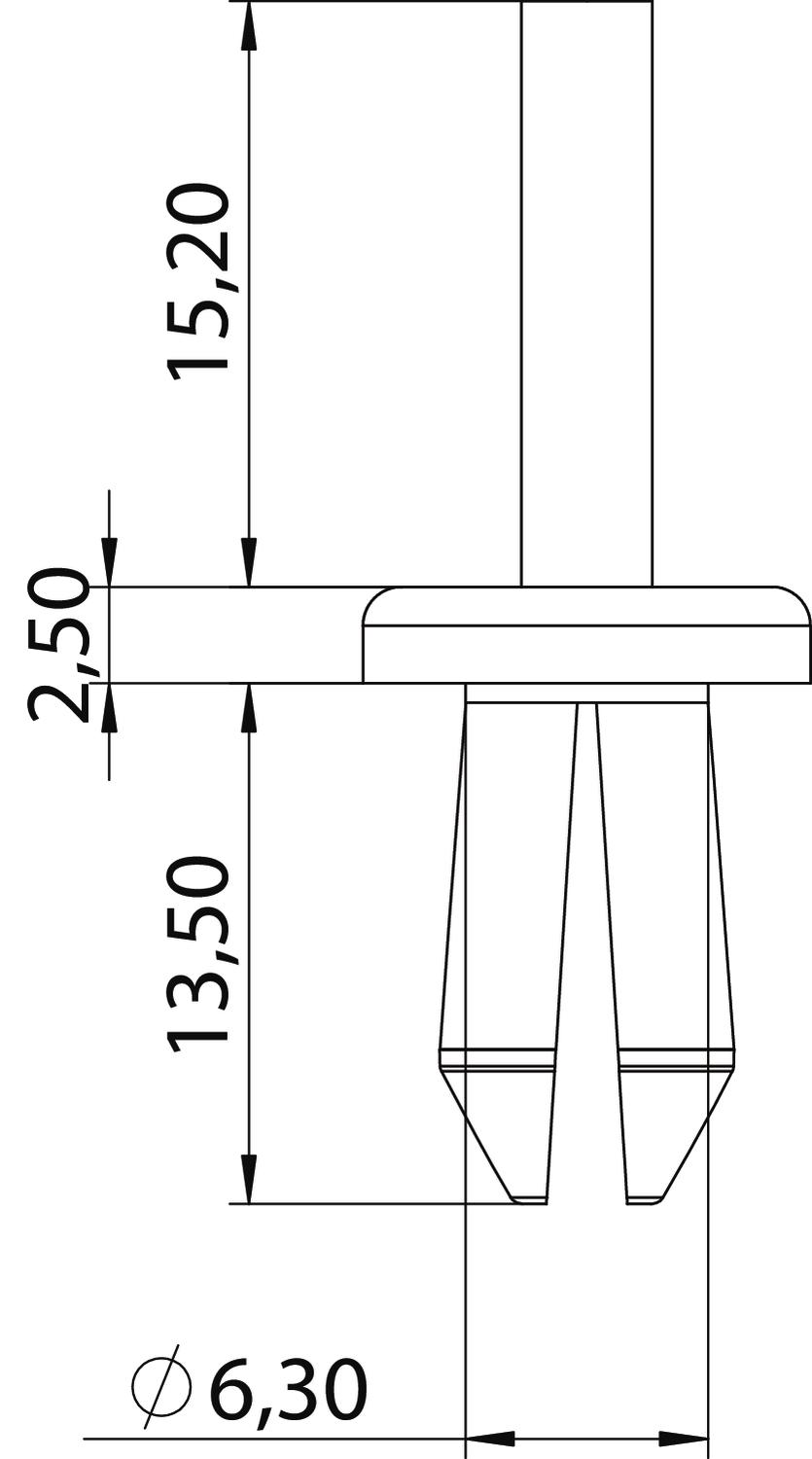

Bore hole diameter 6,5 mm Colour Light grey; RAL 7035 Dimension Ø6,3mm Dimension a 6,3 mm Halogen-free yes Material Polyamide - All types
- Downloads
-
Data sheet KSN22 / 6178525 , 0.17MB , pdfBrochure Wiring trunking , 2.79MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity KSN22 / 6178525 , 0.10MB , pdfREACH Declaration of conformity KSN22 / 6178525 , 0.12MB , pdfRoHS Declaration of conformity KSN22 / 6178525 , 0.12MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdf
