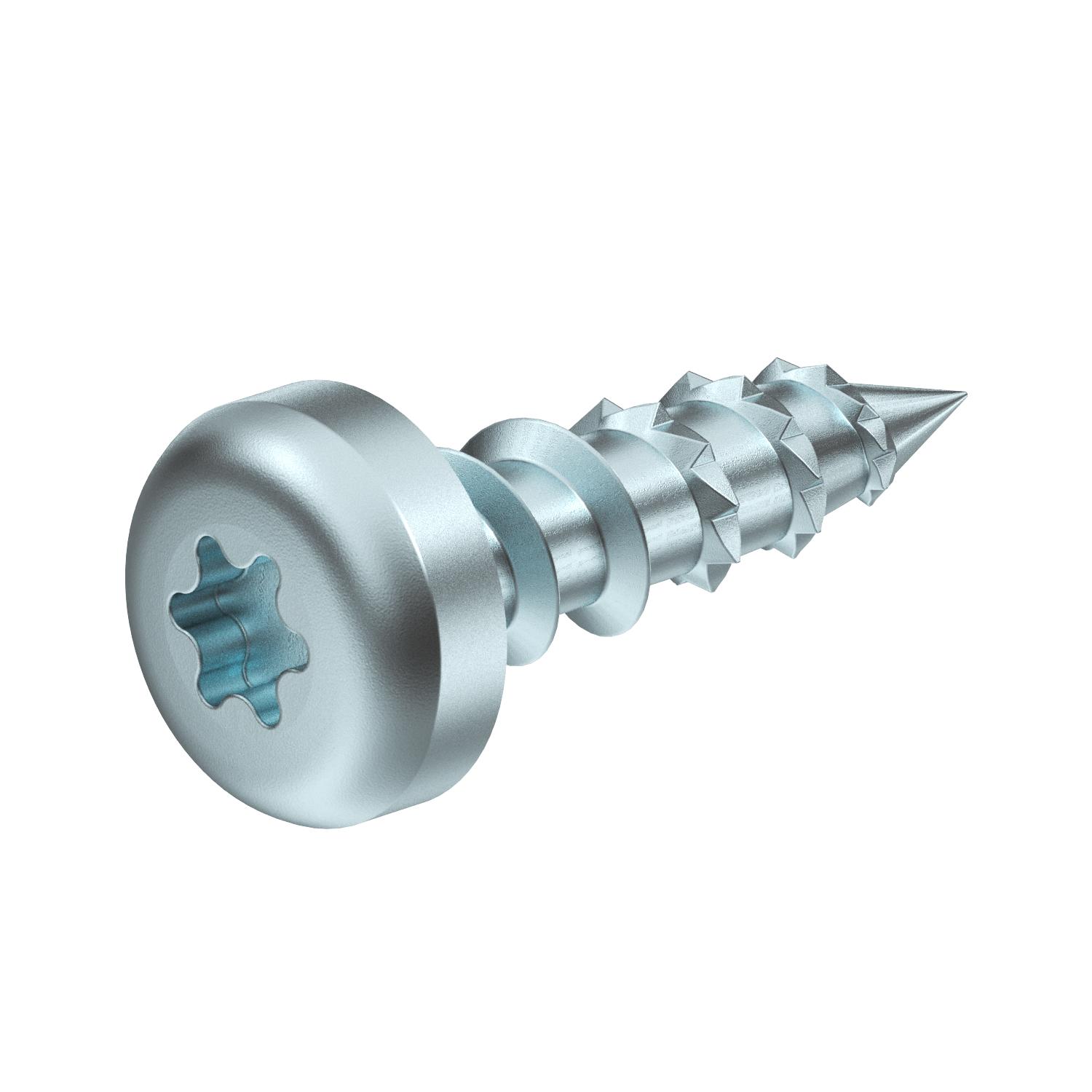

Bolt for cable fastening, KRS 5x20

Item no. 3498098 | EAN 4012195918912

3498098 / KRS 5x20
20 mm
Product description

Product description

Bolt with special milling ribs for PYROLINE® Con D and PYROLINE® Con S fire protection ducts, to fasten cable clips in the duct. Required plate thickness: At least 20 mm.
  • Fire protection duct for wall mounting
  • Fire protection duct for ceiling mounting
  • Fire resistance class I90
  • Function maintenance class E30
Technical data

Technical data

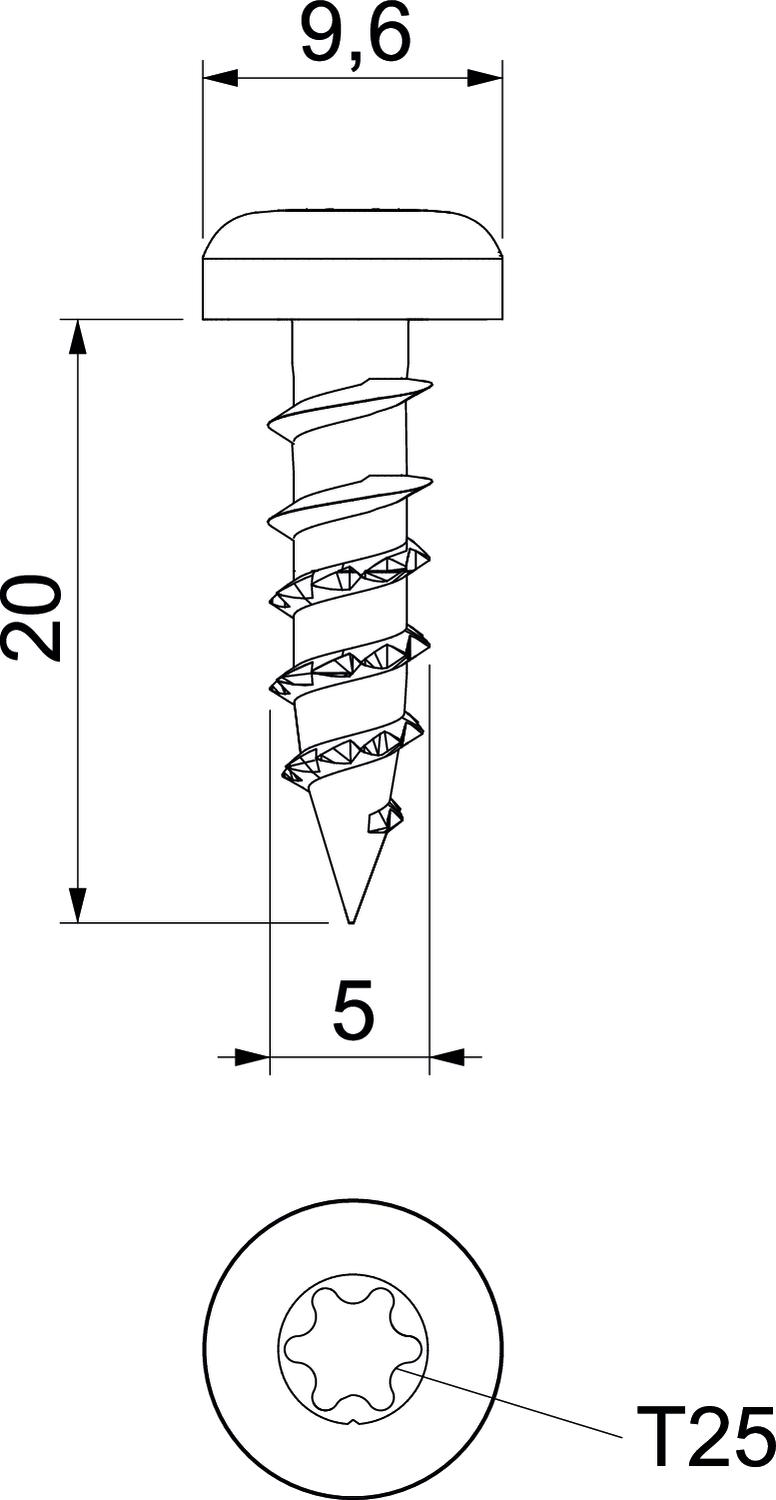

Dimension 5x20
Dimension D 9,6 mm
Dimension d 5 mm
Dimension L 20 mm
Head shape Miscellaneous
Length 20 mm
Material Steel
Screw system Torx
Surface Electrogalvanized, transparently passivated
Thread diameter ST 5
All types

All types

Types Length Item no. Quantity SSU
KRS 5x20 20 mm 3498098
100 piece
