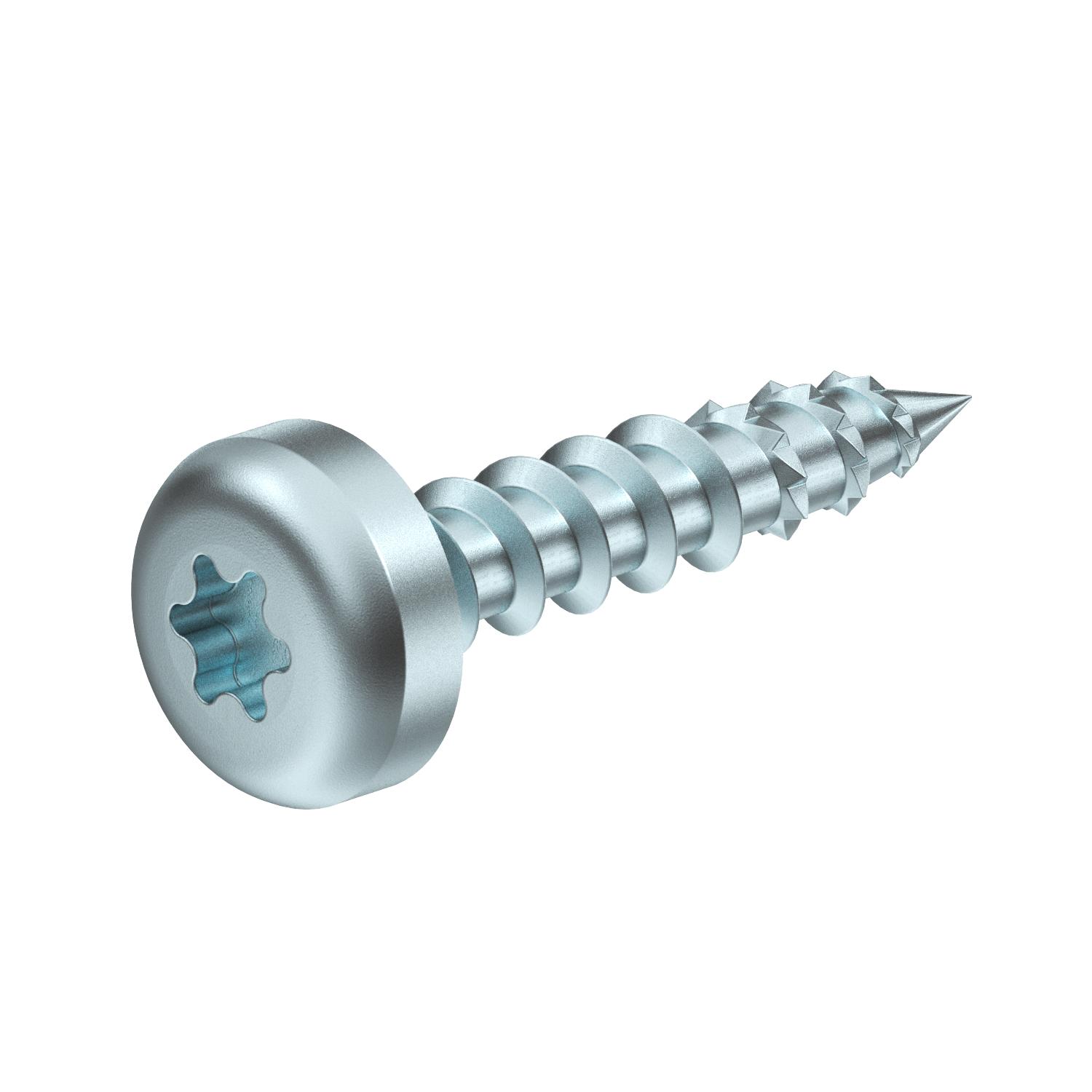

Bolt for separating retainer fastening, KRS 6x30
Item no. 3498100 | EAN 4012195850069
- Product description
-
Product descriptionBolt with special milling ribs for PYROLINE® Con S fire protection ducts, to fasten separating retainers in the duct.
-
- Technical data
-
Technical data

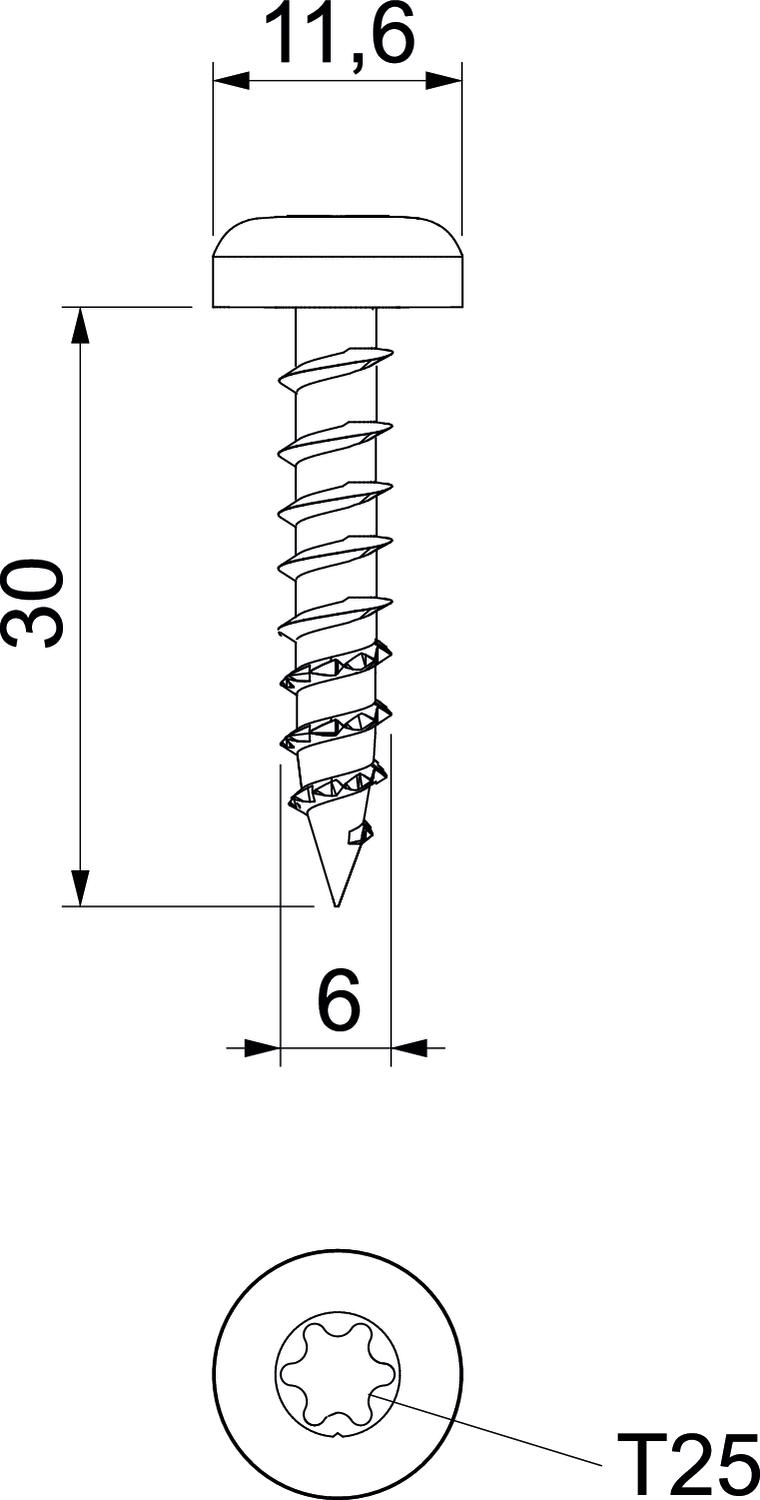

Colour zinc Dimension 6x30 Dimension d 6 mm Dimension D 11,6 mm Dimension L 30 mm Head shape Miscellaneous Material Steel Screw system Torx Surface Electrogalvanized, transparently passivated Thread diameter ST 6 - All types
- Downloads
-
Data sheet KRS 6x30 / 3498100 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
