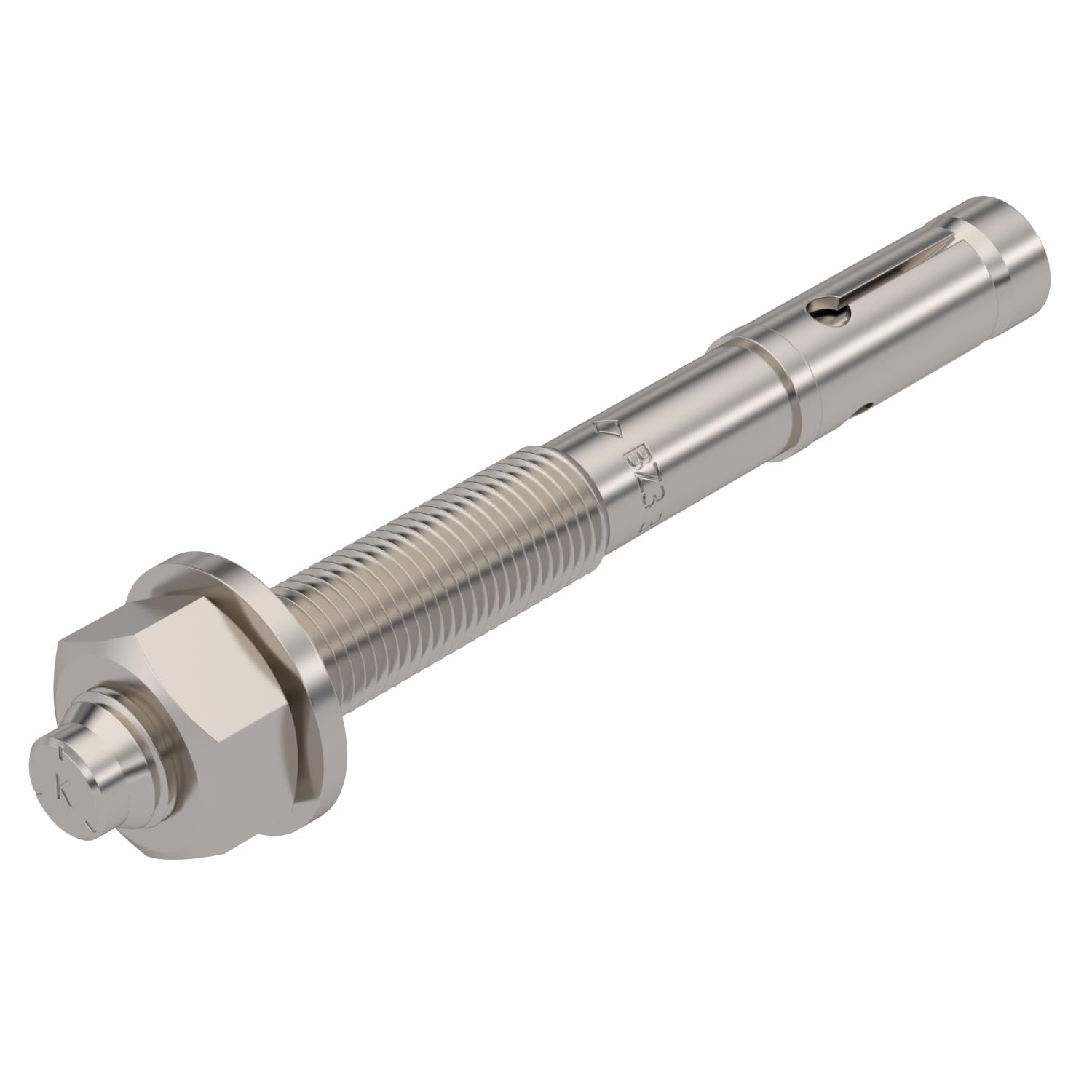

Bolt tie BZ3, A4
Item no. 3498722 | EAN 4012197357153
- Product description
-
Product description
Bolt tie BZ3 for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. Suitable for heavy loads with small edge and axial distances. For knocking in.
European Technical Approval ETA-19/0619, including characteristic values under fire ex-
posure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
Shock approval by the Federal Office for Civil Protection in Bern, Switzerland.
* With large washer to DIN EN ISO 7093-1 (DIN 9021)
-
- Technical data
-
Technical data
Anchor/nail/bolt version Spreading anchor Clamping range, max. 35 mm Clamping strength 35 mm Dimension M12x110 Drill hole depth 83 mm Drill hole diameter, min. 12 mm ETA earthquake rating C1 and C2 Fire protection class to EN 13501-2 Other Material Stainless steel Mounting type, anchor, tie Pre-mounting Surface Bright, treated Thread M12 Thread length 54 mm Thread metric 12 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For knocking in Version, tie External thread WAF 19 Dimensions
Dimension L 110 mm Length 110 mm - All types
- Downloads
-
Data sheet BZ312x110/0-35A4 / 3498722 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity BZ312x110/0-35A4 / 3498722 , 0.17MB , pdfDeclaration of conformity BZ312x110/0-35A4 / 3498722 , 0.29MB , pdfREACH Declaration of conformity BZ312x110/0-35A4 / 3498722 , 0.12MB , pdfRoHS Declaration of conformity BZ312x110/0-35A4 / 3498722 , 0.12MB , pdf
