Bolt tie BZ3, A4
Item no. 3498718 | EAN 4012197357078
- Product description
-

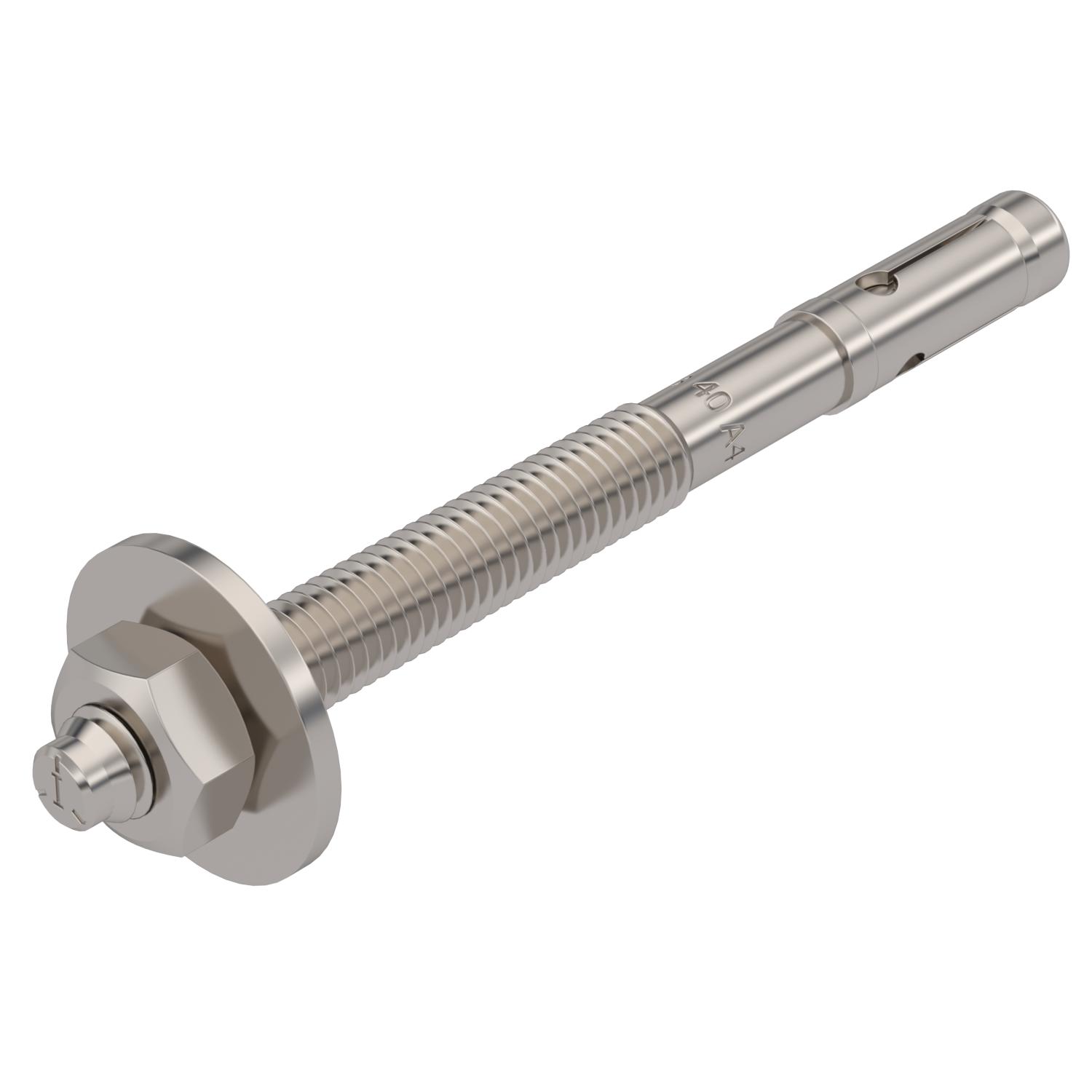

Product descriptionBolt tie BZ3 for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. Suitable for heavy loads with small edge and axial distances. For knocking in.
European Technical Approval ETA-19/0619, including characteristic values under fire ex-
posure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
Shock approval by the Federal Office for Civil Protection in Bern, Switzerland.
* With large washer to DIN EN ISO 7093-1 (DIN 9021)
-
- Technical data
-
Technical data

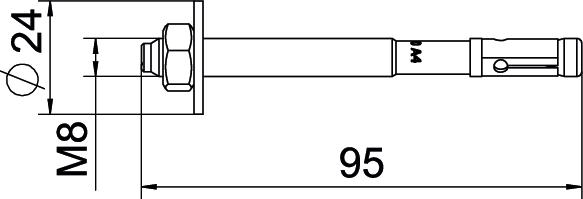

Anchor/nail/bolt version Spreading anchor Clamping range, max. 40 mm Clamping strength 40 mm Colour stainless steel Dimension M8x95 Dimension L 95 mm Drill hole depth 55 mm Drill hole diameter, min. 8 mm ETA earthquake rating C1 and C2 Fire protection class to EN 13501-2 Other Length 95 mm Material Stainless steel Mounting type, anchor, tie Pre-mounting Surface Bright, treated Thread M8 Thread length 53 mm Thread metric 8 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For knocking in Version, tie External thread WAF 13 - All types
