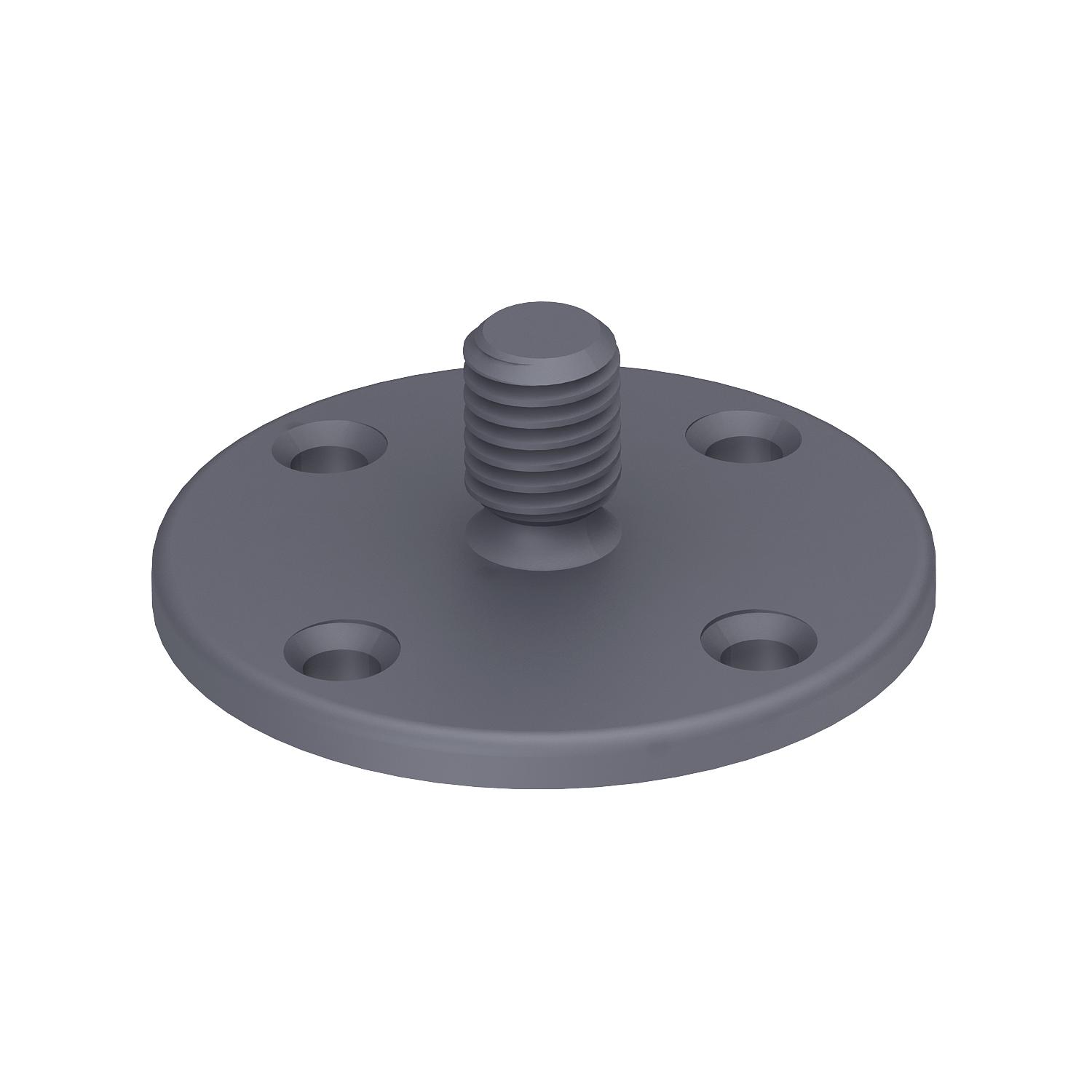

Bonding base

Item no. 5207258 | EAN 4012195404651

5207258 / 194
M8
Product description

Product description

• With threaded stem M8
• For mounting cable supports with M8 female thread
• For bonding to concrete, steel or brickwork
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
Technical data

Technical data

Colour Grey
Dimension M8
Material Polyamide
Thread M8
All types

All types

Types Thread Item no. Quantity SSU
194 M8 5207258
100 piece
