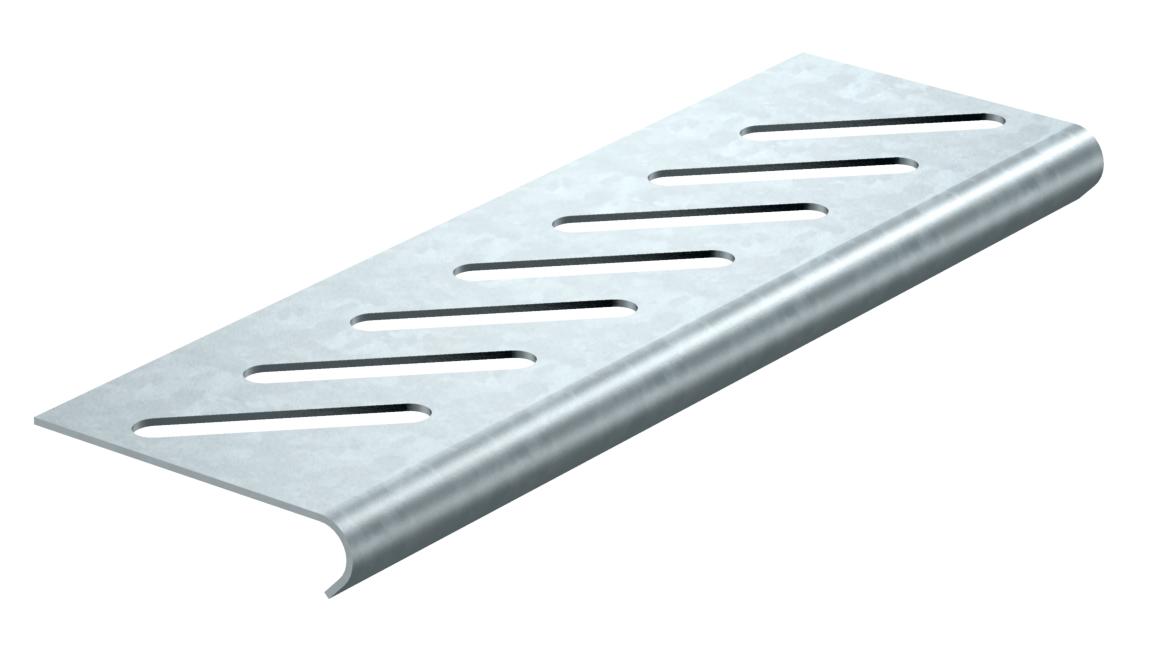

Bottom end plate FS
Item no. 7083106 | EAN 4012196231072
- Product description
-
Product descriptionBottom end plate for floor reinforcement at the ends of the cable tray and as cable protection.
-
- Technical data
-
Technical data

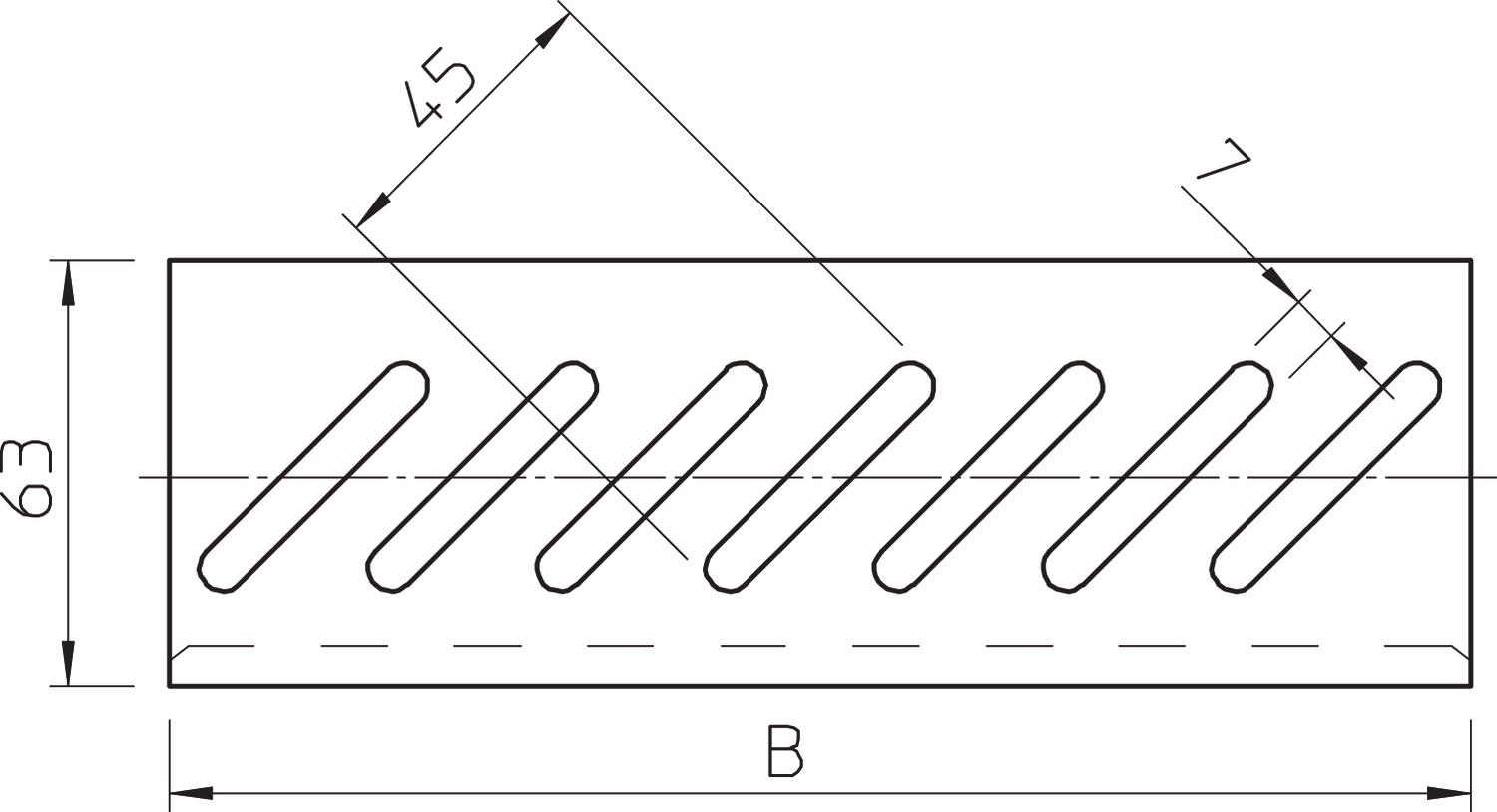

Colour zinc Dimension B100mm Dimension B 100 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Strip galvanized Wide-span version no Width 100 mm Width 4 in - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet BEB 100 FS / 7083106 , 0.14MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BEB 100 FS / 7083106 , 0.10MB , pdfUK Declaration of Conformity BEB 100 FS / 7083106 , 0.14MB , pdfREACH Declaration of conformity BEB 100 FS / 7083106 , 0.12MB , pdfRoHS Declaration of conformity BEB 100 FS / 7083106 , 0.12MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
