Box cover 114 | 114 | 1.5 | White
morepic-1 morepic-2

Box cover

Item no. 2003244 | EAN 4012195024439

White
Product description
Product description
Box cover suitable for the connection sockets, type UV...K, cover edge is flush, surface is roughened, cover bolts can be lowered.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour White

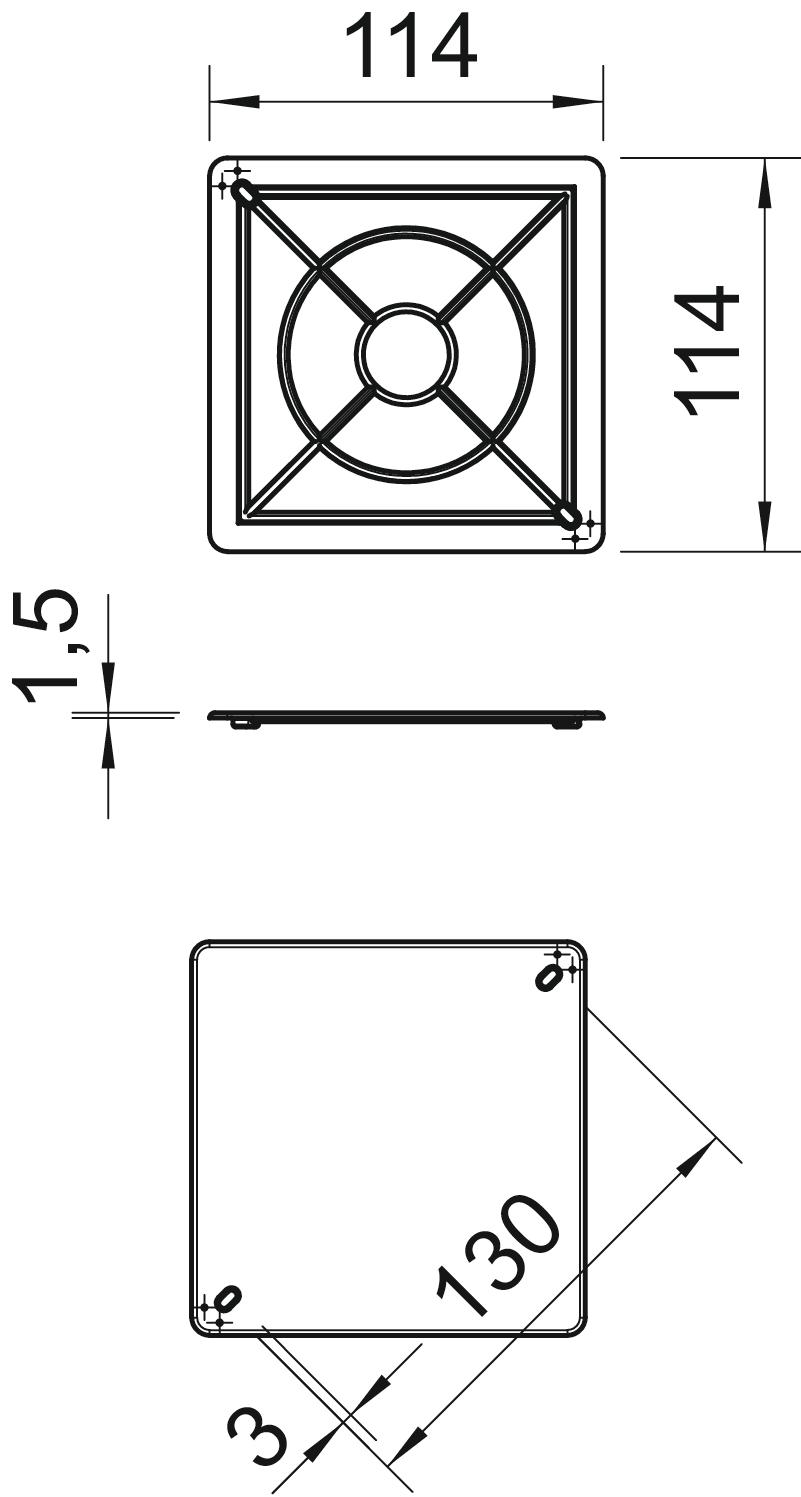

Dimension 114x114x1,5
Dimension A 130 mm
Dimension B 114 mm
Dimension s 1,5 mm
Fastening type Screw-on lid
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free yes
Height 1,5 mm
Length 114 mm
Material Polystyrene
Sealable yes
Shape Square
Width 114 mm
With bolts no
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
UV 80 D 97 mm 97 mm 1.5 mm White 2003240
250 piece
UV 100 D 114 mm 114 mm 1.5 mm White 2003244
240 piece
UV 150 D 170 mm 170 mm 1.75 mm White 2003248
150 piece
UV 200 D 210 mm 210 mm 2 mm White 2003252
50 piece
UV 250 D 260 mm 260 mm 2.5 mm White 2003256
25 piece
