Box cover

Item no. / Types

Length

Width

Height

Colour	White

Product description

Product description

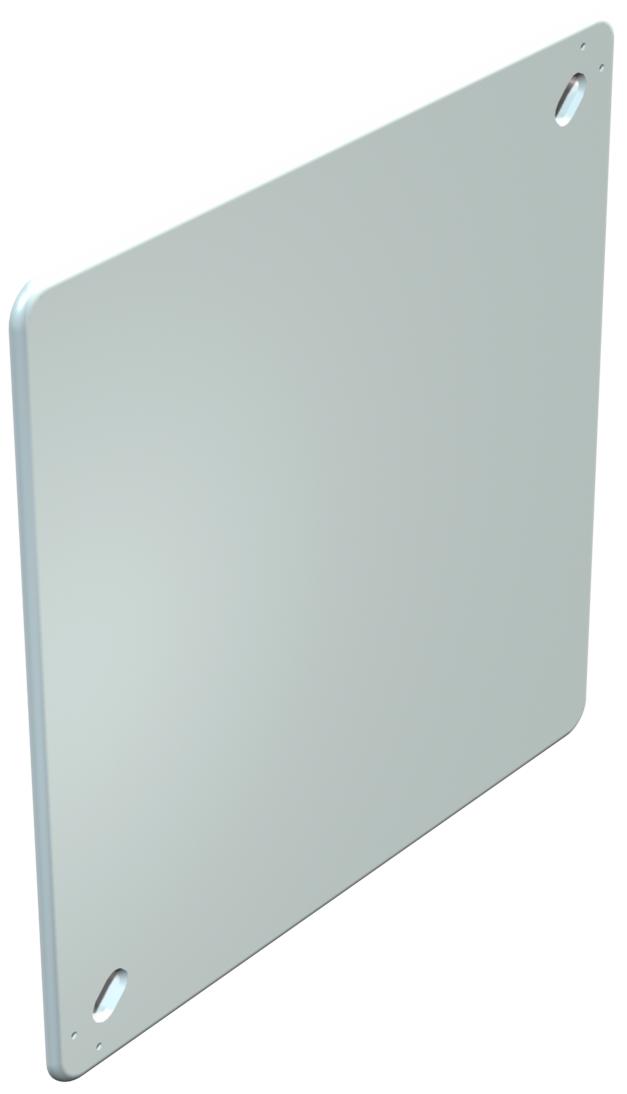

Box cover suitable for the connection sockets, type UV...K, cover edge is flush, surface is roughened, cover bolts can be lowered.

Technical data

Colour	White

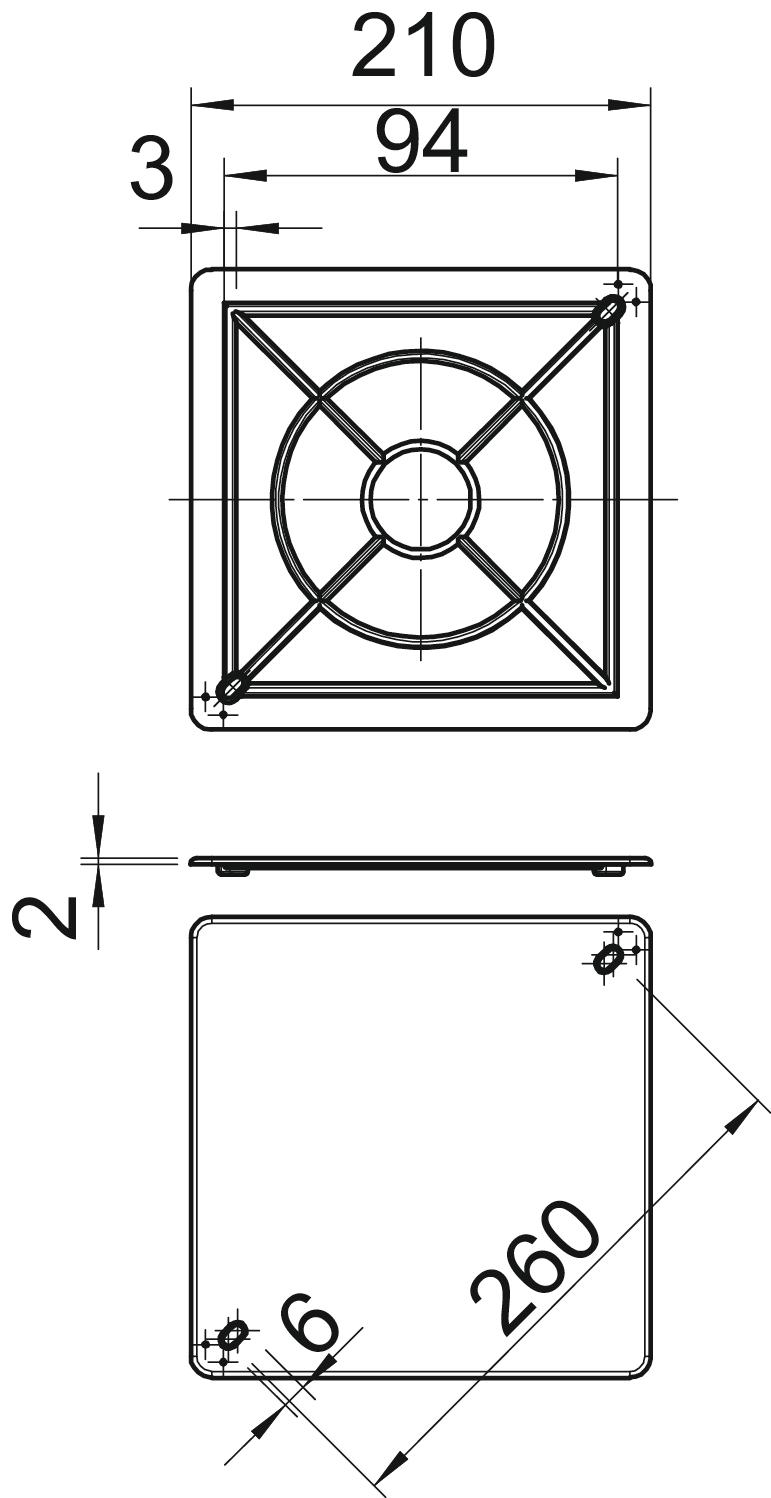

Dimension	210x210x2
Dimension A	260 mm
Dimension B	210 mm
Dimension s	2 mm
Fastening type	Screw-on lid
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free	yes

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
UV 80 D	97 mm	97 mm	1.5 mm	White	2003240	piece	250 piece
UV 100 D	114 mm	114 mm	1.5 mm	White	2003244	piece	240 piece
UV 150 D	170 mm	170 mm	1.75 mm	White	2003248	piece	150 piece
UV 200 D	210 mm	210 mm	2 mm	White	2003252	piece	50 piece
UV 250 D	260 mm	260 mm	2.5 mm	White	2003256	piece	25 piece
