BRA ERD KL earthing clamp
Item no. 6133407 | EAN 4012196723096
- Product description
-

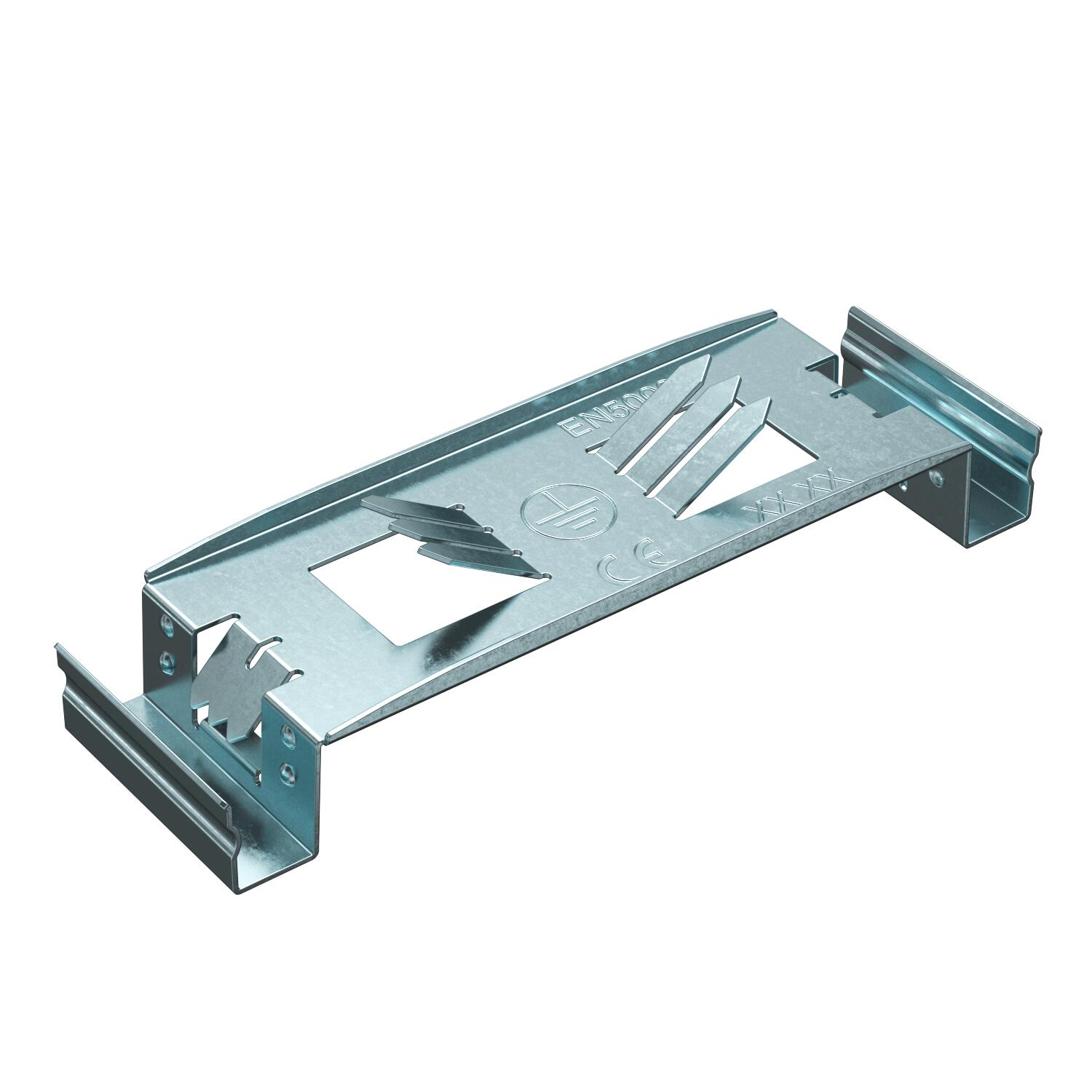

Product descriptionEarthing clamp for the electrical connection between base and cover.
-
- Technical data
-
Technical data

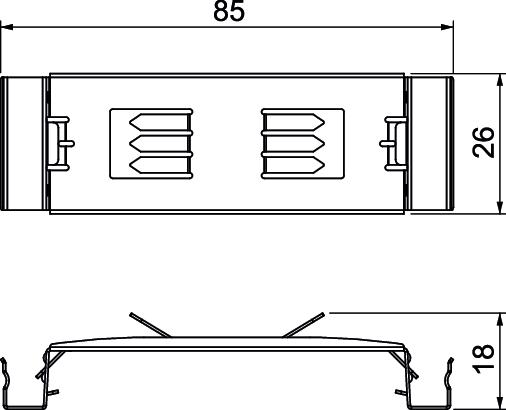

Dimension 85x26x18 Equipotential bonding version, device installation duct Clamp spring Height 18 mm Length 85 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Surface Strip galvanized Width 26 mm - All types
- Downloads
-
Data sheet BRA ERD KL / 6133407 , 0.24MB , pdfLabel approval VDE-Zeichengenehmigung Signa Style , 2.04MB , pdfMounting instructions Geräteeinbaukanal Signa Style , 9.32MB , pdfMounting instructions Erdungsbauteile Signa Style , 1.13MB , pdfNo invitation to tender text is available for this product.
