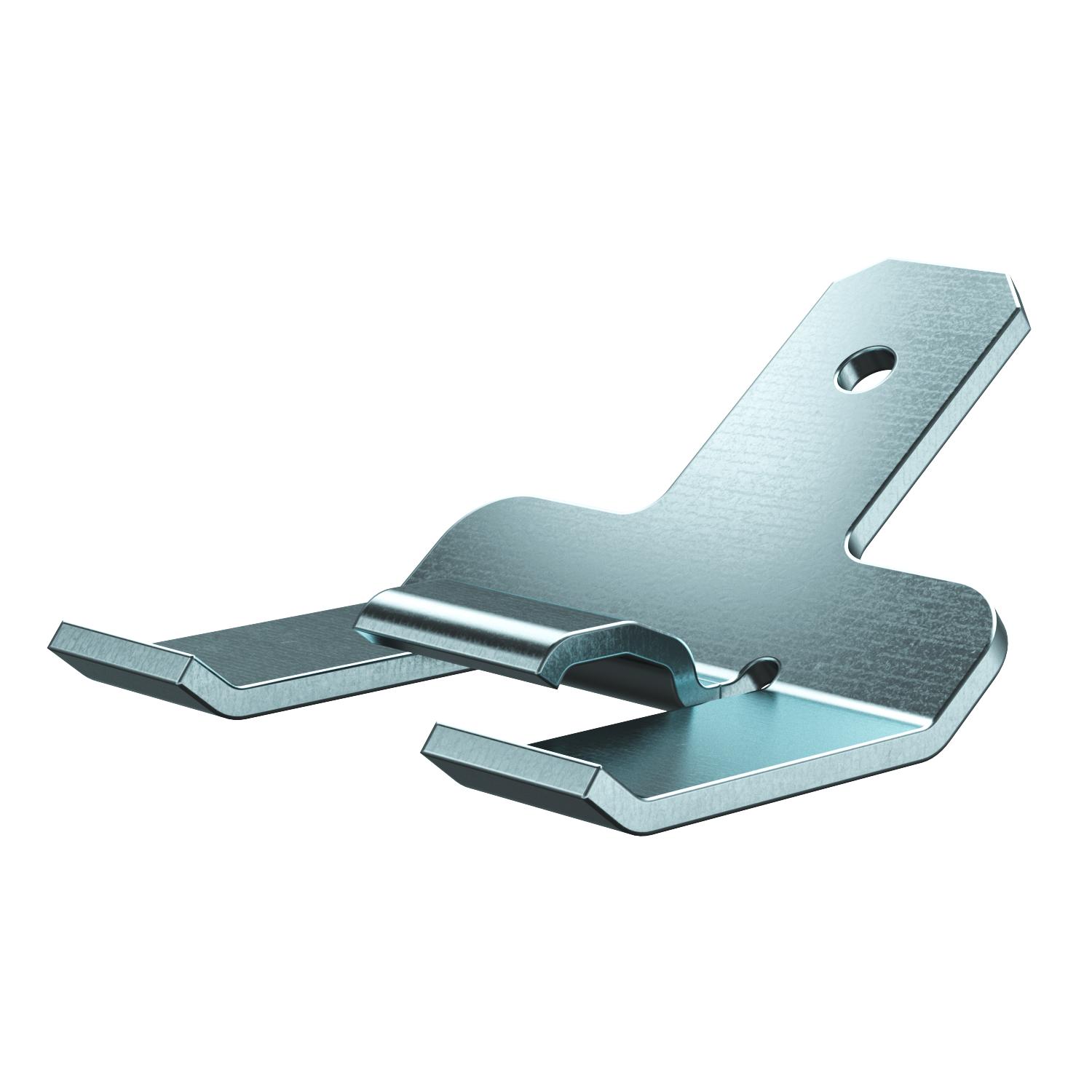

BRA ERD KL TW earthing terminal

Item no. 6133615 | EAN 4012196736522

6133615 / BRA ERD KL TW
77 mm
Product description
Product description
Earthing terminal for the electrical connection between partition and partition, when a jump has to be bridged.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

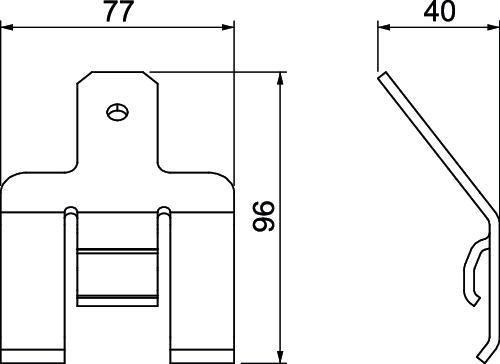

Dimension 77x96x40
Equipotential bonding version, device installation duct Clamp spring
Height 40 mm
Length 77 mm
Material Stainless steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Surface Bright, treated
Width 96 mm
All types

All types

Types Length Item no. Quantity SSU
BRA ERD KL TW 77 mm 6133615
100 piece
Downloads

Download

EU declaration of conformity BRA ERD KL TW / 6133615 , 0.10MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
