BRA ERD KUP earthing coupling
Item no. 6133408 | EAN 4012196723102
- Product description
-
Product description

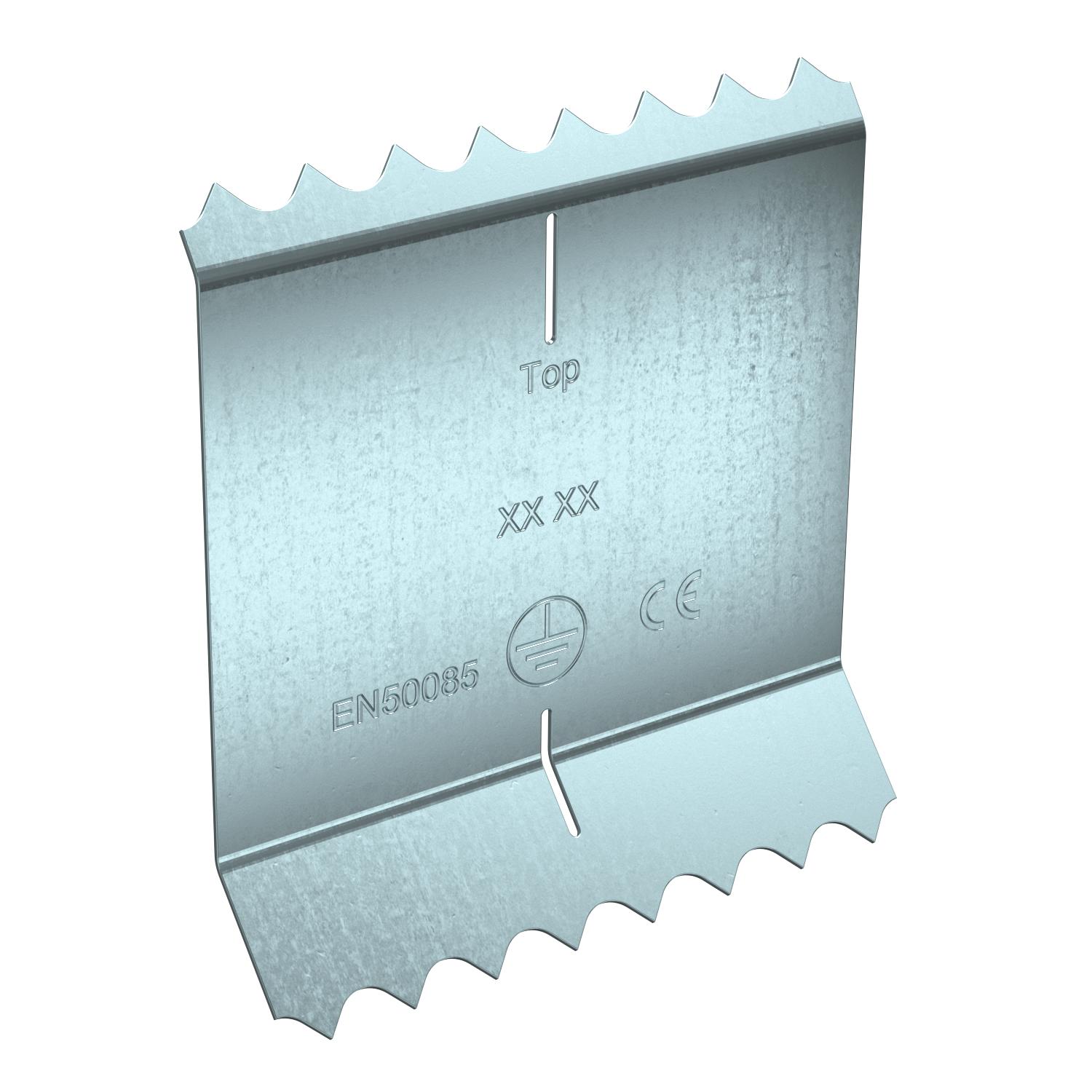

Earthing coupling for the electrical connection between base and base.
-
- Technical data
-
Technical data

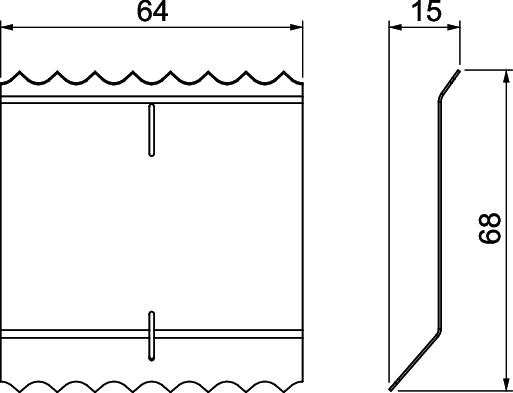

Dimension 64x68 Equipotential bonding version, device installation duct coupling Height 15 mm Length 64 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Surface Strip galvanized Width 68 mm - All types
- Downloads
-
Data sheet BRA ERD KUP / 6133408 , 0.23MB , pdfLabel approval VDE-Zeichengenehmigung Signa Style , 2.04MB , pdfMounting instructions Geräteeinbaukanal Signa Style , 9.32MB , pdfMounting instructions Erdungsbauteile Signa Style , 1.13MB , pdfNo invitation to tender text is available for this product.
