BRA ERD VB TW earthing clip 40

morepic-1

morepic-2

BRA ERD VB TW earthing clip

Item no. 6133562 | EAN 4012196735181

Item no. / Types	6133562 / BRA ERD VB TW

Length	40 mm

Product description

Product description

Earthing clip for the electrical connection between partition and partition.

Technical data

Technical data

Dimension	40x6x4
Equipotential bonding version, device installation duct	Miscellaneous
Material	Steel
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Surface	Strip galvanized

Dimensions

Height	6 mm
Length	40 mm

Width	4 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
BRA ERD VB TW	40 mm	6133562	piece	20 piece

Downloads

Data sheet BRA ERD VB TW / 6133562 , 0.28MB , pdf

Declaration of conformity BRA ERD VB TW / 6133562 , 0.17MB , pdf

Label approval VDE-Zeichengenehmigung Signa Style , 2.04MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Style , 9.32MB , pdf

Mounting instructions Erdungsbauteile Signa Style , 1.13MB , pdf

Download

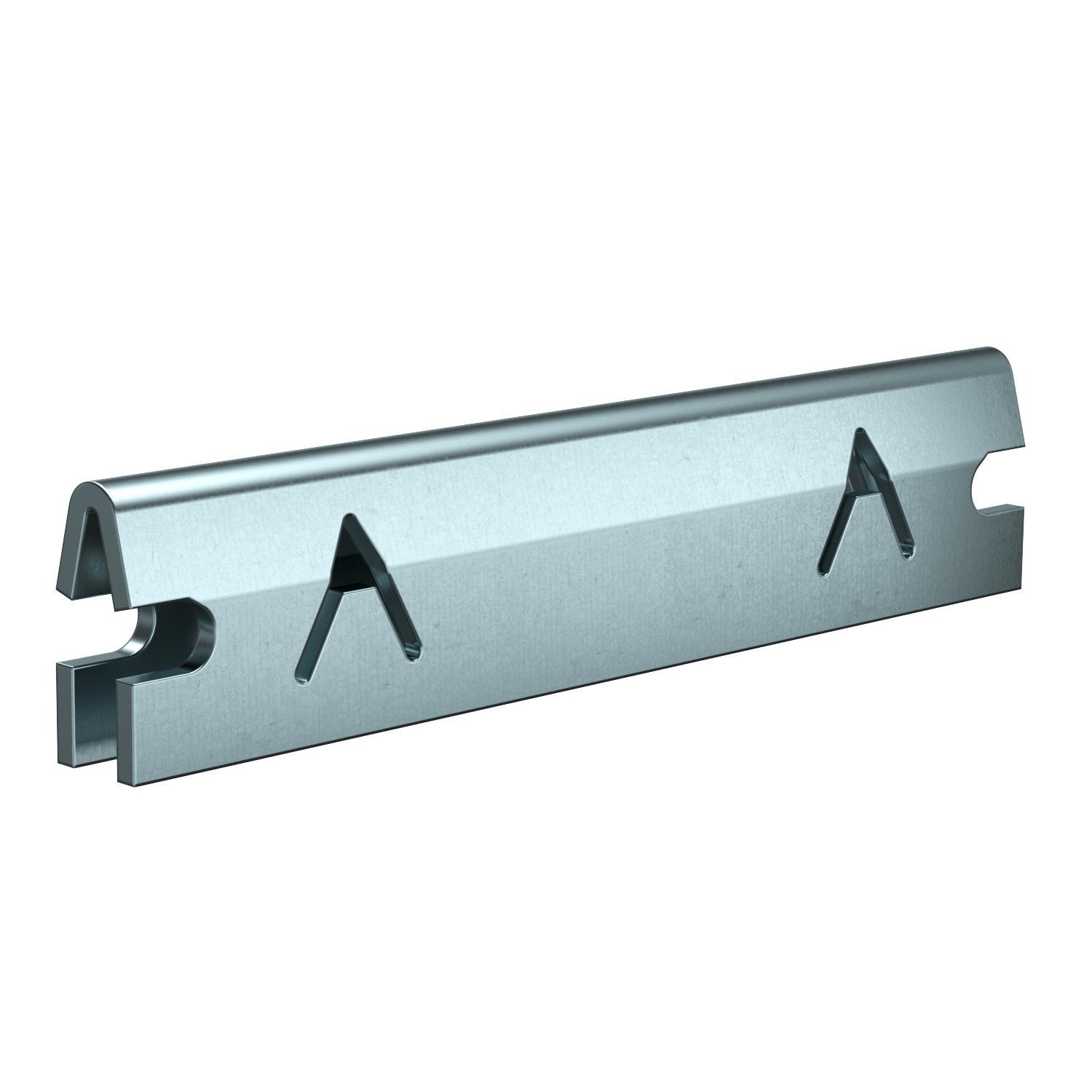

Product graphic BRA ERD VB TW / 6133562, 75.65 kB, jpg

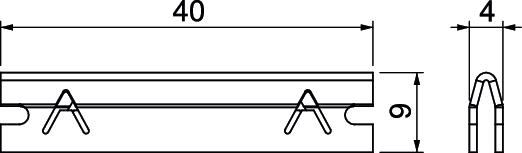

Scale drawing BRA ERD VB TW / 6133562, 12.17 kB, jpg

No invitation to tender text is available for this product.
